Unofficial File parts/30357.dat
Part Attributes:
File Header:

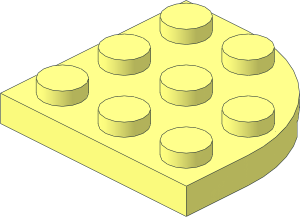

0 Plate 3 x 3 with 2 x 2 Corner Round
0 Name: 30357.dat
0 Author: Vincent Messenet [Cheenzo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Brickowl 796965
0 !HISTORY 2026-01-02 [Cheenzo] Complete Re-Write Original by Karim Nassar
Show contents
1 16 30 0 30 0 0 -1 0 1 0 1 0 0 s\7904s01.dat
1 16 30 0 30 1 0 0 0 1 0 0 0 -1 s\7904s01.dat
1 16 20 4 20 -1 0 0 0 -1 0 0 0 1 stug4-2x2.dat
1 16 0 0 20 1 0 0 0 1 0 0 0 1 stug-3x1.dat
1 16 20 0 20 1 0 0 0 1 0 0 0 1 stug-3x1.dat
1 16 40 0 10 1 0 0 0 1 0 0 0 1 stug-2x1.dat
1 16 20 4 20 0 0 -30 4 0 0 0 -30 0 box2-5.dat
0 BFC INVERTNEXT
1 16 20 6 20 0 0 -26 2 0 0 0 -26 0 box2-5.dat
4 16 -10 0 50 -10 0 -10 38.284 0 38.284 10 0 50
4 16 50 0 10 38.284 0 38.284 -10 0 -10 50 0 -10
4 16 -10 8 50 -6 8 46 -6 8 -6 -10 8 -10
4 16 -6 8 -6 46 8 -6 50 8 -10 -10 8 -10
4 16 10 8 50 14 8 46 -6 8 46 -10 8 50
4 16 50 8 10 50 8 -10 46 8 -6 46 8 14
1 16 0 4 50 10 0 0 0 0 4 0 -1 0 rect2p.dat
1 16 50 4 0 0 -1 0 0 0 4 10 0 0 rect2p.dat
1 16 4 6 46 10 0 0 0 0 2 0 1 0 rect2p.dat
1 16 46 6 4 0 1 0 0 0 2 10 0 0 rect2p.dat
4 16 38.284 4 38.284 46 4 14 46 4 -6 -6 4 -6
4 16 -6 4 46 14 4 46 38.284 4 38.284 -6 4 -6
Status:
Needs 1 More Vote (CF)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
| User | Vote |
|---|---|
| Blechtaler | Certify |
Official parents and subparts
Part Events:
Archived Part Events:
2026-01-02 11:40:16
could use stugs for both top(2x3+1x2)+bottom(2x2)
2026-01-02 11:58:22
Final touch (hopefully^^)
2026-01-02 14:25:34
Creative Commons Attribution License information
This part is copyright © Vincent Messenet
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Did not change the origin and orientation but it could benefit to be aligned with 7904 and 30565, in that case, should be renumbered to 30357b and 30357 obsoletized
