Unofficial File parts/s/7885s01.dat
File Header:

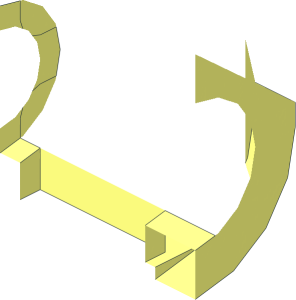

0 ~Car Base 2 x 6 with Bottom Axle Holes - Qarter Axle Hole
0 Name: s\7885s01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // axlehole end and cutout
1 16 .5 10 0 0 -1 0 2 0 0 0 0 2 2-4ring2.dat
0 BFC INVERTNEXT
1 16 8.75 17.5 0 0 0 6.25 -1.5 0 0 0 2 0 box3u7a.dat
1 16 1.5 15.80115 1 1 0 0 0 1 -.19885 0 0 1 rect3.dat
1 16 17.5 15.80115 1 2.5 0 0 0 1 -.19885 0 0 1 rect3.dat
1 16 8.75 15.80115 2 0 0 6.25 .19885 0 0 0 1 0 rect2p.dat
5 24 20 16 0 15 16 0 20 15.6023 2 20 16 -1
5 24 .5 16 0 2.5 16 0 .5 15.6023 2 0 16 -1
2 24 .5 6 2 .5 6.7951 2.265
2 24 .5 6 2 .5 4.3977 2
2 24 .5 8 4 .5 8 5.6023
2 24 .5 7.735 3.2049 .5 8 4
2 24 .5 12 5.6023 .5 10 6
2 24 .5 12 5.6023 .5 12 4
2 24 .5 8 5.6023 .5 10 6
2 24 .5 15.6023 2 .5 14 2
2 24 .5 13.2049 2.265 .5 14 2
2 24 .5 4 0 .5 4.3977 2
2 24 .5 12.265 3.2049 .5 12 4
3 16 2.5 16 0 2.5 16 2 2.5 15.6023 2
3 16 15 16 2 15 16 0 15 15.6023 2
0 // connector to outside
4 16 20 19.239 3.827 20 15.6023 2 20 16 0 20 20 0
3 16 20 15.6023 2 20 19.239 3.827 20 15.5432 2.2961
4 16 20 14.2428 4.2427 20 15.5432 2.2961 20 19.239 3.827 20 17.071 7.071
4 16 20 12.2961 5.5433 20 14.2428 4.2427 20 17.071 7.071 20 13.827 9.239
3 16 20 12.2961 5.5433 20 13.827 9.239 20 12 5.6023
4 16 20 10 6 20 12 5.6023 20 13.827 9.239 20 10 10
4 16 20 10 6 20 10 10 20 8 10 20 8 5.6023
3 16 20 8 5.6023 20 8 10 20 7.7039 5.5433
3 16 20 7.7039 5.5433 20 8 10 20 5.7573 4.2428
4 16 20 8 10 20 0 0 20 4.4567 2.2961 20 5.7573 4.2428
3 16 20 4.4567 2.2961 20 0 0 20 4.3977 2
3 16 20 4.3977 2 20 0 0 20 4 0
0 // outside (inlined cylo)
2 24 20 13.827 9.239 20 17.071 7.071
2 24 20 17.071 7.071 20 19.239 3.827
1 16 18 11.9135 9.6195 0 0 2 1.9135 0 0 -.3805 -1 0 rect2p.dat
5 24 20 10 10 16 10 10 20 13.827 9.239 20 8 10
5 24 20 13.827 9.239 16 13.827 9.239 20 17.071 7.071 20 10 10
1 16 18 19.6195 1.9135 0 0 2 .3805 -1 0 -1.9135 0 0 rect2p.dat
5 24 20 19.239 3.827 16 19.239 3.827 20 20 0 20 17.071 7.071
5 24 20 20 0 16 20 0 20 19.239 3.827 20 20 -1
0 // rear connectors
4 16 16 14.1846 9 16 13.827 9.239 20 13.827 9.239 20 17.071 7.071
4 16 16 19 4.1846 20 17.071 7.071 20 19.239 3.827 16 19.239 3.827
2 24 16 13.827 9.239 16 14.1846 9
2 24 16 19 4.1846 16 19.239 3.827
2 24 16 19 0 16 19 4.1846
4 16 16 20 0 16 19 0 16 19 4.1846 16 19.239 3.827
1 16 18 9 10 2 0 0 0 0 -1 0 -1 0 rect3.dat
4 16 16 10 10 16 13.827 9.239 16 14.1846 9 16 8 10
3 16 16 8 10 16 14.1846 9 16 4 9
4 16 16 19 0 15 19 0 15 19 2 16 19 4.1846
3 16 16 19 4.1846 15 19 2 2.5 19 2
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
This part has the following warnings
- Decimal precision exceeds normal specification for part type
Current Votes:
None
Official parents and subparts
Part Events:
2026-01-04 00:59:56
2026-01-04 09:35:43
As axlehol4 contains an adapter ring, it would be better to use ndises instead of direct quads (but I can live with current solution!)
Creative Commons Attribution License information
This part is copyright © Rene Rechthaler
Licensed under CC BY 4.0
