Unofficial File parts/7712.dat
Part Attributes:
File Header:

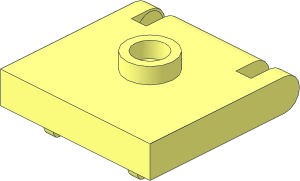

0 Container Box 2 x 2 x 1.333 Lid with Hollow Stud
0 Name: 7712.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Container
0 !KEYWORDS Brickowl 456610
Show contents
0 // Bottom
4 16 -16 4 -32 16 4 -32 20 4 -36 -20 4 -36
4 16 20 4 -36 16 4 -32 16 4 0 20 4 0
4 16 -16 4 0 -16 4 -32 -20 4 -36 -20 4 0
1 16 0 1.5 -32 0 0 16 -2.5 0 0 0 -1 0 rect.dat
3 16 16 -1 -5 16 -1 -32 12 -1 -5
4 16 -16 -1 -32 -12 -1 -5 12 -1 -5 16 -1 -32
3 16 -12 -1 -5 -16 -1 -32 -16 -1 -5
2 24 -16 -1 -5 -16 -1 -32
2 24 16 -1 -32 16 -1 -5
1 16 0 0 -5 0 0 12 1 0 0 0 1 0 rect.dat
4 16 12 1 4 12 1 -5 8 1 -2 8 1 0
4 16 12 1 4 8 1 0 -8 1 0 -12 1 4
4 16 -12 1 4 -8 1 0 -8 1 -2 -12 1 -5
4 16 -8 1 -2 8 1 -2 12 1 -5 -12 1 -5
0 BFC INVERTNEXT
1 16 0 1 -1 8 0 0 0 -3 0 0 0 1 box5.dat
0 // Holders
1 16 20 0 0 0 -4 0 4 0 0 0 0 4 2-4cylo.dat
1 16 20 0 0 0 -1 0 4 0 0 0 0 4 2-4chrd.dat
1 16 16 0 0 0 1 0 .5 0 0 0 0 .5 2-4ring7.dat
1 16 16 0 0 0 1 0 3.5 0 0 0 0 -3.5 2-4ndis.dat
1 16 16 0 0 0 1 0 3.5 0 0 0 0 -3.5 bump5000.dat
4 16 16 3.5 -3.5 16 3.5 0 16 4 0 16 4 -32
4 16 16 -4 0 16 -3.5 0 16 -3.5 -3.5 16 -4 -5
4 16 16 -4 -5 16 -3.5 -3.5 16 0 -3.5 16 -1 -5
3 16 16 4 -32 16 -1 -32 16 -1 -5
4 16 16 -1 -5 16 0 -3.5 16 3.5 -3.5 16 4 -32
4 16 16 -4 0 16 -4 -5 20 -4 -36 20 -4 0
2 24 16 4 0 16 4 -32
2 24 20 -4 0 20 -4 -36
2 24 16 -4 -5 16 -4 0
1 16 14 -2.5 -5 2 0 0 0 0 1.5 0 -1 0 rect.dat
4 16 12 -4 -5 12 -1 -5 12 0 4 12 -4 0
4 16 12 -1 -5 12 1 -5 12 1 4 12 0 4
1 16 12 0 0 0 -1 0 -4 0 0 0 0 4 1-4chrd.dat
2 24 12 1 -5 12 1 4
2 24 12 -4 -5 12 -4 0
1 16 -20 0 0 0 4 0 4 0 0 0 0 4 2-4cylo.dat
1 16 -20 0 0 0 1 0 4 0 0 0 0 4 2-4chrd.dat
1 16 -16 0 0 0 -1 0 .5 0 0 0 0 .5 2-4ring7.dat
1 16 -16 0 0 0 -1 0 3.5 0 0 0 0 -3.5 2-4ndis.dat
1 16 -16 0 0 0 -1 0 3.5 0 0 0 0 -3.5 bump5000.dat
4 16 -16 4 0 -16 3.5 0 -16 3.5 -3.5 -16 4 -32
4 16 -16 -3.5 -3.5 -16 -3.5 0 -16 -4 0 -16 -4 -5
4 16 -16 0 -3.5 -16 -3.5 -3.5 -16 -4 -5 -16 -1 -5
3 16 -16 -1 -32 -16 4 -32 -16 -1 -5
4 16 -16 3.5 -3.5 -16 0 -3.5 -16 -1 -5 -16 4 -32
4 16 -20 -4 -36 -16 -4 -5 -16 -4 0 -20 -4 0
2 24 -16 4 -32 -16 4 0
2 24 -20 -4 -36 -20 -4 0
2 24 -16 -4 0 -16 -4 -5
1 16 -14 -2.5 -5 -2 0 0 0 0 1.5 0 -1 0 rect.dat
4 16 -12 0 4 -12 -1 -5 -12 -4 -5 -12 -4 0
4 16 -12 1 4 -12 1 -5 -12 -1 -5 -12 0 4
1 16 -12 0 0 0 1 0 -4 0 0 0 0 4 1-4chrd.dat
2 24 -12 1 4 -12 1 -5
2 24 -12 -4 0 -12 -4 -5
0 // Outside
1 16 12 0 0 0 -24 0 -4 0 0 0 0 4 1-4cylo.dat
1 16 0 .5 4 12 0 0 0 0 .5 0 -1 0 rect3.dat
1 16 0 0 0 0 0 20 -4 0 0 0 -36 0 box3u4a.dat
3 16 16 -4 -5 12 -4 -5 20 -4 -36
4 16 -12 -4 -5 -20 -4 -36 20 -4 -36 12 -4 -5
3 16 -20 -4 -36 -12 -4 -5 -16 -4 -5
4 16 -12 -4 0 -12 -4 -5 12 -4 -5 12 -4 0
1 16 0 -4 -16 1 0 0 0 1 0 0 0 1 stud2.dat
0 // Clips
1 16 11.25 3.375 -26 -1.25 0 0 0 0 -4.375 0 -1 0 rect3.dat
1 16 10 7.75 -27.25 0 2.5 0 1.25 0 0 0 0 1.25 1-4cylo.dat
1 16 11.25 9 -28.9321 0 0 -1.25 0 -1 0 -1.6821 0 0 rect2p.dat
1 16 10 6 -30.6142 0 2.5 0 3 0 0 0 0 -1.5 3-16cylo.dat
4 16 10 7.1481 -32 12.5 7.1481 -32 12.5 4 -32 10 4 -32
5 24 12.5 7.1481 -32 10 7.1481 -32 12.5 8.1213 -31.6749 12.5 6 -32.2378
2 24 12.5 7.1481 -32 12.5 4 -32
2 24 10 7.1481 -32 10 4 -32
2 24 12.5 7.1481 -32 10 7.1481 -32
1 16 10 7.75 -27.25 0 1 0 1.25 0 0 0 0 1.25 1-4chrd.dat
1 16 10 6 -30.6142 0 1 0 3 0 0 0 0 -1.5 3-16chrd.dat
4 16 10 -1 -32 10 -1 -26 10 7.75 -26 10 4 -32
4 16 10 4 -32 10 7.75 -26 10 9 -27.25 10 7.1481 -32
3 16 10 9 -27.25 10 9 -30.6142 10 7.1481 -32
2 24 10 -1 -32 10 4 -32
2 24 10 -1 -32 10 -1 -26
1 16 12.5 7.75 -27.25 0 -1 0 1.25 0 0 0 0 1.25 1-4chrd.dat
1 16 12.5 6 -30.6142 0 -1 0 3 0 0 0 0 -1.5 3-16chrd.dat
4 16 12.5 7.75 -26 12.5 -1 -26 12.5 -1 -32 12.5 4 -32
4 16 12.5 9 -27.25 12.5 7.75 -26 12.5 4 -32 12.5 7.1481 -32
3 16 12.5 9 -30.6142 12.5 9 -27.25 12.5 7.1481 -32
2 24 12.5 4 -32 12.5 -1 -32
2 24 12.5 -1 -26 12.5 -1 -32
1 16 -11.25 3.375 -26 1.25 0 0 0 0 -4.375 0 -1 0 rect3.dat
1 16 -10 7.75 -27.25 0 -2.5 0 1.25 0 0 0 0 1.25 1-4cylo.dat
1 16 -11.25 9 -28.9321 0 0 1.25 0 -1 0 -1.6821 0 0 rect2p.dat
1 16 -10 6 -30.6142 0 -2.5 0 3 0 0 0 0 -1.5 3-16cylo.dat
4 16 -12.5 4 -32 -12.5 7.1481 -32 -10 7.1481 -32 -10 4 -32
5 24 -10 7.1481 -32 -12.5 7.1481 -32 -12.5 8.1213 -31.6749 -12.5 6 -32.2378
2 24 -12.5 4 -32 -12.5 7.1481 -32
2 24 -10 4 -32 -10 7.1481 -32
2 24 -10 7.1481 -32 -12.5 7.1481 -32
1 16 -10 7.75 -27.25 0 -1 0 1.25 0 0 0 0 1.25 1-4chrd.dat
1 16 -10 6 -30.6142 0 -1 0 3 0 0 0 0 -1.5 3-16chrd.dat
4 16 -10 7.75 -26 -10 -1 -26 -10 -1 -32 -10 4 -32
4 16 -10 9 -27.25 -10 7.75 -26 -10 4 -32 -10 7.1481 -32
3 16 -10 9 -30.6142 -10 9 -27.25 -10 7.1481 -32
2 24 -10 4 -32 -10 -1 -32
2 24 -10 -1 -26 -10 -1 -32
1 16 -12.5 7.75 -27.25 0 1 0 1.25 0 0 0 0 1.25 1-4chrd.dat
1 16 -12.5 6 -30.6142 0 1 0 3 0 0 0 0 -1.5 3-16chrd.dat
4 16 -12.5 -1 -32 -12.5 -1 -26 -12.5 7.75 -26 -12.5 4 -32
4 16 -12.5 4 -32 -12.5 7.75 -26 -12.5 9 -27.25 -12.5 7.1481 -32
3 16 -12.5 9 -27.25 -12.5 9 -30.6142 -12.5 7.1481 -32
2 24 -12.5 -1 -32 -12.5 4 -32
2 24 -12.5 -1 -32 -12.5 -1 -26
Status:
Needs 2 More Votes (N)
Current Votes:
None
Official parents and subparts
Part Events:
Gerald Lasser [GeraldLasser]
initially submitted the part.
2026-01-04 21:42:55
Rene Rechthaler [Blechtaler]
made the following comment.
2026-01-06 18:26:56
should the origin be centered at the hinge?
Philippe Hurbain [Philo]
made the following comment.
2026-01-06 18:32:58
When there's a stud, origin is to be placed at the stud base level.
Rene Rechthaler [Blechtaler]
posted a vote of Certify
2026-01-06 21:36:54
hm, the other chest lids also have the origin at the studs...
Gerald Lasser [GeraldLasser]
posted a vote of Hold
2026-01-06 22:44:59
sorry origin is wrong anyway.
Height is at the hinge, centre is at the stud... so a mix of both... but none correct
My intent was to have it at the hinge....
Height is at the hinge, centre is at the stud... so a mix of both... but none correct
My intent was to have it at the hinge....
Rene Rechthaler [Blechtaler]
cancelled their vote.
2026-03-26 18:52:59
Gerald Lasser [GeraldLasser]
submitted a new version of the part (all votes reset).
2026-05-16 11:24:03
moved origin to hinge
Creative Commons Attribution License information
This part is copyright ©
Gerald Lasser
Licensed under
CC BY 4.0
