Unofficial File parts/5844.dat
Part Attributes:
File Header:

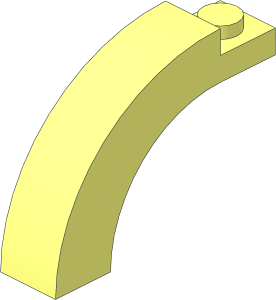

0 Arch 1 x 4 x 2.333 with Curved Top
0 Name: 5844.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Bottom inside
1 16 0 40.6738 -54 6 0 0 0 0 -15.3262 0 1 0 rect3.dat
1 16 0 30.7236 -57.8692 0 0 6 -5.376 0 0 3.8692 -1 0 rect2p.dat
1 16 0 44.0498 -63.4409 0 0 6 7.9502 0 0 -1.7025 -1 0 rect2p.dat
5 24 6 36.0996 -61.7384 -6 36.0996 -61.7384 -6 52 -65.1434 -6 25.3476 -54
0 BFC INVERTNEXT
1 16 0 54 -65.5717 6 0 0 0 -2 0 0 0 -.4283 box2-5.dat
4 16 -6 52 -65.1434 -6 52 -66 -6 56 -66 -6 56 -54
4 16 -6 52 -65.1434 -6 56 -54 -6 25.3476 -54 -6 36.0996 -61.7384
4 16 6 56 -66 6 52 -66 6 52 -65.1434 6 56 -54
4 16 6 56 -54 6 52 -65.1434 6 36.0996 -61.7384 6 25.3476 -54
2 24 6 56 -50 10 56 -50
2 24 -10 56 -50 -6 56 -50
3 16 -6 56 -54 -10 56 -50 -6 56 -50
3 16 6 56 -54 6 56 -50 10 56 -50
4 16 6 56 -50 6 56 -54 -6 56 -54 -6 56 -50
4 16 -10 56 -50 -6 56 -54 -6 56 -66 -10 56 -70
4 16 -10 56 -70 -6 56 -66 6 56 -66 10 56 -70
4 16 10 56 -70 6 56 -66 6 56 -54 10 56 -50
1 16 0 56 -60 10 0 0 0 1 0 0 0 -10 recte3.dat
1 16 0 56 -60 6 0 0 0 1 0 0 0 6 recte3.dat
0 // Bow inside
0 BFC INVERTNEXT
1 16 10 56 -10 0 -4 0 -40 0 0 0 0 -40 48\1-4cylo.dat
0 BFC INVERTNEXT
1 16 -10 56 -10 0 4 0 -40 0 0 0 0 -40 48\1-4cylo.dat
1 16 10 56 -10 0 -1 0 -40 0 0 0 0 -40 48\1-4ndis.dat
1 16 6 56 -10 0 1 0 -40 0 0 0 0 -40 48\1-4ndis.dat
1 16 -6 56 -10 0 -1 0 -40 0 0 0 0 -40 48\1-4ndis.dat
1 16 -10 56 -10 0 1 0 -40 0 0 0 0 -40 48\1-4ndis.dat
1 16 0 37.895 -50 6 0 0 0 0 18.105 0 -1 0 rect3.dat
1 16 0 13.8736 -40.7156 6 0 0 0 -1 5.9164 0 0 -9.2844 rect3.dat
1 16 0 6.3479 -22.7156 6 0 0 0 -1 -1.6093 0 0 8.7156 rect3.dat
5 24 -6 7.9572 -31.4312 6 7.9572 -31.4312 -6 4.7386 -14 6 19.79 -50
4 16 -6 4.7386 -14 -6 7.9572 -31.4312 -6 16 -50 -6 16 -14
4 16 6 16 -50 6 7.9572 -31.4312 6 4.7386 -14 6 16 -14
1 16 0 10.3693 -12 6 0 0 0 5.6307 0 0 0 -2 box2-7.dat
0 // Bow outside
1 16 -10 56 -10 0 20 0 -56 0 0 0 0 -60 48\1-4cylo.dat
1 16 -10 56 -10 0 1 0 -56 0 0 0 0 -60 48\1-8chrd.dat
1 16 -10 56 -10 0 1 0 0 0 -56 -60 0 0 48\1-8chrd.dat
1 16 10 56 -10 0 -1 0 -56 0 0 0 0 -60 48\1-8chrd.dat
1 16 10 56 -10 0 -1 0 0 0 -56 -60 0 0 48\1-8chrd.dat
4 16 10 56 -70 10 56 -50 10 16 -50 10 16.4024 -52.426
4 16 10 16.4024 -52.426 10 16 -50 10 8 -10 10 0 -10
3 16 10 8 -10 10 16 -50 10 16 -10
4 16 -10 16 -50 -10 56 -50 -10 56 -70 -10 16.4024 -52.426
4 16 -10 8 -10 -10 16 -50 -10 16.4024 -52.426 -10 0 -10
3 16 -10 16 -50 -10 8 -10 -10 16 -10
0 // Plate end
4 16 10 16 -10 6 16 -10 6 16 6 10 16 10
4 16 10 16 10 6 16 6 -6 16 6 -10 16 10
4 16 -10 16 10 -6 16 6 -6 16 -10 -10 16 -10
0 BFC INVERTNEXT
1 16 0 16 -2 6 0 0 0 -4 0 0 0 8 box5.dat
1 16 0 12 -8 1.5 0 0 0 3.75 0 0 0 2 box4-1.dat
1 16 0 16 0 -10 0 0 0 -8 0 0 0 10 box4-4a.dat
1 16 0 8 0 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 0 4 -10 -10 0 0 0 0 -4 0 -1 0 rect.dat
Status:
Errors Found (HN)
Current Votes:
| User | Vote |
|---|---|
| Blechtaler | Hold |
Official parents and subparts
Part Events:
Header Edits
description:
Arch 1 x 4 x 3.333 with Curved Top
to
Arch 1 x 4 x 2.333 with Curved Top
got the height wrong (56LDU=7 plates=2.333Bricks)
hold until physical release
2026-01-04 23:30:19
I would assume 5843, 5844 and 5845 would match, but we need the parts to confirm...
2026-01-04 23:54:39
it does fit 5841 and 5843 (perfectly stackable), but 5845 seems to be one plate too high... (it also has a fully R60 inside, as opposed to the R60/56 ellipse)
Edge lines on the bottom surface.
fixed
reinstating hold until physical release
Creative Commons Attribution License information
This part is copyright © Rene Rechthaler
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
the outer cylo is strange: ellipsoid with y56 and z60
