Unofficial File parts/s/5057s04.dat
File Header:

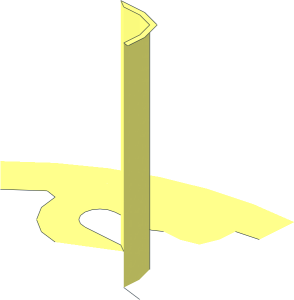

0 ~Brick 3 x 3 Curved 45 Degrees - Flat End Eight
0 Name: s\5057s04.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 0 0 -29.5 0 -1 0 29.5 0 0 48\1-8chrd.dat
3 16 -18.0311 0 18.0311 -20.8595 0 20.8595 -15.5244 0 20.2317
3 16 0 0 29.5 0 0 26 -2 0 25.6023
3 16 -5.6023 0 22 -6.4 0 21.5 -10 0 21.5
3 16 -2 0 25.6023 -4 0 22 -5.6023 0 22
3 16 -5.6023 0 22 -10 0 21.5 -2 0 25.6023
3 16 -2 0 24 -2.5 0 22.5 -4 0 22
3 16 -2 0 25.6023 -2 0 24 -4 0 22
3 16 -10 0 21.5 -11.5 0 21.5 -2 0 25.6023
4 16 -20.8595 0 20.8595 0 0 29.5 -2 0 25.6023 -11.5 0 21.5
3 16 -20.8595 0 20.8595 -11.5 0 21.5 -15.5244 0 20.2317
1 16 -10 0 20 0 0 -4.5 0 -1 0 -4.5 0 0 1-4chrd.dat
1 16 -10 0 20 0 0 -1.5 0 -1 0 -1.5 0 0 2-4ndis.dat
1 16 -10 0 20 0 0 -4.5 0 -1 0 -4.5 0 0 1-4edge.dat
1 16 -10 0 20 0 0 -1.5 0 -1 0 -1.5 0 0 2-4edge.dat
3 16 -4 0 18 -2.5 0 17.5 -2 0 16
4 16 -5.6023 0 18 -4 0 18 -2 0 16 -2 0 14.3977
4 16 -5.6023 0 18 -10 0 15.5 -10 0 18.5 -6.4 0 18.5
3 16 -10 0 15.5 -11.5 0 18.5 -10 0 18.5
3 16 -11.5 0 18.5 -10 0 15.5 -14.5 0 20
3 16 -11.5 0 20 -11.5 0 18.5 -14.5 0 20
4 16 -15.5244 0 20.2317 -11.5 0 21.5 -11.5 0 20 -14.5 0 20
2 24 -6.4 0 21.5 -5.6023 0 22
2 24 -10 0 21.5 -6.4 0 21.5
2 24 -6.4 0 18.5 -10 0 18.5
2 24 -5.6023 0 18 -6.4 0 18.5
2 24 -15.5244 0 20.2317 -14.5 0 20
2 24 -18.0311 0 18.0311 -15.5244 0 20.2317
4 16 -4 -20 18 -4 0 18 -5.6023 0 18 -5.6023 -20 18
4 16 -5.6023 -20 18 -5.6023 0 18 -6.4 0 18.5 -6.4 -20 18.5
4 16 -2.5 0 17.5 -4 0 18 -4 -20 18 -2.5 -20 17.5
4 16 -2.5 0 17.5 -2.5 -20 17.5 -2 -20 16 -2 0 16
4 16 -2 -20 14.3977 -2 0 14.3977 -2 0 16 -2 -20 16
5 24 -5.6023 0 18 -5.6023 -20 18 -6.4 0 18.5 -4 -20 18
5 24 -2.5 0 17.5 -2.5 -20 17.5 -2 -20 16 -4 0 18
5 24 -4 -20 18 -4 0 18 -5.6023 0 18 -2.5 -20 17.5
5 24 -2 -20 16 -2 0 16 -2.5 0 17.5 -2 -20 14.3977
4 16 -4 -20 18 -5.6023 -20 18 -6.4 -20 18.5 -4 -20 18.5
4 16 -1.5 -20 16 -1.5 -20 14.298275 -2 -20 14.3977 -2 -20 16
4 16 -2.5 -20 17.5 -4 -20 18 -4 -20 18.5 -2.125 -20 17.875
4 16 -2 -20 16 -2.5 -20 17.5 -2.125 -20 17.875 -1.5 -20 16
2 24 -5.6023 -20 18 -6.4 -20 18.5
2 24 -5.6023 -20 18 -4 -20 18
2 24 -4 -20 18 -2.5 -20 17.5
2 24 -2.5 -20 17.5 -2 -20 16
2 24 -2 -20 14.3977 -2 -20 16
2 24 -1.5 -20 14.298275 -2 -20 14.3977
2 24 -1.5 -20 16 -1.5 -20 14.298275
2 24 -2.125 -20 17.875 -1.5 -20 16
2 24 -4 -20 18.5 -6.4 -20 18.5
2 24 -2.125 -20 17.875 -4 -20 18.5
2 24 -2 0 14.3977 0 0 14
2 24 -2 0 25.6023 0 0 26
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
This part has the following errors
-
Decimal precision exceeds 5 significant placesLine text: 4 16 -1.5 -20 16 -1.5 -20 14.298275 -2 -20 14.3977 -2 -20 16
-
Decimal precision exceeds 5 significant placesLine text: 2 24 -1.5 -20 14.298275 -2 -20 14.3977
-
Decimal precision exceeds 5 significant placesLine text: 2 24 -1.5 -20 16 -1.5 -20 14.298275
Current Votes:
None
Official parents and subparts
Part Events:
2026-01-05 21:40:08
