File Detail parts/s/7035s01.dat

Unofficial File parts/s/7035s01.dat

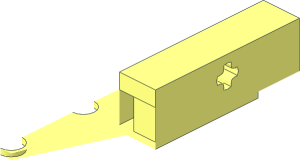

~Car Base 4 x 14 with Axle Holes - Quarter

File Header:

0 ~Car Base  4 x 14 with Axle Holes - Quarter
0 Name: s\7035s01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // base plate
1 16 0 24 20 0 0 6 0 1 0 6 0 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 0 24 20 0 0 6 0 3 0 6 0 0 2-4cylo.dat
1 16 0 27 20 0 0 6 0 -1 0 6 0 0 2-4ndis.dat
1 16 0 24 60 0 0 6 0 1 0 6 0 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 0 24 60 0 0 6 0 3 0 6 0 0 2-4cylo.dat
1 16 0 27 60 0 0 6 0 -1 0 6 0 0 2-4ndis.dat
1 16 0 24 100 0 0 6 0 1 0 6 0 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 0 24 100 0 0 6 0 3 0 6 0 0 2-4cylo.dat
1 16 0 27 100 0 0 6 0 -1 0 6 0 0 2-4ndis.dat
3 16 6 24 14 20 24 60 6 24 20
3 16 6 24 20 20 24 60 6 24 26
3 16 6 24 54 6 24 26 20 24 60
4 16 0 24 54 0 24 26 6 24 26 6 24 54
3 16 6 24 54 20 24 60 6 24 60
3 16 6 24 60 20 24 60 6 24 66
4 16 20 24 117 6 24 94 6 24 66 20 24 60
4 16 6 24 94 0 24 94 0 24 66 6 24 66
3 16 6 24 94 20 24 117 6 24 100
3 16 6 24 100 20 24 117 6 24 106
4 16 6 24 106 20 24 117 0 24 117 0 24 106

3 16 6 27 14 6 27 20 24 27 60
3 16 6 27 20 6 27 26 24 27 60
3 16 24 27 60 6 27 26 6 27 54
3 16 24 27 60 6 27 54 6 27 60
4 16 24 27 64 24 27 60 6 27 60 6 27 66
3 16 24 27 64 6 27 66 6 27 94
4 16 24 27 64 6 27 94 6 27 100 24 27 117
3 16 24 27 117 6 27 100 6 27 106
4 16 0 27 106 0 27 117 24 27 117 6 27 106
4 16 6 27 66 0 27 66 0 27 94 6 27 94
4 16 6 27 26 0 27 26 0 27 54 6 27 54

0 // axlehole
1 16 20 10 100 0 20 0 0 0 1 1 0 0 axlehol4.dat
1 16 20 10 100 0 1 0 6 0 0 0 0 6 4-4ndis.dat
1 16 20 10 100 0 1 0 6 0 0 0 0 6 4-4ering.dat
1 16 40 10 100 0 -1 0 6 0 0 0 0 6 4-4ndis.dat
1 16 40 10 100 0 -1 0 6 0 0 0 0 6 4-4ering.dat

1 16 30 7 91 0 0 6 3 0 0 0 1 0 rect2p.dat
1 16 30 11.1646 91.1535 0 0 6 1.1646 0 0 .1535 1 0 rect2p.dat
1 16 30 13.4146 91.7565 0 0 6 1.0854 0 0 .4495 1 0 rect2p.dat
5 24 24 10 91 36 10 91 24 4 91 24 12.3292 91.307
5 24 36 12.3292 91.307 24 12.3292 91.307 24 14.5 92.206 36 10 91
0 BFC INVERTNEXT
1 16 30 16.05115 93.853 6 0 0 0 -1.55115 0 0 0 1.647 box2-5.dat
1 16 30 16.6023 96.75 6 0 0 0 1 0 0 0 1.25 box2-7.dat
1 16 22 15.80115 99 2 0 0 0 1 -.19885 0 0 -1 rect3.dat
1 16 38 15.80115 99 2 0 0 0 1 -.19885 0 0 -1 rect3.dat
1 16 22 15.80115 101 2 0 0 0 1 -.19885 0 0 1 rect3.dat
1 16 38 15.80115 101 2 0 0 0 1 -.19885 0 0 1 rect3.dat
1 16 30 16.6023 103.25 6 0 0 0 1 0 0 0 -1.25 box2-7.dat
0 BFC INVERTNEXT
1 16 30 16.05115 106.147 6 0 0 0 -1.55115 0 0 0 -1.647 box2-5.dat
1 16 30 13.4146 108.2435 0 0 6 1.0854 0 0 -.4495 -1 0 rect2p.dat
1 16 30 11.1646 108.8465 0 0 6 1.1646 0 0 -.1535 -1 0 rect2p.dat
5 24 36 10 109 24 10 109 24 4 109 24 12.3292 108.693
5 24 24 12.3292 108.693 36 12.3292 108.693 24 14.5 107.794 36 10 109
1 16 30 7 109 0 0 6 3 0 0 0 -1 0 rect2p.dat

0 // outside
1 16 30 4 100 10 0 0 0 -4 0 0 0 -40 box2-5.dat
4 16 20 0 140 40 0 140 40 24 140 20 16 140
2 24 40 0 140 40 24 140
2 24 20 16 140 20 0 140
2 24 20 24 117 20 24 60

4 16 40 10 106 40 24 140 40 0 140 40 4 106
4 16 40 16 106 40 24 117 40 24 140 40 10 106
4 16 40 24 117 40 16 106 40 16 100 40 27 117
4 16 40 16 94 40 27 60 40 27 117 40 16 100
4 16 40 10 94 40 8 60 40 27 60 40 16 94
4 16 40 10 94 40 4 94 40 0 60 40 8 60
4 16 40 4 94 40 4 100 40 0 140 40 0 60
3 16 40 0 140 40 4 100 40 4 106

4 16 20 4 106 20 0 140 20 16 140 20 16 120
4 16 20 24 120 20 10 106 20 4 106 20 16 120
4 16 20 24 120 20 24 117 20 16 106 20 10 106
3 16 20 16 106 20 24 117 20 16 100
4 16 20 24 117 20 24 60 20 16 94 20 16 100
4 16 20 8 60 20 10 94 20 16 94 20 24 60
4 16 20 10 94 20 8 60 20 0 60 20 4 94
4 16 20 4 94 20 0 60 20 0 140 20 4 100
3 16 20 4 100 20 0 140 20 4 106

0 // bottom
1 16 18 20 130 0 0 -2 0 3.5 0 2 0 0 box4-1.dat
0 BFC INVERTNEXT
1 16 30 24 130 6 0 0 0 -20 0 0 0 6 box5.dat
1 16 22 24 118.5 2 0 0 0 -1 0 0 0 -1.5 rect3.dat
1 16 38 25.5 117 2 0 0 0 0 1.5 0 -1 0 rect.dat
3 16 24 24 136 20 24 136 40 24 140
3 16 24 24 136 40 24 140 36 24 136
4 16 20 24 124 20 24 136 24 24 136 24 24 124
4 16 20 24 120 20 24 124 24 24 124 24 24 120
4 16 24 24 120 24 24 124 36 24 124 36 24 120
4 16 40 24 117 36 24 124 36 24 136 40 24 140
3 16 36 24 120 36 24 124 40 24 117
3 16 36 24 117 36 24 120 40 24 117
4 16 24 27 117 0 27 117 0 24 117 20 24 117
3 16 24 24 117 24 27 117 20 24 117
4 16 36 27 60 24 27 60 24 27 64 36 27 64
3 16 36 27 64 40 27 60 36 27 60
4 16 36 27 117 40 27 117 40 27 60 36 27 64
2 24 0 27 117 24 27 117
2 24 20 24 117 0 24 117
2 24 36 24 117 36 24 120
2 24 24 24 117 24 27 117
2 24 40 27 60 40 27 117
2 24 36 27 117 36 27 64
2 24 24 27 64 24 27 117

0 // inside
0 BFC INVERTNEXT
1 16 30 15.5 77.5 6 0 0 0 -11.5 0 0 0 -13.5 box2-5.dat
0 BFC INVERTNEXT
1 16 30 14 114.5 6 0 0 0 -10 0 0 0 5.5 box2-5.dat
4 16 24 24 120 24 4 120 24 4 109 24 10 109
4 16 24 24 117 24 24 120 24 10 109 24 14.5 107.794
4 16 24 24 117 24 14.5 107.794 24 14.5 104.5 24 17.6023 104.5
4 16 24 27 117 24 24 117 24 17.6023 104.5 24 17.6023 102
3 16 24 17.6023 102 24 15.6023 102 24 16 100
4 16 24 17.6023 102 24 16 100 24 15.6023 98 24 17.6023 98
3 16 24 17.6023 102 24 17.6023 98 24 27 117
4 16 24 27 117 24 17.6023 98 24 17.6023 95.5 24 27 64
4 16 24 27 64 24 17.6023 95.5 24 14.5 95.5 24 14.5 92.206
3 16 24 27 64 24 14.5 92.206 24 10 91
4 16 24 4 91 24 4 64 24 27 64 24 10 91
4 16 36 4 109 36 4 120 36 24 120 36 10 109
4 16 36 10 109 36 24 120 36 24 117 36 14.5 107.794
4 16 36 14.5 104.5 36 14.5 107.794 36 24 117 36 17.6023 104.5
4 16 36 17.6023 104.5 36 24 117 36 27 117 36 17.6023 102
3 16 36 15.6023 102 36 17.6023 102 36 16 100
4 16 36 15.6023 98 36 16 100 36 17.6023 102 36 17.6023 98
3 16 36 17.6023 98 36 17.6023 102 36 27 117
4 16 36 17.6023 95.5 36 17.6023 98 36 27 117 36 27 64
4 16 36 14.5 95.5 36 17.6023 95.5 36 27 64 36 14.5 92.206
3 16 36 14.5 92.206 36 27 64 36 10 91
4 16 36 27 64 36 4 64 36 4 91 36 10 91
