File Detail parts/4217.dat

Download Download zip file

Unofficial File parts/4217.dat

View official version of part

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

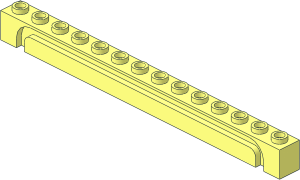

0 Brick  1 x 14 with Groove
0 Name: 4217.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Brickowl 26532

0 !HISTORY 1997-12-05 [PTadmin] Official Update 1997-17
0 !HISTORY 1998-01-12 [PTadmin] Official Update 1998-01
0 !HISTORY 2007-07-04 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [cwdee] Correct studs from solid to hollow and add stud3 intersects, BFC'd and corrected L3P errors (2007-05-07)
0 !HISTORY 2008-07-08 [tchang] Rebuild 2 missing inner edges (2008-02-15)
0 !HISTORY 2009-05-02 [PTadmin] Official Update 2009-01
0 !HISTORY 2026-01-10 [Blechtaler] complete rework, original by [cma_1971]

Show contents

0 // outside
1 16 0 24 0 140 0 0 0 -24 0 0 0 10 box4-1.dat
1 16 60 0 0 1 0 0 0 1 0 0 0 1 stug2-1x8.dat
1 16 -80 0 0 1 0 0 0 1 0 0 0 1 stug2-1x6.dat

0 // groove
0 BFC INVERTNEXT
1 16 120 20 -10 0 0 4 -4 0 0 0 5 0 box3u5p.dat
1 16 110 16 -10 6 0 0 0 0 -6 0 1 0 1-4chrd.dat
1 16 110 16 -10 6 0 0 0 0 -6 0 5 0 1-4cylo.dat
1 16 110 16 -5 6 0 0 0 0 -6 0 1 0 1-4ndis.dat
4 16 116 10 -5 116 16 -5 124 16 -5 119.8994 6.1006 -5
4 16 116 10 -5 119.8994 6.1006 -5 110 2 -5 110 10 -5
1 16 110 16 -5 14 0 0 0 0 -14 0 1 0 1-8chrd.dat
1 16 110 16 -5 0 0 14 -14 0 0 0 1 0 1-8chrd.dat
0 BFC INVERTNEXT
1 16 110 16 -10 14 0 0 0 0 -14 0 5 0 1-4cylo.dat
1 16 110 16 -10 14 0 0 0 0 -14 0 1 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 0 6 -10 110 0 0 0 0 4 0 5 0 box3u8p.dat
1 16 -110 16 -10 -6 0 0 0 0 -6 0 1 0 1-4chrd.dat
1 16 -110 16 -10 -6 0 0 0 0 -6 0 5 0 1-4cylo.dat
1 16 -110 16 -5 -6 0 0 0 0 -6 0 1 0 1-4ndis.dat
4 16 -110 10 -5 -110 2 -5 -119.8994 6.1006 -5 -116 10 -5
4 16 -116 10 -5 -119.8994 6.1006 -5 -124 16 -5 -116 16 -5
1 16 -110 16 -5 -14 0 0 0 0 -14 0 1 0 1-8chrd.dat
1 16 -110 16 -5 0 0 -14 -14 0 0 0 1 0 1-8chrd.dat
0 BFC INVERTNEXT
1 16 -110 16 -10 -14 0 0 0 0 -14 0 5 0 1-4cylo.dat
1 16 -110 16 -10 -14 0 0 0 0 -14 0 1 0 1-4ndis.dat
0 BFC INVERTNEXT
1 16 -120 20 -10 0 0 4 -4 0 0 0 5 0 box3u5p.dat

1 16 0 20 -10 0 0 116 4 0 0 0 1 0 rect1.dat
4 16 -116 16 -10 116 16 -10 110 10 -10 -110 10 -10
3 16 124 24 -10 140 24 -10 124 16 -10
4 16 124 2 -10 124 16 -10 140 24 -10 140 0 -10
3 16 124 2 -10 140 0 -10 110 2 -10
4 16 -140 0 -10 -110 2 -10 110 2 -10 140 0 -10
3 16 -110 2 -10 -140 0 -10 -124 2 -10
4 16 -124 2 -10 -140 0 -10 -140 24 -10 -124 16 -10
3 16 -124 16 -10 -140 24 -10 -124 24 -10
2 24 -140 24 -10 -124 24 -10
2 24 124 24 -10 140 24 -10

0 // inside
0 BFC INVERTNEXT
1 16 0 14 -6 0 0 136 10 0 0 0 12 0 box3u2p.dat
1 16 133 14 -6 3 0 0 0 0 10 0 -1 0 rect2p.dat
0 BFC INVERTNEXT
1 16 130 4 0 -6 0 0 0 20 0 0 0 -6 1-4cylo.dat
1 16 120 4 0 4 0 0 0 20 0 0 0 4 2-4cylo.dat
0 BFC INVERTNEXT
1 16 110 16 0 0 0 6 0 8 0 -6 0 0 3-16cylo.dat
1 16 0 20 -6 110 0 0 0 0 4 0 -1 0 rect2p.dat
0 BFC INVERTNEXT
1 16 -110 16 0 0 0 -6 0 8 0 -6 0 0 3-16cylo.dat
1 16 -120 4 0 4 0 0 0 20 0 0 0 4 2-4cylo.dat
0 BFC INVERTNEXT
1 16 -130 4 0 6 0 0 0 20 0 0 0 -6 1-4cylo.dat
1 16 -133 14 -6 3 0 0 0 0 10 0 -1 0 rect2p.dat

1 16 110 16 0 0 0 6 0 -1 0 -6 0 0 3-16chrd.dat
1 16 -110 16 0 0 0 -6 0 -1 0 -6 0 0 3-16chrd.dat
1 16 0 10 -2 115.6023 0 0 0 0 6 0 -1 0 rect.dat
2 24 115.5434 24 -2.2962 116 24 0
2 24 115.5434 16 -2.2962 115.6023 16 -2
2 24 115.6023 4 -2 116 4 0
2 24 -115.6023 16 -2 -115.5434 16 -2.2962
2 24 -116 24 0 -115.5434 24 -2.2962
2 24 -116 4 0 -115.6023 4 -2
3 16 -115.5434 16 -2.2962 -115.6023 16 -2 -110 16 -6
4 16 -115.6023 16 -2 115.6023 16 -2 110 16 -6 -110 16 -6
3 16 110 16 -6 115.6023 16 -2 115.5434 16 -2.2962
4 16 116 24 0 115.5434 24 -2.2962 115.5434 16 -2.2962 115.6023 16 -2
4 16 116 4 0 116 24 0 115.6023 16 -2 115.6023 4 -2
4 16 -116 4 0 -115.6023 4 -2 -115.6023 16 -2 -116 24 0
4 16 -115.5434 24 -2.2962 -116 24 0 -115.6023 16 -2 -115.5434 16 -2.2962
5 24 116 24 0 116 4 0 115.5434 24 -2.2962 116 24 1
5 24 115.5434 24 -2.2962 115.5434 16 -2.2962 114.2426 24 -4.2426 116 24 0
5 24 -115.5434 24 -2.2962 -115.5434 16 -2.2962 -114.2426 24 -4.2426 -116 24 0
5 24 -116 24 0 -116 4 0 -115.5434 24 -2.2962 -116 24 1

1 16 130 4 0 -6 0 0 0 -1 0 0 0 -6 1-4chrd.dat
1 16 -130 4 0 6 0 0 0 -1 0 0 0 -6 1-4chrd.dat
4 16 124 4 0 136 4 6 136 4 -6 130 4 -6
3 16 136 4 6 124 4 0 116 4 0
4 16 -116 4 0 -136 4 6 136 4 6 116 4 0
4 16 115.6023 4 -2 -115.6023 4 -2 -116 4 0 116 4 0
3 16 -136 4 6 -116 4 0 -124 4 0
4 16 -136 4 6 -124 4 0 -130 4 -6 -136 4 -6

1 16 0 4 0 1 0 0 0 -5 0 0 0 1 stug3-1x11.dat
2 24 -76.618 4 -2 -76.618 16 -2
2 24 -76.618 16 -2 -77.1716 16 -2.8284
2 24 -17.1716 16 -2.8284 -18.4692 16 -3.6956
2 24 41.5308 16 -3.6956 40 16 -4
2 24 -18.4692 16 -3.6956 -20 16 -4
2 24 38.4692 16 -3.6956 40 16 -4
2 24 -83.382 4 -2 -83.382 16 -2
2 24 -82.8284 16 -2.8284 -83.382 16 -2
2 24 43.382 16 -2 43.382 4 -2
2 24 43.382 16 -2 42.8284 16 -2.8284
2 24 -16.618 16 -2 -16.618 4 -2
2 24 -17.1716 16 -2.8284 -16.618 16 -2
2 24 42.8284 16 -2.8284 41.5308 16 -3.6956
2 24 -81.5308 16 -3.6956 -80 16 -4
2 24 -81.5308 16 -3.6956 -82.8284 16 -2.8284
2 24 -77.1716 16 -2.8284 -78.4692 16 -3.6956
2 24 -78.4692 16 -3.6956 -80 16 -4
2 24 81.5308 16 -3.6956 82.8284 16 -2.8284
2 24 81.5308 16 -3.6956 80 16 -4
2 24 18.4692 16 -3.6956 17.1716 16 -2.8284
2 24 -41.5308 16 -3.6956 -42.8284 16 -2.8284
2 24 16.618 4 -2 16.618 16 -2
2 24 17.1716 16 -2.8284 16.618 16 -2
2 24 83.382 16 -2 83.382 4 -2
2 24 83.382 16 -2 82.8284 16 -2.8284
2 24 -43.382 16 -2 -43.382 4 -2
2 24 -42.8284 16 -2.8284 -43.382 16 -2
2 24 21.5308 16 -3.6956 20 16 -4
2 24 -38.4692 16 -3.6956 -40 16 -4
2 24 20 16 -4 18.4692 16 -3.6956
2 24 -41.5308 16 -3.6956 -40 16 -4
2 24 -103.382 16 -2 -103.382 4 -2
2 24 -102.8284 16 -2.8284 -103.382 16 -2
2 24 23.382 16 -2 23.382 4 -2
2 24 22.8284 16 -2.8284 23.382 16 -2
2 24 -36.618 16 -2 -36.618 4 -2
2 24 -37.1716 16 -2.8284 -36.618 16 -2
2 24 22.8284 16 -2.8284 21.5308 16 -3.6956
2 24 -38.4692 16 -3.6956 -37.1716 16 -2.8284
2 24 76.618 16 -2 76.618 4 -2
2 24 -96.618 16 -2 -96.618 4 -2
2 24 -56.618 4 -2 -56.618 16 -2
2 24 56.618 16 -2 56.618 4 -2
2 24 -3.382 4 -2 -3.382 16 -2
2 24 63.382 16 -2 63.382 4 -2
2 24 -63.382 16 -2 -63.382 4 -2
2 24 3.382 16 -2 3.382 4 -2
2 24 96.618 16 -2 96.618 4 -2
2 24 -23.382 16 -2 -23.382 4 -2
2 24 103.382 4 -2 103.382 16 -2
2 24 36.618 16 -2 36.618 4 -2
2 24 76.618 16 -2 77.1716 16 -2.8284
2 24 80 16 -4 78.4692 16 -3.6956
2 24 78.4692 16 -3.6956 77.1716 16 -2.8284
2 24 -101.5308 16 -3.6956 -100 16 -4
2 24 -101.5308 16 -3.6956 -102.8284 16 -2.8284
2 24 -98.4692 16 -3.6956 -97.1716 16 -2.8284
2 24 -100 16 -4 -98.4692 16 -3.6956
2 24 -97.1716 16 -2.8284 -96.618 16 -2
2 24 -60 16 -4 -58.4692 16 -3.6956
2 24 -60 16 -4 -61.5308 16 -3.6956
2 24 -56.618 16 -2 -57.1716 16 -2.8284
2 24 -58.4692 16 -3.6956 -57.1716 16 -2.8284
2 24 56.618 16 -2 57.1716 16 -2.8284
2 24 -3.382 16 -2 -2.8284 16 -2.8284
2 24 60 16 -4 58.4692 16 -3.6956
2 24 -1.5308 16 -3.6956 0 16 -4
2 24 58.4692 16 -3.6956 57.1716 16 -2.8284
2 24 -2.8284 16 -2.8284 -1.5308 16 -3.6956
2 24 62.8284 16 -2.8284 61.5308 16 -3.6956
2 24 1.5308 16 -3.6956 2.8284 16 -2.8284
2 24 61.5308 16 -3.6956 60 16 -4
2 24 1.5308 16 -3.6956 0 16 -4
2 24 -62.8284 16 -2.8284 -61.5308 16 -3.6956
2 24 62.8284 16 -2.8284 63.382 16 -2
2 24 -63.382 16 -2 -62.8284 16 -2.8284
2 24 2.8284 16 -2.8284 3.382 16 -2
2 24 98.4692 16 -3.6956 97.1716 16 -2.8284
2 24 96.618 16 -2 97.1716 16 -2.8284
2 24 101.5308 16 -3.6956 100 16 -4
2 24 98.4692 16 -3.6956 100 16 -4
2 24 -23.382 16 -2 -22.8284 16 -2.8284
2 24 103.382 16 -2 102.8284 16 -2.8284
2 24 102.8284 16 -2.8284 101.5308 16 -3.6956
2 24 -21.5308 16 -3.6956 -20 16 -4
2 24 38.4692 16 -3.6956 37.1716 16 -2.8284
2 24 -21.5308 16 -3.6956 -22.8284 16 -2.8284
2 24 37.1716 16 -2.8284 36.618 16 -2

0 // bottom
1 16 120 24 0 4 0 0 0 -1 0 0 0 4 2-4chrd.dat
1 16 -120 24 0 4 0 0 0 -1 0 0 0 4 2-4chrd.dat
1 16 130 24 0 0 0 -6 0 -1 0 -6 0 0 1-8tndis.dat
1 16 130 24 0 -6 0 0 0 -1 0 0 0 -6 1-8tndis.dat
1 16 110 24 0 0 0 6 0 -1 0 -6 0 0 3-16tndis.dat
1 16 -110 24 0 0 0 -6 0 -1 0 -6 0 0 3-16tndis.dat
1 16 -130 24 0 6 0 0 0 -1 0 0 0 -6 1-8tndis.dat
1 16 -130 24 0 0 0 6 0 -1 0 -6 0 0 1-8tndis.dat

4 16 124 24 -10 130 24 -6 136 24 -6 140 24 -10
3 16 130 24 -6 124 24 -10 125.7574 24 -6
4 16 125.7574 24 -4.2426 125.7574 24 -6 124 24 -10 124 24 -5
3 16 125.7574 24 -4.2426 124 24 -5 124 24 -4.2426
4 16 115.5434 24 -2.2962 124 24 -4.2426 124 24 -5 116 24 -5
4 16 116 24 0 124 24 0 124 24 -4.2426 115.5434 24 -2.2962
4 16 116 24 -10 115.5434 24 -6 115.5434 24 -2.2962 116 24 -5
3 16 115.5434 24 -6 116 24 -10 110 24 -6
4 16 -110 24 -6 110 24 -6 116 24 -10 -116 24 -10
3 16 -110 24 -6 -116 24 -10 -115.5434 24 -6
4 16 -116 24 -10 -116 24 -5 -115.5434 24 -2.2962 -115.5434 24 -6
4 16 -124 24 -4.2426 -115.5434 24 -2.2962 -116 24 -5 -124 24 -5
4 16 -124 24 0 -116 24 0 -115.5434 24 -2.2962 -124 24 -4.2426
3 16 -125.7574 24 -4.2426 -124 24 -4.2426 -124 24 -5
4 16 -125.7574 24 -4.2426 -124 24 -5 -124 24 -10 -125.7574 24 -6
3 16 -125.7574 24 -6 -124 24 -10 -130 24 -6
4 16 -136 24 -6 -130 24 -6 -124 24 -10 -140 24 -10
4 16 140 24 -10 136 24 -6 136 24 6 140 24 10
4 16 140 24 10 136 24 6 -136 24 6 -140 24 10
4 16 -140 24 10 -136 24 6 -136 24 -6 -140 24 -10

Status:

Needs 2 More Votes (F)

Current Votes:

None

Official parents and subparts

Part Events:

Archived Part Events:

Rene Rechthaler [Blechtaler]

initially submitted the part.

2026-01-10 17:01:57

complete rework
no physical change as of now, but I checked the physical part and it has reinforcements at every second stud3 -> should they get added?
