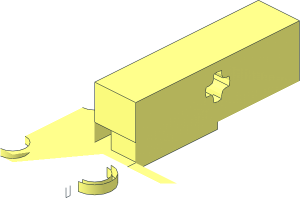

~Car Base 6 x 12 with Axle Holes - Quarter

File Header:

0 ~Car Base  6 x 12 with Axle Holes - Quarter
0 Name: s\5801s01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

0 // base plate
1 16 0 24 20 0 0 6 0 1 0 6 0 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 0 24 20 0 0 6 0 3 0 6 0 0 2-4cylo.dat
1 16 0 27 20 0 0 6 0 -1 0 6 0 0 2-4ndis.dat
1 16 0 24 60 0 0 6 0 1 0 6 0 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 0 24 60 0 0 6 0 3 0 6 0 0 2-4cylo.dat
1 16 0 27 60 0 0 6 0 -1 0 6 0 0 2-4ndis.dat

3 16 6 24 14 20 24 40 6 24 20
3 16 6 24 20 20 24 40 6 24 26
3 16 6 24 54 6 24 26 20 24 40
4 16 0 24 54 0 24 26 6 24 26 6 24 54
4 16 6 24 54 20 24 40 20 24 77 6 24 60
3 16 20 24 77 6 24 66 6 24 60
3 16 0 24 66 6 24 66 20 24 77

3 16 6 27 14 6 27 20 24 27 40
3 16 6 27 20 6 27 26 24 27 40
3 16 24 27 40 6 27 26 6 27 54
4 16 6 27 26 0 27 26 0 27 54 6 27 54
4 16 24 27 44 24 27 40 6 27 54 6 27 60
4 16 6 27 60 6 27 66 20 27 77 24 27 44

0 // axlehole
1 16 40 10 80 0 -19.5 0 0 0 1 1 0 0 axlehol4.dat
1 16 20 10 80 0 1 0 4 0 0 0 0 4 4-4ndis.dat
0 BFC INVERTNEXT
1 16 20 10 80 0 .5 0 4 0 0 0 0 4 4-4cylo.dat
1 16 20.5 10 80 0 -1 0 2 0 0 0 0 2 4-4ring2.dat
1 16 40 10 80 0 -1 0 6 0 0 0 0 6 4-4ndis.dat
1 16 40 10 80 0 -1 0 6 0 0 0 0 6 4-4ering.dat

1 16 30 7 71 0 0 6 3 0 0 0 1 0 rect2p.dat
1 16 30 11.1646 71.1535 0 0 6 1.1646 0 0 .1535 1 0 rect2p.dat
1 16 30 13.4146 71.7565 0 0 6 1.0854 0 0 .4495 1 0 rect2p.dat
5 24 24 10 71 36 10 71 24 4 71 24 12.3292 71.307
5 24 36 12.3292 71.307 24 12.3292 71.307 24 14.5 72.206 36 10 71
0 BFC INVERTNEXT
1 16 30 16.05115 73.853 6 0 0 0 -1.55115 0 0 0 1.647 box2-5.dat
1 16 30 16.6023 76.75 6 0 0 0 1 0 0 0 1.25 box2-7.dat
1 16 22.25 15.80115 79 1.75 0 0 0 1 -.19885 0 0 -1 rect3.dat
1 16 38 15.80115 79 2 0 0 0 1 -.19885 0 0 -1 rect3.dat
5 24 20.5 16 80 24 16 80 24 15.6023 82 24 15.6023 78
5 24 36 16 80 40 16 80 40 15.6023 78 40 15.6023 82
1 16 22.25 15.80115 81 1.75 0 0 0 1 -.19885 0 0 1 rect3.dat
1 16 38 15.80115 81 2 0 0 0 1 -.19885 0 0 1 rect3.dat
1 16 30 16.6023 83.25 6 0 0 0 1 0 0 0 -1.25 box2-7.dat
0 BFC INVERTNEXT
1 16 30 16.05115 86.147 6 0 0 0 -1.55115 0 0 0 -1.647 box2-5.dat
1 16 30 13.4146 88.2435 0 0 6 1.0854 0 0 -.4495 -1 0 rect2p.dat
1 16 30 11.1646 88.8465 0 0 6 1.1646 0 0 -.1535 -1 0 rect2p.dat
5 24 36 10 89 24 10 89 24 4 89 24 12.3292 88.693
5 24 24 12.3292 88.693 36 12.3292 88.693 24 14.5 87.794 36 10 89
1 16 30 7 89 0 0 6 3 0 0 0 -1 0 rect2p.dat

0 // outside
1 16 30 8 80 10 0 0 0 -8 0 0 0 -40 box2-5.dat
4 16 20 0 120 40 0 120 40 24 120 20 16 120
2 24 40 0 120 40 24 120
2 24 20 16 120 20 0 120
2 24 20 24 77 20 24 40

4 16 40 10 86 40 24 120 40 0 120 40 4 86
3 16 40 10 86 40 16 86 40 24 120
4 16 40 24 120 40 16 86 40 16 80 40 24 80
4 16 40 16 80 40 16 74 40 24 40 40 24 80
4 16 40 16 74 40 10 74 40 16 40 40 24 40
4 16 40 10 74 40 4 74 40 0 40 40 16 40
4 16 40 4 74 40 4 80 40 0 120 40 0 40
3 16 40 0 120 40 4 80 40 4 86

4 16 20 0 120 20 16 120 20 10 84 20 6 84
3 16 20 10 84 20 16 120 20 14 84
4 16 20 16 120 20 16 80 20 14 80 20 14 84
3 16 20 14 80 20 16 80 20 14 76
4 16 20 24 77 20 14 76 20 16 80 20 24 80
3 16 20 14 76 20 24 77 20 24 40
4 16 20 16 40 20 10 76 20 14 76 20 24 40
4 16 20 10 76 20 16 40 20 0 40 20 6 76
4 16 20 6 76 20 0 40 20 0 120 20 6 80
3 16 20 6 80 20 0 120 20 6 84

0 // bottom
0 BFC INVERTNEXT
1 16 30 24 110 6 0 0 0 -20 0 0 0 6 box5.dat
1 16 38 25.5 80 2 0 0 0 0 1.5 0 -1 0 rect.dat
1 16 40 25.5 60 0 -1 0 1.5 0 0 0 0 20 rect1.dat
1 16 22 25.5 80 0 0 2 1.5 0 0 0 -1 0 rect3.dat
1 16 20 25.5 78.5 0 1 0 0 0 1.5 1.5 0 0 rect3.dat
3 16 24 24 116 20 24 116 40 24 120
3 16 24 24 116 40 24 120 36 24 116
4 16 24 24 100 24 24 104 36 24 104 36 24 100
3 16 36 24 104 36 24 116 40 24 120
4 16 40 24 120 40 24 80 36 24 100 36 24 104
3 16 36 24 80 36 24 100 40 24 80
4 16 36 27 40 24 27 40 24 27 44 36 27 44
3 16 36 27 44 40 27 40 36 27 40
4 16 36 27 80 40 27 80 40 27 40 36 27 44
4 16 24 27 44 20 27 77 20 27 80 24 27 80
4 16 24 24 104 20 24 108 20 24 116 24 24 116
3 16 20 24 108 24 24 104 20 24 106
4 16 24 24 104 24 24 100 20 24 94 20 24 106
4 16 20 24 94 24 24 100 24 24 80 20 24 92
3 16 20 24 92 24 24 80 20 24 84
3 16 20 24 84 24 24 80 20 24 80
3 16 20 27 77 6 27 66 0 27 66
2 24 36 24 80 36 24 100
2 24 36 27 80 36 27 44
2 24 24 24 80 24 24 100
2 24 24 27 44 24 27 80

0 // inside
0 BFC INVERTNEXT
1 16 30 15.5 57.5 6 0 0 0 -11.5 0 0 0 -13.5 box2-5.dat
0 BFC INVERTNEXT
1 16 30 14 94.5 6 0 0 0 -10 0 0 0 5.5 box2-5.dat
4 16 24 24 100 24 4 100 24 4 89 24 10 89
3 16 24 24 100 24 10 89 24 14.5 87.794
4 16 24 24 100 24 14.5 87.794 24 14.5 84.5 24 17.6023 84.5
4 16 24 17.6023 84.5 24 17.6023 82 24 24 80 24 24 100
4 16 24 24 80 24 17.6023 82 24 15.6023 82 24 16 80
4 16 24 16 80 24 15.6023 78 24 17.6023 78 24 24 80
3 16 24 24 80 24 17.6023 78 24 27 80
4 16 24 17.6023 78 24 17.6023 75.5 24 27 44 24 27 80
4 16 24 27 44 24 17.6023 75.5 24 14.5 75.5 24 14.5 72.206
3 16 24 27 44 24 14.5 72.206 24 10 71
4 16 24 4 71 24 4 44 24 27 44 24 10 71
4 16 36 4 89 36 4 100 36 24 100 36 10 89
3 16 36 10 89 36 24 100 36 14.5 87.794
4 16 36 14.5 87.794 36 24 100 36 17.6023 84.5 36 14.5 84.5
4 16 36 17.6023 82 36 17.6023 84.5 36 24 100 36 24 80
4 16 36 17.6023 82 36 24 80 36 16 80 36 15.6023 82
4 16 36 16 80 36 24 80 36 17.6023 78 36 15.6023 78
3 16 36 17.6023 78 36 24 80 36 27 80
4 16 36 17.6023 75.5 36 17.6023 78 36 27 80 36 27 44
4 16 36 14.5 75.5 36 17.6023 75.5 36 27 44 36 14.5 72.206
3 16 36 14.5 72.206 36 27 44 36 10 71
4 16 36 27 44 36 4 44 36 4 71 36 10 71

0 // step plate
1 16 20 20 100 0 0 -1 0 -1 0 1 0 0 2-4stud4.dat
1 16 20 22 88 0 1 0 2 0 0 0 0 4 rect.dat
1 16 20 22 100 0 1 0 2 0 0 0 0 6 rect.dat
1 16 20 22 112 0 1 0 2 0 0 0 0 4 rect.dat

0 // side plate
1 16 40 20 20 0 0 1 0 -1 0 -1 0 0 2-4stud4.dat
1 16 40 22 27 0 1 0 0 0 2 1 0 0 recte3.dat
1 16 40 22 13 0 1 0 0 0 2 1 0 0 recte3.dat
1 16 40 22 7 0 1 0 0 0 2 1 0 0 recte3.dat
2 24 40 24 40 40 24 36
3 16 40 24 40 40 24 36 40 27 40
4 16 60 24 40 56 24 36 40 24 36 40 24 40
