Unofficial File parts/s/5382s00.dat
File Header:

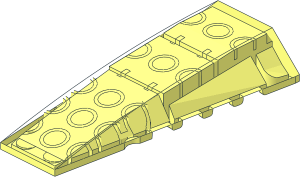

0 ~Wedge 8 x 4 Triple Curved without Studs without Top
0 Name: s\5382s00.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\5382s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\5382s01.dat
2 24 20 0 40 -20 0 40
1 16 0 8 38 -20 0 0 0 -1 0 0 0 2 rect.dat
4 16 -20 8 40 -20 0 40 20 0 40 20 8 40
2 24 -20 3.3 0 -20 2 11
2 24 -20 3.6 -3 -20 7 -40
2 24 -20 2 36 20 2 36
2 24 -20 2 36 -20 2 11
2 24 20 2 36 20 2 11
4 16 20 2 36 20 2 11 -20 2 11 -20 2 36
4 16 -20 3.3 0 -20 2 11 20 2 11 20 3.3 0
4 16 -20 3.6 -3 20 3.6 -3 20 7 -40 -20 7 -40
1 16 0 9.65 0 -20 0 0 0 0 -6.35 0 -1 0 rect3.dat
1 16 0 15.5 -40 0 0 -20 8.5 0 0 0 -1 0 rect.dat
1 16 0 9.8 -3 20 0 0 0 0 -6.2 0 1 0 rect3.dat
1 16 0 16 -1.5 0 0 -20 0 -1 0 -1.5 0 0 rect.dat
1 16 0 5 36 0 0 -20 -3 0 0 0 1 0 rect2p.dat
1 16 0 2 20 1 0 0 0 -1.5 0 0 0 1 stud4.dat
1 16 0 5.8973 -20 1 0 0 0 -2.52568 0 0 0 1 stud4a.dat
1 16 0 5.8973 -20 0 0 1 0 .7351 0 -1 0 0 stud4s.dat
4 16 -16.9077 11.3 -70 -18.222 7.3 -42 18.222 7.3 -42 16.9077 11.3 -70
4 16 -16.9077 11.3 -70 16.9077 11.3 -70 16.6226 19 -108 -16.6226 19 -108
2 24 18.222 7.3 -42 -18.222 7.3 -42
2 24 -26.6015 24 -42 26.6015 24 -42
4 16 18.222 7.3 -42 -18.222 7.3 -42 -26.6015 24 -42 26.6015 24 -42
4 16 20 24 -40 26.6015 24 -42 -26.6015 24 -42 -20 24 -40
1 16 0 11.0143 -60 1 0 0 0 -3.24643 0 0 0 1 stud4a.dat
1 16 0 14.9474 -80 1 0 0 0 -2.26316 0 0 0 1 stud4a.dat
1 16 0 19 -100 1 0 0 0 -1.25 0 0 0 1 stud4a.dat
1 16 0 11.0143 -60 0 0 1 0 1.14285 0 -1 0 0 stud4s.dat
1 16 0 14.9474 -80 0 0 1 0 1.62105 0 -1 0 0 stud4s.dat
1 16 0 19 -100 0 0 1 0 1.62105 0 -1 0 0 stud4s.dat
1 16 0 22 -120 -20 0 0 0 0 2 0 1 0 rect.dat
4 16 -20 24 -120 -16 24 -116 16 24 -116 20 24 -120
1 16 0 22.5 -116 0 0 16 -1.5 0 0 0 -1 0 rect.dat
2 24 -17 20 -110 17 20 -110
4 16 17 20 -110 -17 20 -110 -16.6226 19 -108 16.6226 19 -108
4 16 -4 20 -110 4 20 -110 4 21 -116 -4 21 -116
5 24 -16.9077 11.3 -70 16.9077 11.3 -70 -18.222 7.3 -42 16.6226 19 -108
5 24 -20 2 11 20 2 11 20 3.3 0 -20 2 36
5 24 -16.6226 19 -108 16.6226 19 -108 17 20 -110 -16.9077 11.3 -70
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has uncertified subfiles
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 5.8973 -20 1 0 0 0 -2.52568 0 0 0 1 stud4a.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 11.0143 -60 1 0 0 0 -3.24643 0 0 0 1 stud4a.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 14.9474 -80 1 0 0 0 -2.26316 0 0 0 1 stud4a.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 11.0143 -60 0 0 1 0 1.14285 0 -1 0 0 stud4s.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 14.9474 -80 0 0 1 0 1.62105 0 -1 0 0 stud4s.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 19 -100 0 0 1 0 1.62105 0 -1 0 0 stud4s.dat
Current Votes:
None
Official parents and subparts
