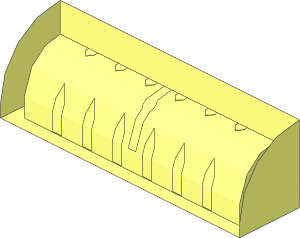

~Brick 1 x 4 with Curved Top without Understuds without Patternable Surfaces

File Header:

0 ~Brick 1 x 4 with Curved Top without Understuds without Patternable Surfaces
0 Name: s\5849s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2026-01-15 [GeraldLasser] based on 37352s01 by [Philo]

Show contents

0 // bottom
4 16 40 24 10 36 24 6 -36 24 6 -40 24 10
4 16 -40 24 10 -36 24 6 -36 24 -6 -40 24 -10
4 16 -40 24 -10 -36 24 -6 36 24 -6 40 24 -10
4 16 40 24 -10 36 24 -6 36 24 6 40 24 10

1 16 0 15 6 36 0 0 0 0 9 0 1 0 rect.dat
1 16 0 21 -6 36 0 0 0 0 3 0 -1 0 rect3.dat
4 16 36 6 6 36 24 6 36 24 -6 36 18 -6
4 16 -36 18 -6 -36 24 -6 -36 24 6 -36 6 6
2 24 36 24 6 36 24 -6
2 24 -36 24 -6 -36 24 6

4 16 36 11 -3.5 36 18 -6 -36 18 -6 -36 11 -3.5
4 16 36 11 -3.5 -36 11 -3.5 -36 7 1 36 7 1
4 16 36 6 6 36 7 1 -36 7 1 -36 6 6
4 16 36 11 -3.5 36 7 1 36 6 6 36 18 -6
4 16 -36 7 1 -36 11 -3.5 -36 18 -6 -36 6 6
2 24 36 7 1 36 6 6
2 24 36 11 -3.5 36 18 -6
2 24 36 11 -3.5 36 7 1
2 24 -36 7 1 -36 6 6
2 24 -36 11 -3.5 -36 18 -6
2 24 -36 11 -3.5 -36 7 1
5 24 36 7 1 -36 7 1 36 6 6 -36 11 -3.5
5 24 36 11 -3.5 -36 11 -3.5 36 7 1 -36 18 -6
5 24 -36 18 -6 36 18 -6 36 11 -3.5 36 24 -6

0 // Fillets
1 16 5 23.8 6 1 0 0 0 17.8 0 0 0 -1 ridgea.dat
1 16 15 23.8 6 1 0 0 0 17.8 0 0 0 -1 ridgea.dat
1 16 25 23.8 6 1 0 0 0 17.8 0 0 0 -1 ridgea.dat
1 16 -5 23.8 6 1 0 0 0 17.8 0 0 0 -1 ridgea.dat
1 16 -15 23.8 6 1 0 0 0 17.8 0 0 0 -1 ridgea.dat
1 16 -25 23.8 6 1 0 0 0 17.8 0 0 0 -1 ridgea.dat
1 16 5 6 6 1 0 0 0 1 .2 0 0 -1 ridgee.dat
1 16 15 6 6 1 0 0 0 1 .2 0 0 -1 ridgee.dat
1 16 25 6 6 1 0 0 0 1 .2 0 0 -1 ridgee.dat
1 16 -5 6 6 1 0 0 0 1 .2 0 0 -1 ridgee.dat
1 16 -15 6 6 1 0 0 0 1 .2 0 0 -1 ridgee.dat
1 16 -25 6 6 1 0 0 0 1 .2 0 0 -1 ridgee.dat

1 16 5 23.8 -6 1 0 0 0 5.8 0 0 0 1 ridgea.dat
1 16 15 23.8 -6 1 0 0 0 5.8 0 0 0 1 ridgea.dat
1 16 25 23.8 -6 1 0 0 0 5.8 0 0 0 1 ridgea.dat
1 16 -5 23.8 -6 1 0 0 0 5.8 0 0 0 1 ridgea.dat
1 16 -15 23.8 -6 1 0 0 0 5.8 0 0 0 1 ridgea.dat
1 16 -25 23.8 -6 1 0 0 0 5.8 0 0 0 1 ridgea.dat
1 16 5 18 -6 1 0 0 0 7 0 0 0 1 ridgesu.dat
1 16 15 18 -6 1 0 0 0 7 0 0 0 1 ridgesu.dat
1 16 25 18 -6 1 0 0 0 7 0 0 0 1 ridgesu.dat
1 16 -5 18 -6 1 0 0 0 7 0 0 0 1 ridgesu.dat
1 16 -15 18 -6 1 0 0 0 7 0 0 0 1 ridgesu.dat
1 16 -25 18 -6 1 0 0 0 7 0 0 0 1 ridgesu.dat

0 // Centre Reinforcement
4 16 1.25 18 -1.25 1.25 18 -6 -1.25 18 -6 -1.25 18 -1.25
4 16 1.6 18 -.7 1.25 18 -1.25 -1.25 18 -1.25 -1.6 18 -.7
4 16 -1.75 18 0 1.75 18 0 1.6 18 -.7 -1.6 18 -.7
4 16 1.6 18 .7 1.75 18 0 -1.75 18 0 -1.6 18 .7
4 16 -1.6 18 .7 -1.25 18 1.25 1.25 18 1.25 1.6 18 .7
4 16 1.25 18 6 1.25 18 1.25 -1.25 18 1.25 -1.25 18 6
2 24 -1.25 18 6 1.25 18 6
2 24 -1.25 18 -6 1.25 18 -6

4 16 1.75 18 0 1.6 18 .7 1.6 7.2667 .7 1.75 7.8889 0
4 16 1.25 18 1.25 1.4091 7 1 1.6 7.2667 .7 1.6 18 .7
3 16 1.25 6.95 1.25 1.4091 7 1 1.25 18 1.25
4 16 1.25 18 -1.25 1.6 18 -.7 1.6 8.5111 -.7 1.25 9 -1.25
4 16 1.6 18 -.7 1.75 18 0 1.75 7.8889 0 1.6 8.5111 -.7
4 16 1.25 6.95 1.25 1.25 18 1.25 1.25 18 6 1.25 6 6
4 16 1.25 18 -1.25 1.25 9 -1.25 1.25 11 -3.5 1.25 18 -6
2 24 1.25 18 1.25 1.25 18 6
2 24 1.25 18 1.25 1.25 6.95 1.25
2 24 1.25 18 -1.25 1.25 9 -1.25
2 24 1.25 9 -1.25 1.6 8.5111 -.7
2 24 1.6 8.5111 -.7 1.75 7.8889 0
2 24 1.75 7.8889 0 1.6 7.2667 .7
2 24 1.4091 7 1 1.25 6.95 1.25
2 24 1.6 7.2667 .7 1.4091 7 1
2 24 1.25 18 1.25 1.6 18 .7
2 24 1.6 18 .7 1.75 18 0
2 24 1.25 18 -1.25 1.6 18 -.7
2 24 1.6 18 -.7 1.75 18 0
2 24 1.25 18 -6 1.25 18 -1.25
2 24 1.25 6 6 1.25 18 6
2 24 1.25 6.95 1.25 1.25 6 6
2 24 1.25 11 -3.5 1.25 9 -1.25
2 24 1.25 18 -6 1.25 11 -3.5
5 24 1.6 7.2667 .7 1.6 18 .7 1.75 7.8889 0 1.25 18 1.25
5 24 1.6 18 -.7 1.6 8.5111 -.7 1.25 9 -1.25 1.75 18 0
5 24 1.75 18 0 1.75 7.8889 0 1.6 18 .7 1.6 8.5111 -.7

4 16 -1.6 7.2667 .7 -1.6 18 .7 -1.75 18 0 -1.75 7.8889 0
4 16 -1.6 7.2667 .7 -1.4091 7 1 -1.25 18 1.25 -1.6 18 .7
3 16 -1.4091 7 1 -1.25 6.95 1.25 -1.25 18 1.25
4 16 -1.6 8.5111 -.7 -1.6 18 -.7 -1.25 18 -1.25 -1.25 9 -1.25
4 16 -1.75 7.8889 0 -1.75 18 0 -1.6 18 -.7 -1.6 8.5111 -.7
4 16 -1.25 18 6 -1.25 18 1.25 -1.25 6.95 1.25 -1.25 6 6
4 16 -1.25 11 -3.5 -1.25 9 -1.25 -1.25 18 -1.25 -1.25 18 -6
2 24 -1.25 18 6 -1.25 18 1.25
2 24 -1.25 6.95 1.25 -1.25 18 1.25
2 24 -1.25 9 -1.25 -1.25 18 -1.25
2 24 -1.6 8.5111 -.7 -1.25 9 -1.25
2 24 -1.75 7.8889 0 -1.6 8.5111 -.7
2 24 -1.6 7.2667 .7 -1.75 7.8889 0
2 24 -1.25 6.95 1.25 -1.4091 7 1
2 24 -1.4091 7 1 -1.6 7.2667 .7
2 24 -1.6 18 .7 -1.25 18 1.25
2 24 -1.75 18 0 -1.6 18 .7
2 24 -1.6 18 -.7 -1.25 18 -1.25
2 24 -1.75 18 0 -1.6 18 -.7
2 24 -1.25 18 -1.25 -1.25 18 -6
2 24 -1.25 18 6 -1.25 6 6
2 24 -1.25 6 6 -1.25 6.95 1.25
2 24 -1.25 9 -1.25 -1.25 11 -3.5
2 24 -1.25 11 -3.5 -1.25 18 -6
5 24 -1.6 18 .7 -1.6 7.2667 .7 -1.75 7.8889 0 -1.25 18 1.25
5 24 -1.6 8.5111 -.7 -1.6 18 -.7 -1.25 9 -1.25 -1.75 18 0
5 24 -1.75 7.8889 0 -1.75 18 0 -1.6 18 .7 -1.6 8.5111 -.7

0 // Outside
1 16 40 20 10 0 -1 0 0 0 -20 -20 0 0 1-4chrde.dat
1 16 -40 20 10 0 1 0 0 0 -20 -20 0 0 1-4chrde.dat
4 16 -40 24 10 -40 24 -10 -40 20 -10 -40 0 10
4 16 40 24 -10 40 24 10 40 0 10 40 20 -10

2 24 -40 24 10 -40 24 -10
2 24 40 24 -10 40 24 10
1 16 0 12 10 -40 0 0 0 0 -12 0 -1 0 rect.dat
2 24 -40 24 -10 40 24 -10
2 24 -40 24 -10 -40 20 -10
2 24 40 24 -10 40 20 -10

Status:

Needs 2 More Votes (N)

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder
Has uncertified subfiles

p/ridgesu.dat (Needs 2 More Votes)

This part has the following warnings

Number in description may need a leading space

Current Votes:

None

Official parents and subparts

Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2026-01-15 09:59:15

Rene Rechthaler [Blechtaler]

made the following comment.

2026-01-15 11:12:02

should the cavity use s\5854s02.dat?
should s\37352s01.dat and the "old" 1.333 high one s\10314s01.dat (with longer walls) also use that?
(s\6191s01.dat is also wildly wrong, didnt find any physical pics of 6191 with round bottom studs)

Gerald Lasser [GeraldLasser]

made the following comment.

2026-01-15 13:21:27

Philo will address 6191

I simplified the inner curve here to have less surfaces and lines for the ridges
