Unofficial File parts/s/10314s01.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

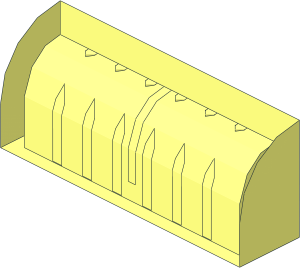

0 ~Brick 1 x 4 x 1.333 with Curved Top with Raised Middle Reinforcer without Front Surface
0 Name: s\10314s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2017-12-02 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2018-12-08 [PTadmin] Official Update 2018-02
0 !HISTORY 2026-01-16 [Philo] Used common geometry subpart, added middle reinforcerShow file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\6191s02.dat
1 16 0 27 0 0 0 -1.25 0 -1 0 -6 0 0 rect.dat
4 16 -1.25 27 -6 -1.25 7 1 -1.25 6 6 -1.25 27 6
4 16 -1.25 27 -6 -1.25 18 -6 -1.25 11 -3.5 -1.25 7 1
2 24 -1.25 27 6 -1.25 6 6
2 24 -1.25 6 6 -1.25 7 1
2 24 -1.25 7 1 -1.25 11 -3.5
2 24 -1.25 11 -3.5 -1.25 18 -6
4 16 1.25 27 -6 1.25 27 6 1.25 6 6 1.25 7 1
4 16 1.25 27 -6 1.25 7 1 1.25 11 -3.5 1.25 18 -6
2 24 1.25 6 6 1.25 27 6
2 24 1.25 7 1 1.25 6 6
2 24 1.25 11 -3.5 1.25 7 1
2 24 1.25 18 -6 1.25 11 -3.5
2 24 1.25 18 -6 1.25 27 -6
2 24 -1.25 18 -6 -1.25 27 -6Status
Needs 2 More Votes (F)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Archived Part Events:
Philippe Hurbain [Philo]
initially submitted the part.
2026-01-16 09:40:28
