Unofficial File parts/7469.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

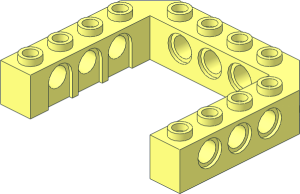

0 Technic Brick 6 x 5 Double Corner with Holes
0 Name: 7469.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Technic
0 !KEYWORDS Brickowl 562192, C-Shape, U-Shape
0 !HISTORY 2026-01-16 [Blechtaler] made from 32555.datShow file code:
1 16 50 0 -10 0 0 1 0 1 0 1 0 0 s\32555s01.dat
1 16 -50 0 -10 0 0 -1 0 1 0 1 0 0 s\32555s01.dat
1 16 40 0 30 -1 0 0 0 1 0 0 0 1 s\32555s02.dat
1 16 -40 0 30 1 0 0 0 1 0 0 0 1 s\32555s02.dat
1 16 50 12 -50 10 0 0 0 0 12 0 1 0 rect.dat
1 16 -50 12 -50 10 0 0 0 0 12 0 1 0 rect.dat
4 16 44 24 -46 56 24 -46 60 24 -50 40 24 -50
4 16 -60 24 -50 -56 24 -46 -44 24 -46 -40 24 -50
1 16 50 0 -10 1 0 0 0 1 0 0 0 1 stug2-4x1.dat
1 16 0 0 40 1 0 0 0 1 0 0 0 1 stug2-1x4.dat
1 16 -50 0 -10 1 0 0 0 1 0 0 0 1 stug2-4x1.dat
0 // center section
1 16 20 0 40 20 0 0 0 1 0 0 0 10 rect2p.dat
1 16 -20 0 40 20 0 0 0 1 0 0 0 10 rect2p.dat
0 // connholes
1 16 20 10 50 8 0 0 0 0 8 0 -1 0 4-4ndis.dat
1 16 20 10 50 1 0 0 0 0 1 0 -1 0 peghole.dat
0 BFC INVERTNEXT
1 16 20 10 32 6 0 0 0 0 6 0 16 0 4-4cyli.dat
1 16 20 10 30 1 0 0 0 0 1 0 1 0 peghole.dat
1 16 20 10 30 8 0 0 0 0 8 0 1 0 4-4ndis.dat
1 16 0 10 50 8 0 0 0 0 8 0 -1 0 4-4ndis.dat
1 16 0 10 50 1 0 0 0 0 1 0 -1 0 peghole.dat
0 BFC INVERTNEXT
1 16 0 10 32 6 0 0 0 0 6 0 16 0 4-4cyli.dat
1 16 0 10 30 1 0 0 0 0 1 0 1 0 peghole.dat
1 16 0 10 30 8 0 0 0 0 8 0 1 0 4-4ndis.dat
1 16 -20 10 50 8 0 0 0 0 8 0 -1 0 4-4ndis.dat
1 16 -20 10 50 1 0 0 0 0 1 0 -1 0 peghole.dat
0 BFC INVERTNEXT
1 16 -20 10 32 6 0 0 0 0 6 0 16 0 4-4cyli.dat
1 16 -20 10 30 1 0 0 0 0 1 0 1 0 peghole.dat
1 16 -20 10 30 8 0 0 0 0 8 0 1 0 4-4ndis.dat
0 // sides
4 16 -8 2 30 -12 2 30 -12 10 30 -8 10 30
4 16 12 2 30 8 2 30 8 10 30 12 10 30
4 16 -8 10 30 -12 10 30 -12 18 30 -8 18 30
4 16 12 18 30 12 10 30 8 10 30 8 18 30
4 16 8 10 50 8 2 50 12 2 50 12 10 50
4 16 8 18 50 8 10 50 12 10 50 12 18 50
4 16 -12 10 50 -12 2 50 -8 2 50 -8 10 50
4 16 -12 18 50 -12 10 50 -8 10 50 -8 18 50
4 16 -28 18 50 -40 24 50 -40 0 50 -28 10 50
3 16 -28 10 50 -40 0 50 -28 2 50
3 16 -28 2 50 -40 0 50 -20 2 50
4 16 0 0 50 -12 2 50 -20 2 50 -40 0 50
3 16 0 0 50 -8 2 50 -12 2 50
3 16 0 0 50 0 2 50 -8 2 50
3 16 8 2 50 0 2 50 0 0 50
3 16 12 2 50 8 2 50 0 0 50
4 16 20 2 50 12 2 50 0 0 50 40 0 50
3 16 20 2 50 40 0 50 28 2 50
3 16 28 2 50 40 0 50 28 10 50
4 16 40 0 50 40 24 50 28 18 50 28 10 50
3 16 28 18 50 40 24 50 20 18 50
3 16 20 18 50 40 24 50 12 18 50
3 16 12 18 50 40 24 50 8 18 50
4 16 8 18 50 40 24 50 -40 24 50 0 18 50
3 16 0 18 50 -40 24 50 -8 18 50
3 16 -8 18 50 -40 24 50 -12 18 50
3 16 -12 18 50 -40 24 50 -20 18 50
3 16 -20 18 50 -40 24 50 -28 18 50
4 16 28 18 30 40 24 30 40 0 30 28 10 30
3 16 28 10 30 40 0 30 28 2 30
3 16 28 2 30 40 0 30 20 2 30
4 16 20 2 30 40 0 30 0 0 30 12 2 30
3 16 0 0 30 8 2 30 12 2 30
3 16 0 0 30 0 2 30 8 2 30
3 16 -12 2 30 -8 2 30 0 0 30
4 16 -20 2 30 -12 2 30 0 0 30 -40 0 30
3 16 -8 2 30 0 2 30 0 0 30
3 16 -20 2 30 -40 0 30 -28 2 30
3 16 -28 2 30 -40 0 30 -28 10 30
4 16 -40 0 30 -40 24 30 -28 18 30 -28 10 30
3 16 -28 18 30 -40 24 30 -20 18 30
3 16 -20 18 30 -40 24 30 -12 18 30
3 16 -12 18 30 -40 24 30 -8 18 30
4 16 40 24 30 0 18 30 -8 18 30 -40 24 30
3 16 0 18 30 40 24 30 8 18 30
3 16 8 18 30 40 24 30 12 18 30
3 16 12 18 30 40 24 30 20 18 30
3 16 20 18 30 40 24 30 28 18 30
0 // inside
1 16 20 10 34 8 0 0 0 0 8 0 12 0 2-4cylo.dat
1 16 20 10 46 8 0 0 0 0 8 0 1 0 2-4ndis.dat
1 16 20 10 34 8 0 0 0 0 8 0 -1 0 2-4ndis.dat
1 16 0 10 34 8 0 0 0 0 8 0 12 0 2-4cylo.dat
1 16 0 10 46 8 0 0 0 0 8 0 1 0 2-4ndis.dat
1 16 0 10 34 8 0 0 0 0 8 0 -1 0 2-4ndis.dat
1 16 -20 10 34 8 0 0 0 0 8 0 12 0 2-4cylo.dat
1 16 -20 10 46 8 0 0 0 0 8 0 1 0 2-4ndis.dat
1 16 -20 10 34 8 0 0 0 0 8 0 -1 0 2-4ndis.dat
0 BFC INVERTNEXT
1 16 10 10 40 2 0 0 0 -6 0 0 0 6 box5-4a.dat
0 BFC INVERTNEXT
1 16 -10 10 40 2 0 0 0 -6 0 0 0 6 box5-4a.dat
4 16 -12 18 46 -8 18 46 -8 10 46 -12 10 46
4 16 8 18 46 12 18 46 12 10 46 8 10 46
4 16 12 18 34 8 18 34 8 10 34 12 10 34
4 16 -8 18 34 -12 18 34 -12 10 34 -8 10 34
0 BFC INVERTNEXT
1 16 32 14 40 0 0 4 0 -10 0 6 0 0 box2-7.dat
0 BFC INVERTNEXT
1 16 -32 14 40 0 0 -4 0 -10 0 6 0 0 box2-7.dat
1 16 28 7 40 0 -1 0 0 0 -3 6 0 0 rect3.dat
1 16 -28 7 40 0 1 0 0 0 -3 6 0 0 rect3.dat
1 16 0 24 40 36 0 0 0 1 0 0 0 6 recte4.dat
3 16 28 4 46 28 10 46 36 4 46
4 16 28 18 46 36 24 46 36 4 46 28 10 46
3 16 36 24 46 28 18 46 20 18 46
3 16 36 24 46 20 18 46 12 18 46
3 16 36 24 46 12 18 46 8 18 46
4 16 -36 24 46 36 24 46 8 18 46 0 18 46
3 16 -36 24 46 0 18 46 -8 18 46
3 16 -36 24 46 -8 18 46 -12 18 46
3 16 -36 24 46 -12 18 46 -20 18 46
3 16 -36 24 46 -20 18 46 -28 18 46
4 16 -28 18 46 -28 10 46 -36 4 46 -36 24 46
3 16 -36 4 46 -28 10 46 -28 4 46
3 16 -28 4 34 -28 10 34 -36 4 34
4 16 -28 18 34 -36 24 34 -36 4 34 -28 10 34
3 16 -36 24 34 -28 18 34 -20 18 34
3 16 -36 24 34 -20 18 34 -12 18 34
3 16 -36 24 34 -12 18 34 -8 18 34
4 16 36 24 34 -36 24 34 -8 18 34 0 18 34
3 16 36 24 34 0 18 34 8 18 34
3 16 36 24 34 8 18 34 12 18 34
3 16 36 24 34 12 18 34 20 18 34
3 16 36 24 34 20 18 34 28 18 34
4 16 28 18 34 28 10 34 36 4 34 36 24 34
3 16 36 4 34 28 10 34 28 4 34
0 // bottom
1 16 -20 18 40 1 0 0 0 -1.5 0 0 0 1 stud3a.dat
1 16 -20 18 40 1 0 0 0 1 0 0 0 1 cylj4x8.dat
1 16 0 18 40 1 0 0 0 -1.5 0 0 0 1 stud3a.dat
1 16 0 18 40 1 0 0 0 1 0 0 0 1 cylj4x8.dat
1 16 20 18 40 1 0 0 0 -1.5 0 0 0 1 stud3a.dat
1 16 20 18 40 1 0 0 0 1 0 0 0 1 cylj4x8.dat
2 24 -40 24 50 40 24 50
2 24 40 24 30 -40 24 30
4 16 40 24 50 36 24 46 -36 24 46 -40 24 50
4 16 -40 24 30 -36 24 34 36 24 34 40 24 30Status
Needs 2 More Votes (N)
Current Votes:
No recorded votesPart Dependencies
Official parents and subparts
Part Events
Rene Rechthaler [Blechtaler]
initially submitted the part.
2026-01-16 17:35:56
Rene Rechthaler [Blechtaler]
posted a vote of Hold
2026-01-16 17:37:18
hold until physical release
needs renumbering/renaming when the real part number gets out
needs renumbering/renaming when the real part number gets out
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2026-01-17 00:07:47
I realized that the center inside has normal pegholes instead of long ones
Rene Rechthaler [Blechtaler]
posted a vote of Hold
2026-01-17 00:07:59
reinstating hold
Philippe Hurbain [Philo]
renamed the part.
2026-02-09 09:03:51
"parts/u9380.dat" to "parts/7469.dat"
Philippe Hurbain [Philo]
made the following comment.
2026-02-09 09:03:58
Got the part number, still needs confirmation.
Philippe Hurbain [Philo]
edited the part header.
2026-02-12 07:42:46
Header Edits
keywords:
to
Education, Science, Computer and AI, C-Shape, U-Shape
Philippe Hurbain [Philo]
edited the part header.
2026-02-13 13:02:04
Header Edits
keywords:
C-Shape, Computer and AI, Education, Science, U-Shape
to
C-Shape, U-Shape
Philippe Hurbain [Philo]
made the following comment.
2026-04-01 07:56:57
Now released...
Rene Rechthaler [Blechtaler]
cancelled their vote.
2026-04-01 10:07:04
thanks for the reminder
Philippe Hurbain [Philo]
posted a vote of Certify
2026-04-01 13:26:57
Could be hugely simplified with some T-junctions but...
Gerald Lasser [GeraldLasser]
posted a vote of Certify
2026-04-02 08:23:45
Magnus Forsberg [MagFors]
posted a vote of Hold
2026-04-12 12:13:12
Overlapping surfaces.
I agree with Philo.
I agree with Philo.
Rene Rechthaler [Blechtaler]
submitted a new version of the part (all votes reset).
2026-04-17 10:02:45
fixed overlaps
needs confirmation of the stud logo orientation
