Unofficial File parts/s/85080b01.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

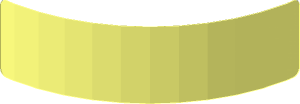

0 ~Sticker Back 0.8 x 3.0 (Formed)
0 Name: s\85080b01.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCWShow file code:
0 // Primitives
1 16 29.7979 -6.5 6.9331 0 1 .0986 -1.5 0 0 0 0 1.4968 1-4chrd.dat
1 16 29.7979 6.5 6.9331 0 1 .0986 1.5 0 0 0 0 1.4968 1-4chrd.dat
1 16 -6.9331 -6.5 -29.7979 -1.4968 1 0 0 0 -1.5 -.0986 0 0 1-4chrd.dat
1 16 -6.9331 6.5 -29.7979 -1.4968 1 0 0 0 1.5 -.0986 0 0 1-4chrd.dat
1 16 29.7979 -6.5 6.9331 0 .2495 .0986 -1.5 0 0 0 -.0164 1.4968 1-4cyli.dat
1 16 29.7979 6.5 6.9331 0 .2495 .0986 1.5 0 0 0 -.0164 1.4968 1-4cyli.dat
1 16 -6.9331 -6.5 -29.7979 -1.4968 .0164 0 0 0 -1.5 -.0986 -.2495 0 1-4cyli.dat
1 16 -6.9331 6.5 -29.7979 -1.4968 .0164 0 0 0 1.5 -.0986 -.2495 0 1-4cyli.dat
0 // Bottom faces
4 16 29.7979 8 6.9331 29.7979 -8 6.9331 29.8965 -6.5 8.4299 29.8965 6.5 8.4299
4 16 29.7979 8 6.9331 29.656 8 4.78 29.656 -8 4.78 29.7979 -8 6.9331
4 16 28.636 8 -.352 28.636 -8 -.352 29.656 -8 4.78 29.656 8 4.78
4 16 28.636 8 -.352 26.956 8 -5.308 26.956 -8 -5.308 28.636 -8 -.352
4 16 24.64 8 -10 24.64 -8 -10 26.956 -8 -5.308 26.956 8 -5.308
4 16 24.64 8 -10 21.736 8 -14.352 21.736 -8 -14.352 24.64 -8 -10
4 16 18.2824 8 -18.2835 18.2824 -8 -18.2835 21.736 -8 -14.352 21.736 8 -14.352
4 16 18.2824 8 -18.2835 14.352 8 -21.736 14.352 -8 -21.736 18.2824 -8 -18.2835
4 16 10 8 -24.64 10 -8 -24.64 14.352 -8 -21.736 14.352 8 -21.736
4 16 10 8 -24.64 5.308 8 -26.956 5.308 -8 -26.956 10 -8 -24.64
4 16 .352 8 -28.636 .352 -8 -28.636 5.308 -8 -26.956 5.308 8 -26.956
4 16 .352 8 -28.636 -4.78 8 -29.656 -4.78 -8 -29.656 .352 -8 -28.636
4 16 -6.9331 8 -29.7979 -6.9331 -8 -29.7979 -4.78 -8 -29.656 -4.78 8 -29.656
4 16 -6.9331 8 -29.7979 -8.4299 6.5 -29.8965 -8.4299 -6.5 -29.8965 -6.9331 -8 -29.7979
0 // Conditional lines
5 24 29.656 8 4.78 29.656 -8 4.78 29.8965 6.5 8.4299 28.636 8 -.352
5 24 28.636 8 -.352 28.636 -8 -.352 29.656 8 4.78 26.956 8 -5.308
5 24 26.956 8 -5.308 26.956 -8 -5.308 28.636 8 -.352 24.64 8 -10
5 24 24.64 8 -10 24.64 -8 -10 26.956 8 -5.308 21.736 8 -14.352
5 24 21.736 8 -14.352 21.736 -8 -14.352 24.64 8 -10 18.284 8 -18.284
5 24 18.2824 8 -18.2835 18.2824 -8 -18.2835 21.736 8 -14.352 14.352 8 -21.736
5 24 14.352 8 -21.736 14.352 -8 -21.736 18.284 8 -18.284 10 8 -24.64
5 24 10 8 -24.64 10 -8 -24.64 14.352 8 -21.736 5.308 8 -26.956
5 24 5.308 8 -26.956 5.308 -8 -26.956 10 8 -24.64 .352 8 -28.636
5 24 .352 8 -28.636 .352 -8 -28.636 5.308 8 -26.956 -4.78 8 -29.656
5 24 -4.78 8 -29.656 -4.78 -8 -29.656 .352 8 -28.636 -8.4299 6.5 -29.8965
0 // Neutral lateral face
4 16 29.8965 6.5 8.4299 29.8965 -6.5 8.4299 30.146 -6.5 8.4135 30.146 6.5 8.4135
4 16 29.656 8 4.78 29.7979 8 6.9331 30.0474 8 6.9167 29.9044 8 4.7473
4 16 29.656 -8 4.78 29.9044 -8 4.7473 30.0474 -8 6.9167 29.7979 -8 6.9331
4 16 29.656 8 4.78 29.9044 8 4.7473 28.878 8 -.4168 28.636 8 -.352
4 16 29.656 -8 4.78 28.636 -8 -.352 28.878 -8 -.4168 29.9044 -8 4.7473
4 16 26.956 8 -5.308 28.636 8 -.352 28.878 8 -.4168 27.1875 8 -5.4039
4 16 26.956 -8 -5.308 27.1875 -8 -5.4039 28.878 -8 -.4168 28.636 -8 -.352
4 16 26.956 8 -5.308 27.1875 8 -5.4039 24.857 8 -10.1252 24.64 8 -10
4 16 26.956 -8 -5.308 24.64 -8 -10 24.857 -8 -10.1252 27.1875 -8 -5.4039
4 16 21.736 8 -14.352 24.64 8 -10 24.857 8 -10.1252 21.9348 8 -14.5045
4 16 21.736 -8 -14.352 21.9348 -8 -14.5045 24.857 -8 -10.1252 24.64 -8 -10
4 16 21.736 8 -14.352 21.9348 8 -14.5045 18.4611 8 -18.4611 18.2824 8 -18.2835
4 16 21.736 -8 -14.352 18.2824 -8 -18.2835 18.4611 -8 -18.4611 21.9348 -8 -14.5045
4 16 14.352 8 -21.736 18.2824 8 -18.2835 18.4611 8 -18.4611 14.5045 8 -21.9348
4 16 14.352 -8 -21.736 14.5045 -8 -21.9348 18.4611 -8 -18.4611 18.2824 -8 -18.2835
4 16 14.352 8 -21.736 14.5045 8 -21.9348 10.1252 8 -24.857 10 8 -24.64
4 16 14.352 -8 -21.736 10 -8 -24.64 10.1252 -8 -24.857 14.5045 -8 -21.9348
4 16 5.308 8 -26.956 10 8 -24.64 10.1252 8 -24.857 5.4039 8 -27.1875
4 16 5.308 -8 -26.956 5.4039 -8 -27.1875 10.1252 -8 -24.857 10 -8 -24.64
4 16 5.308 8 -26.956 5.4039 8 -27.1875 .4168 8 -28.878 .352 8 -28.636
4 16 5.308 -8 -26.956 .352 -8 -28.636 .4168 -8 -28.878 5.4039 -8 -27.1875
4 16 -4.78 8 -29.656 .352 8 -28.636 .4168 8 -28.878 -4.7473 8 -29.9044
4 16 -4.78 -8 -29.656 -4.7473 -8 -29.9044 .4168 -8 -28.878 .352 -8 -28.636
4 16 -4.78 8 -29.656 -4.7473 8 -29.9044 -6.9167 8 -30.0474 -6.9331 8 -29.7979
4 16 -4.78 -8 -29.656 -6.9331 -8 -29.7979 -6.9167 -8 -30.0474 -4.7473 -8 -29.9044
4 16 -8.4299 6.5 -29.8965 -8.4135 6.5 -30.146 -8.4135 -6.5 -30.146 -8.4299 -6.5 -29.8965
0 // Conditional lines
5 24 29.9044 8 4.7473 29.9044 -8 4.7473 30.146 6.5 8.4135 28.878 8 -.4168
5 24 28.878 8 -.4168 28.878 -8 -.4168 29.9044 8 4.7473 27.1875 8 -5.4039
5 24 27.1875 8 -5.4039 27.1875 -8 -5.4039 28.878 8 -.4168 24.857 8 -10.1252
5 24 24.857 8 -10.1252 24.857 -8 -10.1252 27.1875 8 -5.4039 21.9348 8 -14.5045
5 24 21.9348 8 -14.5045 21.9348 -8 -14.5045 24.857 8 -10.1252 18.4611 8 -18.4611
5 24 18.4611 8 -18.4611 18.4611 -8 -18.4611 21.9348 8 -14.5045 14.5045 8 -21.9348
5 24 14.5045 8 -21.9348 14.5045 -8 -21.9348 18.4611 8 -18.4611 10.1252 8 -24.857
5 24 10.1252 8 -24.857 10.1252 -8 -24.857 14.5045 8 -21.9348 5.4039 8 -27.1875
5 24 5.4039 8 -27.1875 5.4039 -8 -27.1875 10.1252 8 -24.857 .4168 8 -28.878
5 24 .4168 8 -28.878 .4168 -8 -28.878 5.4039 8 -27.1875 -4.7473 8 -29.9044
5 24 -4.7473 8 -29.9044 -4.7473 -8 -29.9044 .4168 8 -28.878 -8.4135 6.5 -30.146Status
Needs 2 More Votes (N)
Current Votes:
No recorded votesPart Dependencies
Official parents and subparts
Part Events
Massimo Maso [Sirio]
initially submitted the part.
2026-01-23 18:10:47
Magnus Forsberg [MagFors]
posted a vote of Certify
2026-09-13 08:32:21
Massimo Maso [Sirio]
submitted a new version of the part (all votes reset).
2026-10-02 17:21:02
