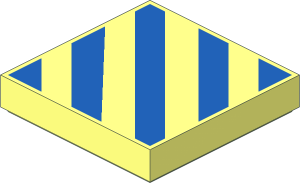

0 Tile 2 x 2 with Blue Diagonal Stripes Pattern
0 Name: 3068bp1b.dat
0 Author: Peter Grass [Evilspyre]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Tile
0 !KEYWORDS Bricklink 3068pb2785, Brickowl 867020, Brickset 114849
0 !KEYWORDS Rebrickable 3068bpr0046, Set 42687Show file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3068bs01.dat
3 16 -20 0 -20 -19 0 -19 -19 0 -10
3 16 -19 0 -19 -20 0 -20 -10 0 -19
3 16 20 0 20 19 0 19 19 0 10
3 16 19 0 19 20 0 20 10 0 19
3 16 19 0 -19 20 0 -20 19 0 -15
3 16 20 0 -20 19 0 -19 15 0 -19
3 16 -19 0 15 -20 0 20 -19 0 7
3 16 -20 0 -20 -19 0 -10 -19 0 -2
3 16 20 0 -20 15 0 -19 6 0 -19
3 16 -10 0 -19 -20 0 -20 -2 0 -19
3 16 19 0 -15 20 0 -20 19 0 -6
3 16 20 0 20 19 0 10 19 0 2
3 16 -20 0 20 -19 0 15 -19 0 19
3 16 -20 0 20 -19 0 19 -15 0 19
3 16 -20 0 20 -15 0 19 -6 0 19
4 16 20 0 -20 6 0 -19 -2 0 -19 -20 0 -20
4 16 19 0 -15 19 0 -6 -6 0 19 -15 0 19
4 16 -19 0 15 -19 0 7 6 0 -19 15 0 -19
4 16 -19 0 -10 -10 0 -19 -2 0 -19 -19 0 -2
4 16 19 0 2 19 0 10 10 0 19 2 0 19
4 16 19 0 2 19 0 -6 20 0 -20 20 0 20
4 16 -19 0 -2 -19 0 7 -20 0 20 -20 0 -20
4 16 -6 0 19 2 0 19 20 0 20 -20 0 20
3 16 2 0 19 10 0 19 20 0 20
3 1 19 0 -15 15 0 -19 19 0 -19
3 1 -19 0 -10 -19 0 -19 -10 0 -19
3 1 19 0 10 19 0 19 10 0 19
3 1 -19 0 15 -15 0 19 -19 0 19
4 1 19 0 -6 19 0 2 2 0 19 -6 0 19
4 1 -19 0 15 15 0 -19 19 0 -15 -15 0 19
4 1 -19 0 7 -19 0 -2 -2 0 -19 6 0 -19Status
Needs 2 More Votes (N)
Current Votes:
No recorded votesPart Dependencies
Official parents and subparts
Part Events
Peter Grass [Evilspyre]
initially submitted the part.
2026-01-23 20:45:16
Rene Rechthaler [Blechtaler]
made the following comment.
2026-01-23 20:56:21
are the lines supposed to be non-parallel?
Rene Rechthaler [Blechtaler]
posted a vote of Hold
2026-01-23 21:57:31
center stripe is at 15/19 at one end and 14/19 at the other...
the outer triangles seem ok, but the medium stripes have totally different coordinates, even one mismatch which causes a gap (2.33 0 19.04 vs 2 0 19)
the outer triangles seem ok, but the medium stripes have totally different coordinates, even one mismatch which causes a gap (2.33 0 19.04 vs 2 0 19)
Peter Grass [Evilspyre]
submitted a new version of the part (all votes reset).
2026-01-23 23:21:19
Peter Grass [Evilspyre]
made the following comment.
2026-01-23 23:22:24
Should be fixed now, I guess I am extra bad at maths today. The stripes now match the original texture dimensions.
Chris Böhnke [KnightOfTarenta]
posted a vote of Hold
2026-01-24 09:01:26
Gap at one side.
Magnus Forsberg [MagFors]
posted a vote of Hold
2026-01-24 09:01:28
Missing surface:
4 5 -19 0 -2 -19 0 7 -20 0 20 -20 0 -20
Gap:
2 5 -6 0 19 2.33 0 19.04
2 5 2.33 0 19.04 20 0 20
4 5 -19 0 -2 -19 0 7 -20 0 20 -20 0 -20
Gap:
2 5 -6 0 19 2.33 0 19.04
2 5 2.33 0 19.04 20 0 20
Peter Grass [Evilspyre]
submitted a new version of the part (all votes reset).
2026-01-24 19:17:16
Peter Grass [Evilspyre]
made the following comment.
2026-01-24 19:17:57
J Fixed the issues. Hopefully none are left.
Rene Rechthaler [Blechtaler]
made the following comment.
2026-01-24 21:22:04
-19 0 7 is different from the other 3 ends at -19 0 6
on the other hand, the stripes/gaps arent equally thick (should they be? if not, should stripe or gap be thicker?)
on the other hand, the stripes/gaps arent equally thick (should they be? if not, should stripe or gap be thicker?)
