Unofficial File parts/s/7654s02.dat
File Header:

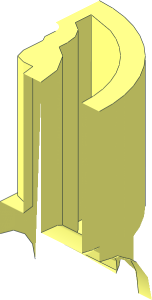

0 ~Brick 2 x 2 x 3 with Axleholes on Ends and Perpendicular Pinholes - Eighth
0 Name: s\7654s02.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Top Centre
1 16 0 -30 0 9 0 0 0 1 0 0 0 9 1-8edge.dat
2 24 6.3639 -30 6.3639 4.5 -30 7.6
2 24 4.5 -30 9 4.5 -30 7.6
2 24 1.7222 -30 15.88 6.1232 -30 14.7824
1 16 0 -30 0 16 0 0 0 1 0 0 0 16 48\3-16edge.dat
1 16 0 -30 0 19 0 0 0 1 0 0 0 19 48\1-4edge.dat
2 24 2 -30 7.3523 2 -30 4
2 24 2 -30 4 2.5 -30 2.5
2 24 2.5 -30 2.5 4 -30 2
2 24 5.6023 -30 2 4 -30 2
2 24 6 -30 0 5.6023 -30 2
2 24 1.5 -30 8.15 1.5 -30 10
2 24 2 -30 7.3523 1.5 -30 8.15
2 24 1.7222 -30 13.1576 1.7222 -30 15.88
1 16 0 -30 0 9 0 0 0 1 0 0 0 9 1-8chrd.dat
1 16 0 -30 9 4.5 0 0 0 1 0 0 0 4.5 3-16chrd.dat
1 16 0 -30 10 1.5 0 0 0 1 0 0 0 1.5 1-4ndis.dat
4 16 2 -30 7.3523 4.5 -30 9 1.5 -30 10 1.5 -30 8.15
4 16 6 -30 0 9 -30 0 6.3639 -30 6.3639 5.6023 -30 2
4 16 5.6023 -30 2 6.3639 -30 6.3639 2.5 -30 2.5 4 -30 2
3 16 2 -30 4 2.5 -30 2.5 6.3639 -30 6.3639
4 16 4.5 -30 7.6 2 -30 7.3523 2 -30 4 6.3639 -30 6.3639
3 16 1.7222 -30 13.1576 0 -30 11.5 1.5 -30 11.5
4 16 1.5 -30 10 4.5 -30 9 1.7222 -30 13.1576 1.5 -30 11.5
3 16 4.5 -30 7.6 4.5 -30 9 2 -30 7.3523
4 16 0 -30 11.5 1.7222 -30 13.1576 1.7222 -30 15.88 0 -30 19
3 16 0 -30 19 1.7222 -30 15.88 6.1232 -30 14.7824
3 16 0 -30 19 6.1232 -30 14.7824 13.4349 -30 13.4349
3 16 13.4349 -30 13.4349 6.1232 -30 14.7824 9.064 -30 13.5648
3 16 13.4349 -30 13.4349 9.064 -30 13.5648 11.3136 -30 11.3136
3 16 13.4349 -30 13.4349 11.3136 -30 11.3136 13.5648 -30 9.064
3 16 13.4349 -30 13.4349 13.5648 -30 9.064 14.7824 -30 6.1232
3 16 13.4349 -30 13.4349 14.7824 -30 6.1232 19 -30 0
3 16 19 -30 0 14.7824 -30 6.1232 16 -30 3.1824
3 16 19 -30 0 16 -30 3.1824 16 -30 0
1 16 0 -30 0 19 0 0 0 1 0 0 0 19 48\1-8chrd.dat
1 16 0 -30 0 0 0 19 0 1 0 19 0 0 48\1-8chrd.dat
1 16 0 -30 0 16 0 0 0 1 0 0 0 16 48\3-16tang.dat
0 // Axlehole
4 16 2 -30 4 2 -30 7.3523 2 -6 6 2 -10.5 4
3 16 2 0 6 2 -6 6 2 -30 7.3523
4 16 2 -30 4 2 -10.5 4 2.5 -10.5 2.5 2.5 -30 2.5
4 16 4 -30 2 2.5 -30 2.5 2.5 -10.5 2.5 4 -10.5 2
4 16 4 -30 2 4 -10.5 2 5.6023 -10.5 2 5.6023 -30 2
4 16 6 -30 0 5.6023 -30 2 5.6023 -10.5 2 6 -10.5 0
2 24 5.6023 -30 2 5.6023 -10.5 2
5 24 2 -30 4 2 -10.5 4 2 -6 6 2.5 -10.5 2.5
5 24 2.5 -30 2.5 2.5 -10.5 2.5 2 -10.5 4 4 -10.5 2
5 24 4 -30 2 4 -10.5 2 5.6023 -30 2 2.5 -30 2.5
0 // Axle Stopper
3 16 2 -10.5 0 2.5 -10.5 2.5 2 -10.5 4
4 16 4 -10.5 0 6 -10.5 0 5.6023 -10.5 2 4 -10.5 2
4 16 4 -10.5 2 2.5 -10.5 2.5 2 -10.5 0 4 -10.5 0
1 16 2 0 0 0 1 0 -6 0 0 0 0 6 1-4edge.dat
1 16 2 0 0 0 1 0 -6 0 0 0 0 6 1-4ndis.dat
4 16 2 -6 0 2 -10.5 0 2 -10.5 4 2 -6 6
2 24 2 -10.5 4 2 -10.5 0
2 24 2 -10.5 4 2.5 -10.5 2.5
2 24 2.5 -10.5 2.5 4 -10.5 2
2 24 5.6023 -10.5 2 4 -10.5 2
2 24 6 -10.5 0 5.6023 -10.5 2
0 // Axlehole Pocket
1 16 0 -30 0 9 0 0 0 21 0 0 0 9 1-8cyli.dat
1 16 0 -9 0 9 0 0 0 9 0 0 0 9 1-8cyls.dat
1 16 9 0 0 0 5.663 0 -9 0 0 0 0 9 1-8cyli.dat
1 16 9 0 0 0 -9 0 -9 0 0 0 0 9 1-8cyls.dat
1 16 14.663 0 0 0 2.7 0 6.36396 0 -6.36396 6.36396 0 6.36396 1-8cyls2.dat
1 16 0 0 0 9 0 0 -9 1 0 0 0 9 1-8edge.dat
2 24 15.4544 -7.8496 4.1408 14.7824 -6.5248 6.1232
2 24 14.7824 -6.5248 6.1232 14.6636 -6.3639 6.3639
2 24 15.5928 -8.3151 3.4443 15.4544 -7.8496 4.1408
2 24 16 -9 0 15.8624 -8.5848 2.088
2 24 15.5928 -8.3151 3.4443 15.8624 -8.5848 2.088
4 16 4.5 -3.4443 8.3151 4.5 -2 9 4.5 -30 9 4.5 -30 7.6
3 16 4.5 -3.4443 8.3151 4.5 -2 8.6023 4.5 -2 9
3 16 4.5 -4.5 7.6096 4.5 -3.4443 8.3151 4.5 -30 7.6
4 16 6.3639 -30 6.3639 6.3639 -9 6.3639 4.5 -4.5 7.6096 4.5 -30 7.6
3 16 6.3639 -9 6.3639 6.3639 -6.3639 6.3639 4.5 -4.5 7.6096
4 16 9 -6.3639 6.3639 14.663 -6.3639 6.3639 13.856 -3.9158 8 13.6457 -3.4443 8.3151
4 16 4.5 -3.4443 8.3151 6.3639 -6.3639 6.3639 9 -6.3639 6.3639 13.6457 -3.4443 8.3151
3 16 4.5 -3.4443 8.3151 4.5 -4.5 7.6096 6.3639 -6.3639 6.3639
4 16 13.4541 -2 8.6023 4.5 -2 8.6023 4.5 -3.4443 8.3151 13.6457 -3.4443 8.3151
2 24 4.5 -2 8.6023 13.4541 -2 8.6023
2 24 4.5 -2 8.6023 4.5 -2 9
2 24 4.5 -3.4443 8.3151 4.5 -2 8.6023
2 24 4.5 -4.5 7.6096 4.5 -3.4443 8.3151
2 24 6.3639 -6.3639 6.3639 4.5 -4.5 7.6096
2 24 13.6457 -3.4443 8.3151 13.4541 -2 8.6023
2 24 13.856 -3.9158 8 14.6636 -6.3639 6.3639
2 24 13.6457 -3.4443 8.3151 13.856 -3.9158 8
2 24 4.5 -4.5 7.6096 4.5 -30 7.6
5 24 14.663 -6.364 6.364 9 -6.3639 6.3639 13.6457 -3.4443 8.3151 15.5928 -8.3151 3.4443
5 24 4.5 -3.4443 8.3151 13.6457 -3.4443 8.3151 13.4541 -2 8.6023 14.663 -6.364 6.364
5 24 6.3639 -30 6.3639 6.3639 -9 6.3639 4.5 -30 7.6 8.3151 -30 3.4443
5 24 9 -6.3639 6.3639 6.3639 -6.3639 6.3639 8.3151 -8.3151 3.4443 4.5 -4.5 7.6096
5 24 6.3639 -6.3639 6.3639 6.3639 -9 6.3639 8.3151 -8.3151 3.4443 4.5 -4.5 7.6096
1 16 0 -30 9 4.5 0 0 0 28 0 0 0 4.5 3-16cylo.dat
1 16 0 -2 9 4.5 0 0 0 1 0 0 0 4.5 3-16tndis.dat
4 16 1.7222 -2 15.88 1.7222 -30 15.88 1.7222 -30 13.1576 1.7222 -2 13.1576
2 24 1.7222 -2 15.88 1.7222 -2 13.1576
2 24 1.7222 -30 13.1576 1.7222 -2 13.1576
2 24 1.7222 -2 15.88 1.7222 -30 15.88
4 16 6.1232 -30 14.7824 1.7222 -30 15.88 1.7222 -2 15.88 6.1233 -9 14.783
3 16 6.1233 -3.9158 14.783 6.1233 -9 14.783 1.7222 -2 15.88
3 16 6.1232 -2 14.7824 6.1233 -3.9158 14.783 1.7222 -2 15.88
0 BFC INVERTNEXT
1 16 0 -30 0 16 0 0 0 21 0 0 0 16 48\3-16cyli.dat
0 BFC INVERTNEXT
1 16 0 -9 0 16 0 0 0 37.94179 0 0 0 16 48\1-12cyls.dat
0 BFC INVERTNEXT
1 16 0 -9 0 13.85641 0 -8 0 5.0842 0 8 0 13.85641 48\5-48cyli.dat
0 BFC INVERTNEXT
1 16 0 -3.9158 0 13.85641 0 -8 0 1.9158 0 8 0 13.85641 48\5-48cyli.dat
5 24 6.1232 -2 14.7824 6.1233 -3.9158 14.783 8 -3.9158 13.8562 1.7222 -2 15.88
5 24 6.1233 -3.9158 14.783 6.1232 -9 14.7824 1.7222 -2 15.88 8 -9 13.8562
5 24 6.1232 -30 14.7824 6.1232 -9 14.7824 8 -30 13.856 1.7222 -30 15.88
4 16 6.1232 -2 14.7824 1.7222 -2 15.88 1.7222 -2 13.1576 4.5 -2 13.1576
4 16 13.8564 -2 8 6.1232 -2 14.7824 4.5 -2 13.1576 4.5 -2 9
3 16 4.5 -2 9 4.5 -2 8.6023 13.8564 -2 8
1 16 0 -2 0 13.85641 0 -8 0 1 0 8 0 13.85641 48\5-48edge.dat
1 16 0 -2 0 13.85641 0 -8 0 1 0 8 0 13.85641 48\5-48chrd.dat
0 // Outside
1 16 0 -30 0 19 0 0 0 21 0 0 0 19 48\1-4cyli.dat
1 16 0 -9 0 19 0 0 0 59.13272 0 0 0 19 48\1-16cyls.dat
2 24 18.8366 -8.507 2.4795 19 -9 0
2 24 17.5541 -5.0061 7.2713 17.0389 -3.4443 8.3151
2 24 17.0389 -3.4443 8.3151 16.7008 0 9
2 24 18.6448 -8.3151 3.4443 18.8366 -8.507 2.4795
2 24 17.8617 -6.3639 6.3639 18.3521 -7.3307 4.9172
2 24 18.6448 -8.3151 3.4443 18.3521 -7.3307 4.9172
2 24 17.8617 -6.3639 6.3639 17.5541 -5.0061 7.2713
1 16 19 0 0 0 -2.3 0 0 0 -9 -9 0 0 1-4cyls2.dat
2 24 1.7222 -2 15.88 6.1232 -2 14.7824
Status:
Errors Found (HN)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has uncertified subfiles
This part has the following warnings
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 14.663 0 0 0 2.7 0 6.36396 0 -6.36396 6.36396 0 6.36396 1-8cyls2.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 -9 0 16 0 0 0 37.94179 0 0 0 16 48\1-12cyls.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 -9 0 13.85641 0 -8 0 5.0842 0 8 0 13.85641 48\5-48cyli.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 -3.9158 0 13.85641 0 -8 0 1.9158 0 8 0 13.85641 48\5-48cyli.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 -2 0 13.85641 0 -8 0 1 0 8 0 13.85641 48\5-48edge.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 -2 0 13.85641 0 -8 0 1 0 8 0 13.85641 48\5-48chrd.dat
-
5 decimal places exceeds the recommendation for Subpart in the library specificationLine text: 1 16 0 -9 0 19 0 0 0 59.13272 0 0 0 19 48\1-16cyls.dat
Current Votes:
| User | Vote |
|---|---|
| Blechtaler | Hold |
Official parents and subparts
Part Events:
2026-01-25 23:03:45
2026-01-25 23:06:34
This condline isn't supposed to be there (perfectly flat area)
condline removed from s02
added one missing edge in the pocket
added edges in s01, shall this be conds?
added one missing edge in the pocket
added edges in s01, shall this be conds?
outside should be normal-res prims to match the other round parts at this size (2x2 round bricks/plates/tiles and both 2x2 elbows)
should the inside also be normal res? (i think hi-res inside is overkill, to reduce the mismatch from the rotated cyli at the bottom maybe even inlined normal res...)
Is the R19 outside confirmed or should it be R20 to match said round parts?
should the inside also be normal res? (i think hi-res inside is overkill, to reduce the mismatch from the rotated cyli at the bottom maybe even inlined normal res...)
Is the R19 outside confirmed or should it be R20 to match said round parts?
2026-01-26 17:22:55
I hate to see this only now, but René is right, should be 16x to match elbows. And yes, R = 19 like the elbows (as proved by the Technic holes that protrude from side and are exactly on grid)
2026-01-26 17:34:58
thought the elbows have R20, but they are indeed at R19 (then skip the plates/brick/tiles size)
as long there are prims outside they can be scaled up...
would the front 1-16cyls still work as normal res or would it cut into the pinhole?
also found a gap: when looking directly from the top, there is a thin gap between the pinhole outside 1-8cyls and the tube inside, which should be (inlined) normal res
as long there are prims outside they can be scaled up...
would the front 1-16cyls still work as normal res or would it cut into the pinhole?
also found a gap: when looking directly from the top, there is a thin gap between the pinhole outside 1-8cyls and the tube inside, which should be (inlined) normal res
2026-01-26 23:25:53
I am very much for an increase in the resolution to 48 of the stuff that hovers around a R20
Unfortunately the standard res 1-16cyls is cutting very slightly into the connhole, could be "solved" by overlapping the 1-16cyls and the 1-4cyli
so I am not very much in favor of getting this part down to 16 sided, an alternative woul dbe to get the 3-16 down to 16 sided and keep the area around the hole at 48
Unfortunately the standard res 1-16cyls is cutting very slightly into the connhole, could be "solved" by overlapping the 1-16cyls and the 1-4cyli
so I am not very much in favor of getting this part down to 16 sided, an alternative woul dbe to get the 3-16 down to 16 sided and keep the area around the hole at 48
2026-01-27 06:52:47
I checked elbows + 7654 assemblies, it doesn't look that bad at normal res, and of course it's perfect with prim substitution. I nonetheless think that your last solution is the best, using 48\1-16cyls and 48\1-16cyli above, and make the rest 16-sided.
