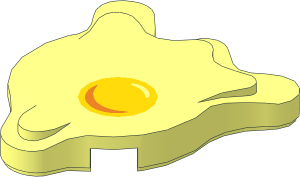

0 Tile 2 x 2 Round Splat with Egg Yolk Pattern
0 Name: 80677p01.dat
0 Author: Peter Grass [Evilspyre]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Fried Egg, Rebrickable 80677pr0001, Set 10791, set 60315
