Unofficial File parts/30047b.dat
Part Attributes:
File Header:
0 Boat Mast 3 x 2 x 11.667 Bowsprit
0 Name: 30047b.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink 30047, Brickowl 541134, Brickset 30047, clipper
0 !KEYWORDS Imperial Armada, Imperial Guard, Pirates, Rebrickable 30047, ship
0 !KEYWORDS Soldiers
0 !HISTORY 2026-01-28 [Sirio] New version of the original work of Andy Westrate [westrate]
Show contents
0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\30047bs01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\30047bs01.dat
0 // Primitives
1 16 0 -280 20 0 0 1 0 1 0 -1 0 0 stud2a.dat
1 16 0 -280 0 0 0 1 0 1 0 -1 0 0 stud2.dat
1 16 0 -270 4 0 0 1 1 0 0 0 5 0 stud2a.dat
1 16 0 -270 4 0 0 4 4 0 0 0 1 0 4-4edge.dat
1 16 0 -250 4 0 0 1 1 0 0 0 5 0 stud2a.dat
1 16 0 -250 4 0 0 4 4 0 0 0 1 0 4-4edge.dat
1 16 0 -230 4 0 0 1 1 0 0 0 5 0 stud2a.dat
1 16 0 -230 4 0 0 4 4 0 0 0 1 0 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 -219 -4 8 0 0 0 -59 0 0 0 8 box2-9p.dat
1 16 0 -210 4 0 0 1 1 0 0 0 5 0 stud2a.dat
1 16 0 -210 4 0 0 4 4 0 0 0 1 0 4-4edge.dat
1 16 0 -190 4 0 0 1 1 0 0 0 5 0 stud2a.dat
1 16 0 -190 4 0 0 4 4 0 0 0 1 0 4-4edge.dat
1 16 0 -170 4 0 0 1 1 0 0 0 5 0 stud2a.dat
1 16 0 -170 4 0 0 4 4 0 0 0 1 0 4-4edge.dat
1 16 0 -158 -16.5 5.5 0 0 0 0 2 0 1 0 rect2p.dat
0 BFC INVERTNEXT
1 16 0 -40 12 6 0 0 0 0 36 0 -20 0 box3u8p.dat
0 // Complementary faces
3 16 -10 -280 -12 10 -280 -12 0 -280 14
4 16 -10 -280 -12 -8 -278 -12 8 -278 -12 10 -280 -12
4 16 -8 -160 -12 8 -160 -12 8 -160 4 -8 -160 4
4 16 -8 -160 -12 -5.5 -160 -16.5 5.5 -160 -16.5 8 -160 -12
3 16 0 -156 -11.7391 5.5 -156 -16.5 -5.5 -156 -16.5
3 16 0 -80 -8 8 -80 9.4545 -8 -80 9.454
4 16 -9.8994 -80 12 -8 -80 9.454 8 -80 9.4545 9.8994 -80 12
4 16 -9.8994 -80 12 9.8994 -80 12 6 -76 12 -6 -76 12
4 16 -9.8994 0 12 -6 -4 12 6 -4 12 9.8994 0 12
4 16 -9.8994 0 12 9.8994 0 12 4 0 8 -4 0 8
3 16 0 0 -14 -4 0 8 4 0 8
3 16 0 12 8 -4 0 8 4 0 8
3 16 0 12 -8 4 0 -8 -4 0 -8
0 // Edges
2 24 -10 -280 -12 10 -280 -12
2 24 -9.8994 -80 12 9.8994 -80 12
2 24 -9.8994 0 12 9.8994 0 12
2 24 -4 0 8 4 0 8
2 24 -4 0 -8 4 0 -8
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Current Votes:
None
Official parents and subparts
Part Events:
Massimo Maso [Sirio]
initially submitted the part.
2026-01-28 22:35:06
Rene Rechthaler [Blechtaler]
posted a vote of Hold
2026-01-28 22:50:15
misses boxjcyl4.dat at the connection from the side support to the hollow front studs
also misses the bottom edgelines of the top studs
the rear cavity has gaps to the side subparts (which have a miising condline)
also misses the bottom edgelines of the top studs
the rear cavity has gaps to the side subparts (which have a miising condline)
Massimo Maso [Sirio]
submitted a new version of the part (all votes reset).
2026-01-31 01:47:45
Magnus Forsberg [MagFors]
made the following comment.
2026-01-31 08:44:06
I don't understand this description. I think it should be 3 x 2 x 11.667. Where is the 1/2?
Rene Rechthaler [Blechtaler]
made the following comment.
2026-01-31 09:21:09
why long stud2a+4-4edges for the side studs? do these have a logo inside? or should they be nornal unscaled stud2a on cylis?
are you sure about the tangential inside of the lower rear cavity? if pins go into the pinholes, the click on the ends is on all sides, colliding with the rear...
are you sure about the tangential inside of the lower rear cavity? if pins go into the pinholes, the click on the ends is on all sides, colliding with the rear...
Magnus Forsberg [MagFors]
posted a vote of Hold
2026-01-31 14:22:18

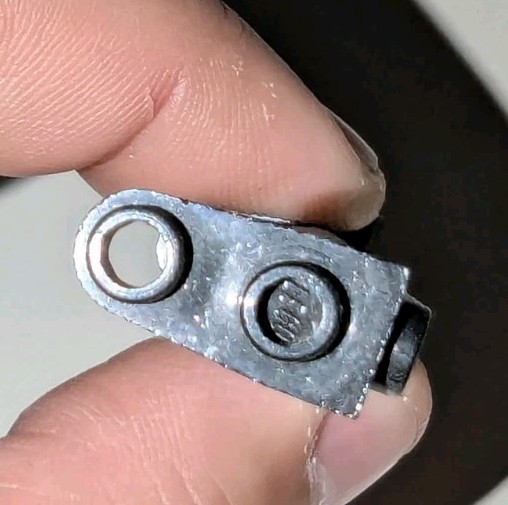

I think this has the same error as 2538 had. The distance between the top studs is not correct. It's half a stud too long.
https://i.ebayimg.com/images/g/HD8AAeSwGIloykTe/s-l1600.jpg
https://i.ebayimg.com/images/g/HD8AAeSwGIloykTe/s-l1600.jpg
Rene Rechthaler [Blechtaler]
made the following comment.
2026-01-31 14:47:59
how does the man-o-war keyword fit here? that part is quite far from Physalia physalis -> Portuguese man o' war (jellyfish-like cnidaria)
Chris Böhnke [KnightOfTarenta]
posted a vote of Hold
2026-01-31 20:27:39
@Rene:
A "man-o-war" is a also a type of boat. Actually the jellyfish was named after it.
Agreed the top studs are wrong. The should fit the usual stud grid.
A "man-o-war" is a also a type of boat. Actually the jellyfish was named after it.
Agreed the top studs are wrong. The should fit the usual stud grid.
Magnus Forsberg [MagFors]
made the following comment.
2026-01-31 20:39:45
So, the old version need to be obsoleted, and this new version will become 30047b.dat, with Massimo as new author.
Chris Böhnke [KnightOfTarenta]
made the following comment.
2026-01-31 21:01:36
Be aware that the ring below it is also misplaced.
The entire area there seems to be a bit different when compared to the LDD version.
The entire area there seems to be a bit different when compared to the LDD version.
Magnus Forsberg [MagFors]
made the following comment.
2026-01-31 21:13:26
Yes, both are misplaced.
Massimo Maso [Sirio]
submitted a new version of the part (all votes reset).
2026-02-01 15:43:49
I request to rename these files 30047b and 30047bs01. After the rename, I upload the file that makes the official part 30047 obsolete (you need a ~Moveto file).
Changed description, changed position of top stud and connect hole at the base. Fixed other errors.
if there is something else to fix, maybe tell me the coordinates to which I have to bring the component and don't indicate them only in a descriptive way.
Changed description, changed position of top stud and connect hole at the base. Fixed other errors.
if there is something else to fix, maybe tell me the coordinates to which I have to bring the component and don't indicate them only in a descriptive way.
Magnus Forsberg [MagFors]
renamed the part.
2026-02-01 16:23:54
Magnus Forsberg [MagFors]
made the following comment.
2026-02-01 16:25:21
We can't use the Moved to-routine here since there is a big difference in the geometry.
Tho old file should be made Obsolete.
Tho old file should be made Obsolete.
Magnus Forsberg [MagFors]
posted a vote of Hold
2026-02-01 16:26:01
Top stud is out of position.
Chris Böhnke [KnightOfTarenta]
posted a vote of Hold
2026-02-01 20:39:50
And lower hole too.
Magnus Forsberg [MagFors]
made the following comment.
2026-02-02 16:25:29
I have uploaded the old file as an Obsolete part.
Massimo Maso [Sirio]
submitted a new version of the part (all votes reset).
2026-02-02 22:13:53
Made some corrections.
Massimo Maso [Sirio]
submitted a new version of the part (all votes reset).
2026-03-05 18:26:26
The outer surface is now a single cone from tip to base.
Shifted in Z-direction of 280 LDU so the base is at the same altitude as 2538.
The base has the same wide of 2538.
Shifted in Z-direction of 280 LDU so the base is at the same altitude as 2538.
The base has the same wide of 2538.
Creative Commons Attribution License information
This part is copyright ©
Massimo Maso
Licensed under
CC BY 4.0
Fixed some minor errors.
