Unofficial File parts/7930.dat
Part Attributes:
File Header:

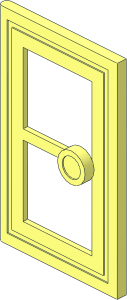

0 Door 1 x 3 x 4
0 Name: 7930.dat
0 Author: James Jessiman
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Brickowl 200232
0 !HISTORY 1998-06-20 [PTadmin] Official Update 1998-06
0 !HISTORY 2003-05-05 [nielsk] BFC Certified, groove added
0 !HISTORY 2003-12-19 [PTadmin] Official Update 2003-03
0 !HISTORY 2007-07-23 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
0 !HISTORY 2026-01-28 [Sirio] Updated the use of primitives: removed ringr.dat or ringrr.dat; changed cyli to cylo; fixed T-junctions
Show contents
0 // Handle
0 // Primitives
0 BFC INVERTNEXT
1 16 34 42 -5.5 4 0 0 0 0 4 0 -.5 0 4-4cylc.dat
1 16 34 42 -6 2 0 0 0 0 2 0 1 0 4-4ring2.dat
1 16 34 42 -2 6 0 0 0 0 6 0 -4 0 4-4cylo.dat
1 16 34 42 -2 6 0 0 0 0 6 0 -1 0 4-4disc.dat
0 // Frame
0 // Primitives
1 16 0 0 0 0 0 -2 0 84 0 2 0 0 2-4cylo.dat
1 16 0 0 0 0 0 -2 0 1 0 2 0 0 2-4chrd.dat
1 16 0 84 0 0 0 -2 0 -1 0 2 0 0 2-4chrd.dat
1 16 0 42 0 0 50 0 0 0 42 2 0 0 box3u4a.dat
0 BFC INVERTNEXT
1 16 24 42 0 20.5 0 0 0 0 36.5 0 2 0 box4.dat
0 BFC INVERTNEXT
1 16 24 25.5 -2 15 0 0 0 0 14.5 0 2 0 box4.dat
0 BFC INVERTNEXT
1 16 24 58.5 -2 15 0 0 0 0 14.5 0 2 0 box4.dat
0 BFC INVERTNEXT
1 16 24 42 -2 22 0 0 0 0 38 0 0.5 0 box4.dat
1 16 24 42 -2 20 0 0 0 0 36 0 0.5 0 box4.dat
0 // Faces
4 16 44.5 5.5 2 3.5 5.5 2 0 0 2 50 0 2
4 16 44.5 5.5 2 50 0 2 50 84 2 44.5 78.5 2
4 16 3.5 78.5 2 44.5 78.5 2 50 84 2 0 84 2
4 16 3.5 78.5 2 0 84 2 0 0 2 3.5 5.5 2
4 16 44.5 5.5 0 39 11 0 9 11 0 3.5 5.5 0
3 16 44.5 5.5 0 39 40 0 39 11 0
4 16 44.5 5.5 0 44.5 78.5 0 39 44 0 39 40 0
3 16 3.5 5.5 0 9 11 0 9 40 0
4 16 3.5 5.5 0 9 40 0 9 44 0 3.5 78.5 0
4 16 39 44 0 9 44 0 9 40 0 39 40 0
3 16 39 44 0 44.5 78.5 0 39 73 0
4 16 3.5 78.5 0 9 73 0 39 73 0 44.5 78.5 0
3 16 3.5 78.5 0 9 44 0 9 73 0
4 16 46 4 -2 50 0 -2 0 0 -2 2 4 -2
4 16 46 4 -2 46 80 -2 50 84 -2 50 0 -2
4 16 0 84 -2 50 84 -2 46 80 -2 2 80 -2
4 16 0 84 -2 2 80 -2 2 4 -2 0 0 -2
4 16 46 4 -1.5 2 4 -1.5 4 6 -1.5 44 6 -1.5
4 16 46 4 -1.5 44 6 -1.5 44 78 -1.5 46 80 -1.5
4 16 2 80 -1.5 46 80 -1.5 44 78 -1.5 4 78 -1.5
4 16 2 80 -1.5 4 78 -1.5 4 6 -1.5 2 4 -1.5
4 16 44 6 -2 4 6 -2 9 11 -2 39 11 -2
3 16 44 6 -2 39 11 -2 39 40 -2
4 16 44 6 -2 39 40 -2 39 44 -2 44 78 -2
3 16 4 6 -2 9 40 -2 9 11 -2
4 16 4 6 -2 4 78 -2 9 44 -2 9 40 -2
4 16 39 44 -2 39 40 -2 9 40 -2 9 44 -2
3 16 39 44 -2 39 73 -2 44 78 -2
4 16 4 78 -2 44 78 -2 39 73 -2 9 73 -2
3 16 4 78 -2 9 73 -2 9 44 -2
Status:
Needs 1 More Vote (CF)
Current Votes:
| User | Vote |
|---|---|
| Blechtaler | Certify |
Official parents and subparts
Part Events:
Archived Part Events:
2026-01-28 22:38:51
you could do some more fixes like cyli + 2x edge -> cylo and 2-4disc -> 2-4chrd
(the center bar also has some t-junk at the ends)
(the center bar also has some t-junk at the ends)
2026-01-29 18:14:24
2026-01-29 21:34:44
