Unofficial File parts/s/66237s01.dat
File Header:

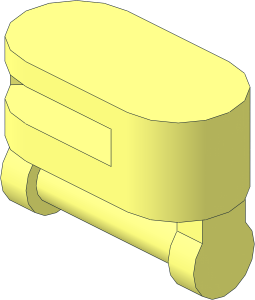

0 ~Bar with Drafting Machine - Base
0 Name: s\66237s01.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // bar hinge
1 16 -14 0 0 0 28 0 0 0 4 4 0 0 4-4cylo.dat
1 16 19 0 0 0 -5 0 6 0 0 0 0 -6 3-8cylo.dat
1 16 19 0 0 0 -5 0 6 0 0 0 0 6 3-8cylo.dat
1 16 14 0 0 0 1 0 2 0 0 0 0 -2 3-8ring2.dat
1 16 14 0 0 0 1 0 2 0 0 0 0 2 3-8ring2.dat
1 16 19 0 0 0 -1 0 6 0 0 0 0 -6 3-8chrd.dat
1 16 19 0 0 0 -1 0 6 0 0 0 0 6 3-8chrd.dat
1 16 -19 0 0 0 5 0 6 0 0 0 0 -6 3-8cylo.dat
1 16 -19 0 0 0 5 0 6 0 0 0 0 6 3-8cylo.dat
1 16 -14 0 0 0 -1 0 2 0 0 0 0 -2 3-8ring2.dat
1 16 -14 0 0 0 -1 0 2 0 0 0 0 2 3-8ring2.dat
1 16 -19 0 0 0 1 0 6 0 0 0 0 -6 3-8chrd.dat
1 16 -19 0 0 0 1 0 6 0 0 0 0 6 3-8chrd.dat
3 16 -19 -4.2426 4.2426 -19 6 0 -19 -4.2426 -4.2426
4 16 -14 -4.2426 -4.2426 -14 -2.8284 -2.8284 -14 -2.8284 2.8284 -14 -4.2426 4.2426
4 16 14 -2.8284 -2.8284 14 -4.2426 -4.2426 14 -4.2426 4.2426 14 -2.8284 2.8284
3 16 19 6 0 19 -4.2426 4.2426 19 -4.2426 -4.2426
1 16 16.5 -8 0 2.5 0 0 0 3.7574 0 0 0 4.2426 box4o4a.dat
2 24 14 -4.2426 -4.2426 19 -4.2426 -4.2426
2 24 19 -4.2426 4.2426 14 -4.2426 4.2426
1 16 -16.5 -8 0 2.5 0 0 0 3.7574 0 0 0 4.2426 box4o4a.dat
2 24 -19 -4.2426 4.2426 -14 -4.2426 4.2426
2 24 -19 -4.2426 -4.2426 -14 -4.2426 -4.2426
0 // round ends
1 16 -10 -24 0 0 0 -10 0 1 0 10 0 0 2-4chrd.dat
1 16 -10 -8 0 0 0 -10 0 -1 0 10 0 0 2-4chrd.dat
1 16 -10 -24 0 0 0 -10 0 1 0 10 0 0 2-4edge.dat
1 16 -10 -8 0 0 0 -10 0 1 0 10 0 0 2-4edge.dat
1 16 -10 -24 0 0 0 -10 0 4 0 10 0 0 2-4cyli.dat
1 16 -10 -14 0 0 0 -10 0 6 0 10 0 0 2-4cyli.dat
1 16 -10 -20 0 0 0 -10 0 6 0 10 0 0 5-16cyli.dat
1 16 -10 -20 0 0 0 -10 0 1 0 -10 0 0 3-16edge.dat
1 16 -10 -14 0 0 0 -10 0 1 0 -10 0 0 3-16edge.dat
1 16 -10 -20 0 0 0 -10 0 -1 0 -10 0 0 3-16chrd.dat
1 16 -10 -14 0 0 0 -10 0 1 0 -10 0 0 3-16chrd.dat
1 16 10 -24 0 0 0 10 0 1 0 -10 0 0 2-4chrd.dat
1 16 10 -8 0 0 0 10 0 -1 0 -10 0 0 2-4chrd.dat
1 16 10 -24 0 0 0 10 0 1 0 -10 0 0 2-4edge.dat
1 16 10 -8 0 0 0 10 0 1 0 -10 0 0 2-4edge.dat
1 16 10 -24 0 0 0 10 0 4 0 -10 0 0 2-4cyli.dat
1 16 10 -14 0 0 0 10 0 6 0 -10 0 0 2-4cyli.dat
1 16 10 -20 0 0 0 10 0 6 0 -10 0 0 7-16cyli.dat
1 16 10 -20 0 0 0 10 0 1 0 10 0 0 1-16edge.dat
1 16 10 -14 0 0 0 10 0 1 0 10 0 0 1-16edge.dat
1 16 10 -20 0 0 0 10 0 1 0 10 0 0 1-16chrd.dat
1 16 10 -14 0 0 0 10 0 -1 0 10 0 0 1-16chrd.dat
0 // inside
2 24 13.7975 -14 -1.3805 6.768 -14 -10
2 24 13.827 -14 9.239 13.7975 -14 -1.3805
2 24 13.7975 -20 -1.3805 6.768 -20 -10
2 24 13.827 -20 9.239 13.7975 -20 -1.3805
2 24 -19.239 -20 -3.827 -6 -20 10
2 24 -19.239 -14 -3.827 -6 -14 10
2 24 -10 -14 -10 6.768 -14 -10
2 24 6.768 -14 -10 6.768 -20 -10
2 24 -10 -20 -10 6.768 -20 -10
2 24 -19.239 -14 -3.827 -19.239 -20 -3.827
2 24 13.827 -20 9.239 13.827 -14 9.239
2 24 -6 -14 10 -6 -20 10
2 24 10 -14 10 -6 -14 10
2 24 10 -20 10 -6 -20 10
4 16 -6 -14 10 -19.239 -14 -3.827 -10 -14 -10 10 -14 10
4 16 6.768 -14 -10 13.7975 -14 -1.3805 10 -14 10 -10 -14 -10
3 16 13.7975 -14 -1.3805 13.827 -14 9.239 10 -14 10
4 16 13.827 -20 9.239 13.827 -14 9.239 13.7975 -14 -1.3805 13.7975 -20 -1.3805
4 16 13.7975 -20 -1.3805 13.7975 -14 -1.3805 6.768 -14 -10 6.768 -20 -10
4 16 13.827 -20 9.239 13.7975 -20 -1.3805 -10 -20 -10 10 -20 10
3 16 13.7975 -20 -1.3805 6.768 -20 -10 -10 -20 -10
4 16 10 -20 10 -10 -20 -10 -19.239 -20 -3.827 -6 -20 10
4 16 -6 -14 10 -6 -20 10 -19.239 -20 -3.827 -19.239 -14 -3.827
0 // outside
2 24 -10 -24 -10 10 -24 -10
2 24 -10 -24 10 10 -24 10
2 24 -10 -8 -10 10 -8 -10
2 24 -10 -8 10 10 -8 10
4 16 -10 -8 10 10 -8 10 10 -8 -10 -10 -8 -10
4 16 -10 -8 -10 10 -8 -10 6.768 -14 -10 -10 -14 -10
4 16 -10 -20 -10 6.768 -20 -10 10 -24 -10 -10 -24 -10
3 16 10 -20 -10 10 -24 -10 6.768 -20 -10
4 16 6.768 -14 -10 10 -14 -10 10 -20 -10 6.768 -20 -10
3 16 10 -8 -10 10 -14 -10 6.768 -14 -10
4 16 10 -24 10 -10 -24 10 -10 -24 -10 10 -24 -10
3 16 -10 -20 10 -10 -24 10 -6 -20 10
4 16 -6 -14 10 -10 -14 10 -10 -20 10 -6 -20 10
3 16 -10 -8 10 -10 -14 10 -6 -14 10
4 16 10 -20 10 -6 -20 10 -10 -24 10 10 -24 10
4 16 -6 -14 10 10 -14 10 10 -8 10 -10 -8 10
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
