Unofficial File parts/s/7332s01.dat
File Header:

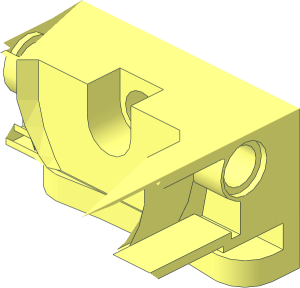

0 ~Technic Gearbox 4 x 4 x 2 for Track with Gear Rack Half
0 Name: s\7332s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\7332s02.dat
1 16 0 0 0 0 0 1 0 1 0 1 0 0 s\7332s02.dat
1 16 0 10 30 -1 0 0 0 0 -1 0 -1 0 connhol3.dat
2 24 8 0 22 -8 0 22
4 16 6 4 22 8 0 22 -8 0 22 -6 4 22
4 16 -40 0 40 -8 0 22 8 0 22 40 0 40
3 16 18.5 48 36 0 48 22 -18.5 48 36
4 16 40 48 40 18.5 48 36 -18.5 48 36 -40 48 40
2 24 40 48 40 -40 48 40
3 16 0 40 22 40 40 34 -40 40 34
1 16 0 36 34 0 0 -40 -4 0 0 0 1 0 rect.dat
4 16 40 0 40 9 1 40 -9 1 40 -40 0 40
4 16 -1.79 45 40 1.79 45 40 40 48 40 -40 48 40
4 16 1.7925 32 40 1.79 45 40 -1.79 45 40 -1.7925 32 40
4 16 1.7925 32 40 -1.7925 32 40 -1.7925 29 40 1.7925 29 40
4 16 1.7901 19 40 1.7925 29 40 -1.7925 29 40 -1.7901 19 40
4 16 40 32 12 -40 32 12 -40 32 34 40 32 34
2 24 -40 32 12 40 32 12
4 16 40 30 12 -40 30 12 -40 32 12 40 32 12
2 24 -40 30 12 40 30 12
2 24 -17.6 30 10 17.6 30 10
4 16 17.6 30 10 -17.6 30 10 -40 30 12 40 30 12
3 16 17.6 30 10 0 18 10 -17.6 30 10
5 24 0 48 22 0 40 22 -15 40 21.51 15 40 21.51
2 24 30 0 6 30 0 -6
4 16 30 0 6 30 0 -6 40 0 -40 40 0 40
4 16 40 0 -40 40 1 -29 40 1 29 40 0 40
4 16 40 3.6361 13.6361 40 1 11 40 1 -11 40 3.636 -13.636
2 24 40 3.6361 -10 40 3.6361 10
2 24 40 30 -12 40 30 12
2 24 40 27 -15 40 27 15
4 16 40 27 15 40 27 -15 40 30 -12 40 30 12
2 24 32 3.64 9 32 3.64 -9
2 24 32 12 -9 32 3.64 -9
2 24 30 19.5 -9 32 12 -9
2 24 26.4 27 -9 30 19.5 -9
2 24 26.4 27 -15 26.4 27 -9
2 24 26.4 27 -15 40 27 -15
2 24 30 19.5 9 32 12 9
2 24 26.4 27 9 30 19.5 9
2 24 26.4 27 15 26.4 27 9
2 24 26.4 27 15 40 27 15
2 24 32 12 9 32 3.64 9
4 16 40 3.6361 -10 32 3.64 -9 32 3.64 9 40 3.6361 10
4 16 32 3.64 9 32 3.64 -9 32 12 -9 32 12 9
4 16 32 12 9 32 12 -9 30 19.5 -9 30 19.5 9
4 16 26.4 27 9 30 19.5 9 30 19.5 -9 26.4 27 -9
2 24 26.4 27 -9 26.4 27 9
4 16 26.4 27 15 26.4 27 -15 40 27 -15 40 27 15
2 24 21.6 30 8.6 21.6 30 -8.6
4 16 24 27 8 21.6 30 8.6 21.6 30 -8.6 24 27 -8
4 16 24 27 8 24 27 -8 28 19.5 -7 28 19.5 7
4 16 30 12 6 28 19.5 7 28 19.5 -7 30 12 -6
4 16 30 12 6 30 12 -6 30 0 -6 30 0 6
4 16 21.6 30 -8.6 21.6 30 8.6 40 30 12 40 30 -12
5 24 28 19.5 7 28 19.5 -7 24 27 8 30 12 -6
5 24 24 27 -8 24 27 8 21.6 30 8.6 28 19.5 -7
5 24 32 3.64 9 40 3.6361 10 28 3.6361 10 40 3.6361 -10
5 24 32 3.64 -9 40 3.6361 -10 28 3.6361 -10 32 3.64 9
5 24 30 19.5 9 30 19.5 -9 26.4 27 -9 32 12 9
5 24 30 12 -6 30 12 6 30 0 -6 28 19.5 7
5 24 32 12 -9 32 12 9 30 19.5 -9 32 3.64 9
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
Phew! As it is a trans clear part, doing this from photos (with lots of internal reflections) was an interesting work...
Rotated 90°
2026-02-11 19:22:38
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
