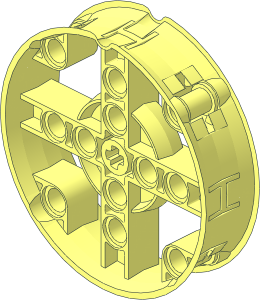

~Wheel 14 x 54 with 4 Spokes with Integral Tyre - Rim

File Header:

0 ~Wheel 14 x 54 with 4 Spokes with Integral Tyre - Rim
0 Name: s\112175s03.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW
