Unofficial File p/48/1-6con23.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

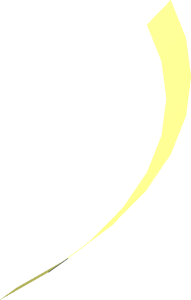

0 Hi-Res Cone 23 x 0.1667
0 Name: 48\1-6con23.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Unofficial_48_Primitive
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCWShow file code:
4 16 23 1 0 22.8022 1 3.0015 23.7936 0 3.132 24 0 0
4 16 22.8022 1 3.0015 22.2157 1 5.9524 23.1816 0 6.2112 23.7936 0 3.132
4 16 22.2157 1 5.9524 21.2497 1 8.8021 22.1736 0 9.1848 23.1816 0 6.2112
4 16 21.2497 1 8.8021 19.918 1 11.5 20.784 0 12 22.1736 0 9.1848
4 16 19.918 1 11.5 18.2482 1 14.0024 19.0416 0 14.6112 20.784 0 12
4 16 18.2482 1 14.0024 16.2633 1 16.2633 16.9704 0 16.9704 19.0416 0 14.6112
4 16 16.2633 1 16.2633 14.0024 1 18.2482 14.6112 0 19.0416 16.9704 0 16.9704
4 16 14.0024 1 18.2482 11.5 1 19.918 12 0 20.784 14.6112 0 19.0416
0 // conditional lines
5 24 23 1 0 24 0 0 23 1 -3.0291 22.8022 1 3.0015
5 24 22.8022 1 3.0015 23.7936 0 3.132 23 1 0 22.2157 1 5.9524
5 24 22.2157 1 5.9524 23.1816 0 6.2112 22.8022 1 3.0015 21.2497 1 8.8021
5 24 21.2497 1 8.8021 22.1736 0 9.1848 22.2157 1 5.9524 19.918 1 11.5
5 24 19.918 1 11.5 20.784 0 12 21.2497 1 8.8021 18.2482 1 14.0024
5 24 18.2482 1 14.0024 19.0416 0 14.6112 19.918 1 11.5 16.2633 1 16.2633
5 24 16.2633 1 16.2633 16.9704 0 16.9704 18.2482 1 14.0024 14.0024 1 18.2482
5 24 14.0024 1 18.2482 14.6112 0 19.0416 16.2633 1 16.2633 11.5 1 19.918
5 24 11.5 1 19.918 12 0 20.784 14.0024 1 18.2482 8.878 1 21.4337
0 // Build by LDPartEditor (PrimGen 2.X)Status
Needs 2 More Votes (N)
Current Votes:
No recorded votesThis part has the following warnings
- Number in description may need a leading space
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Part Dependencies
Official parents and subparts
Part Events
Magnus Forsberg [MagFors]
initially submitted the part.
2026-02-26 17:07:51
