Unofficial File parts/s/7853s01.dat
File Header:

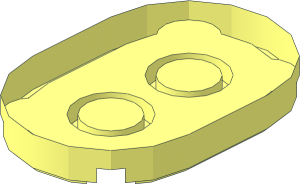

0 ~Tile 2 x 3 with Rounded Ends without Top Face
0 Name: s\7853s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 10 1 0 0 0 1 0 0 0 1 s\66857s02.dat
1 16 0 0 10 -1 0 0 0 1 0 0 0 1 s\66857s02.dat
1 16 0 0 -10 1 0 0 0 1 0 0 0 -1 s\66857s02.dat
1 16 0 0 -10 -1 0 0 0 1 0 0 0 -1 s\66857s02.dat
1 16 0 4 10 8 0 0 0 -1 0 0 0 -8 2-4ndis.dat
1 16 0 4 -10 -8 0 0 0 -1 0 0 0 8 2-4ndis.dat
1 16 0 0 10 0 0 -1 0 1 0 1 0 0 s\15535s02.dat
1 16 0 0 -10 0 0 1 0 1 0 -1 0 0 s\15535s02.dat
1 16 0 4 10 6 0 0 0 -1 0 0 0 6 4-4disc.dat
1 16 0 4 -10 6 0 0 0 -1 0 0 0 6 4-4disc.dat
1 16 0 4 10 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 0 4 -10 1 0 0 0 -1 0 0 0 1 stud4.dat
3 16 -8 4 -2 -16 4 -10 -8 4 2
3 16 -8 4 -10 -16 4 -10 -8 4 -2
3 16 16 4 -10 8 4 -2 8 4 2
3 16 16 4 -10 8 4 -10 8 4 -2
4 16 8 4 2 8 4 10 16 4 10 16 4 -10
4 16 -16 4 10 -8 4 10 -8 4 2 -16 4 -10
4 16 8 4 2 8 4 -2 -8 4 -2 -8 4 2
1 16 -20 3.5 0 0 1 0 0 0 -3.5 -10 0 0 rect2p.dat
0 BFC INVERTNEXT
1 16 -19.5 7.5 0 0 0 .5 0 -.5 0 10 0 0 box2-11.dat
1 16 -17.5 6 0 0 0 1.5 0 2 0 10 0 0 box2-9p.dat
1 16 20 3.5 0 0 -1 0 0 0 -3.5 -10 0 0 rect2p.dat
0 BFC INVERTNEXT
1 16 19.5 7.5 0 0 0 -.5 0 -.5 0 10 0 0 box2-11.dat
1 16 17.5 6 0 0 0 -1.5 0 2 0 10 0 0 box2-9p.dat
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2026-03-07 05:46:23
You may want to replace lines 22 and 23 with:
1 16 0 4 0 0 0 1 0 -1 0 -1 0 0 stug4-1x2.dat
then replace lines 35 and on with:
1 16 -19.5 3.5 0 0 0 -0.5 0 3.5 0 10 0 0 box2-9p.dat
4 16 -19 7 10 -19 8 10 -19 8 -10 -19 7 -10
1 16 -17.5 6 0 0 0 1.5 0 2 0 10 0 0 box2-9p.dat
1 16 19.5 3.5 0 0 0 0.5 0 3.5 0 10 0 0 box2-9p.dat
4 16 19 7 10 19 8 10 19 8 -10 19 7 -10
1 16 17.5 6 0 0 0 -1.5 0 2 0 10 0 0 box2-9p.dat
1 16 0 4 0 0 0 1 0 -1 0 -1 0 0 stug4-1x2.dat
then replace lines 35 and on with:
1 16 -19.5 3.5 0 0 0 -0.5 0 3.5 0 10 0 0 box2-9p.dat
4 16 -19 7 10 -19 8 10 -19 8 -10 -19 7 -10
1 16 -17.5 6 0 0 0 1.5 0 2 0 10 0 0 box2-9p.dat
1 16 19.5 3.5 0 0 0 0.5 0 3.5 0 10 0 0 box2-9p.dat
4 16 19 7 10 19 8 10 19 8 -10 19 7 -10
1 16 17.5 6 0 0 0 -1.5 0 2 0 10 0 0 box2-9p.dat
It looks like this one will be used in set 11217, Brick-Built Bluey Family. Hope it is ok to submit these changes.
No, it is not ok to change someone elses code. There was no Hold vote on this file.
One surface is bfc inverse.
One surface is bfc inverse.
2026-06-01 05:29:26
Sorry about that, Feel free to revert it to the previous version.
Restored old version.
But it is a good suggestion, removing inverted box prims.
But it is a good suggestion, removing inverted box prims.
Creative Commons Attribution License information
This part is copyright ©
Gerald Lasser
Licensed under
CC BY 4.0
Orientation? it is like the 2x4 rounded ends, but basically it is wrong
