Unofficial File parts/s/4286s01.dat
File Header:

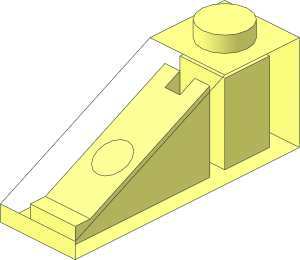

0 ~Slope Brick 33 3 x 1 without Front and Side Faces
0 Name: s\4286s01.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
0 // Top Stud
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stud.dat
0 // Outer Faces
1 16 0 12 0 10 0 0 0 -12 0 0 0 10 box2-5.dat
1 16 0 22 -50 0 0 -10 -2 0 0 0 1 0 rect.dat
2 24 10 20 -50 10 0 -10
2 24 -10 20 -50 -10 0 -10
0 // Bottom
3 16 -6 24 6 -6 24 -6 -10 24 10
3 16 -10 24 10 -6 24 -6 -6 24 -10
3 16 6 24 -6 6 24 6 10 24 10
3 16 6 24 -6 10 24 10 6 24 -10
3 16 -6 24 -10 -6 24 -6 -2 24 -10
3 16 2 24 -10 6 24 -6 6 24 -10
4 16 -10 24 10 -6 24 -10 -6 24 -46 -10 24 -50
4 16 6 24 -46 6 24 -10 10 24 10 10 24 -50
4 16 6 24 -6 2 24 -10 -2 24 -10 -6 24 -6
4 16 10 24 10 6 24 6 -6 24 6 -10 24 10
4 16 -10 24 -50 -6 24 -46 6 24 -46 10 24 -50
2 24 -10 24 10 -10 24 -50
2 24 10 24 -50 10 24 10
2 24 -6 24 -10 -6 24 -46
2 24 6 24 -46 6 24 -10
0 // Back Cavity
0 BFC INVERTNEXT
1 16 0 24 0 -6 0 0 0 -20 0 0 0 6 box5.dat
0 // Front Cavity
0 BFC INVERTNEXT
1 16 0 22 -44 -6 0 0 0 -2 0 0 0 -2 box2-5.dat
1 16 4 14 -10 0 0 -2 -10 0 0 0 1 0 rect.dat
1 16 -4 14 -10 -2 0 0 0 0 10 0 1 0 rect.dat
1 16 0 15 -12 2 0 0 0 0 9 0 -2 0 box2-7.dat
1 16 0 5 -12 2 0 0 0 -2 1 0 0 -2 recte3.dat
3 16 6 20 -42 6 24 -46 6 20 -46
3 16 -6 24 -46 -6 20 -42 -6 20 -46
4 16 2 24 -10 2 4 -10 2 6 -14 2 24 -14
4 16 -2 6 -14 -2 4 -10 -2 24 -10 -2 24 -14
4 16 6 24 -46 6 20 -42 6 4 -10 6 24 -10
4 16 -6 24 -46 -6 24 -10 -6 4 -10 -6 20 -42
4 16 6 20 -42 2 6 -14 2 4 -10 6 4 -10
4 16 6 20 -42 -6 20 -42 -2 6 -14 2 6 -14
4 16 -6 20 -42 -6 4 -10 -2 4 -10 -2 6 -14
2 24 -6 20 -42 -6 4 -10
2 24 6 4 -10 6 20 -42
0 // Bottom Tube
1 16 0 16 -30 0 0 -4 0 -2 0 -4 0 0 4-4cylse.dat
1 16 0 16 -30 0 0 -4 0 4 0 -4 0 0 4-4cyli.dat
1 16 0 20 -30 -1 0 0 0 -1 0 0 0 1 stud3a.dat
Status:
Needs 2 More Votes (N)
Current Votes:
None
Official parents and subparts
Part Events:
2026-02-28 19:04:34
1:1 copy of the official file, just removed the outer sides.
The overlapping primitives should be corrected.
2026-02-28 22:02:08
This is a new file. The history should be removed.
2026-02-28 22:16:22
yes should use stud3a+cyli+cylse
maybe even fit the inner sides to the top and use some more box/rect prims
maybe even fit the inner sides to the top and use some more box/rect prims
*removed overlaps
*removed T-junk
*removed history
*slightly re-structured
*removed T-junk
*removed history
*slightly re-structured
2026-02-28 23:46:11
inside sides could be more effective with 2 quads each
front stud cutout could be an inverted box2-5
front stud cutout could be an inverted box2-5
2026-03-01 00:06:12
Agree on the front, I will change that.
What do you mean with the sides? The front sloped area? There's just 5 vertices.
What do you mean with the sides? The front sloped area? There's just 5 vertices.
2026-03-01 00:15:51
sorry mixed the sides up...
the rear stud holder could be a box2-7 with rects to the sides and a slanted rect3e at the top
the rear stud holder could be a box2-7 with rects to the sides and a slanted rect3e at the top
2026-03-02 18:49:27
Header Edits
description:
~Slope Brick 33 3 x 1 - without Front and Side Faces
to
~Slope Brick 33 3 x 1 without Front and Side Faces
*implemented changes suggested by Rene
2026-03-02 21:10:10
2026-03-02 21:10:29
Creative Commons Attribution License information
This part is copyright ©
Chris Böhnke
Licensed under
CC BY 4.0
Made for use in Set 72153.
