Unofficial File parts/3941p05.dat
Part Attributes:
Base Part: 3941.dat
External Sites:
View on Rebrickable
File Header:

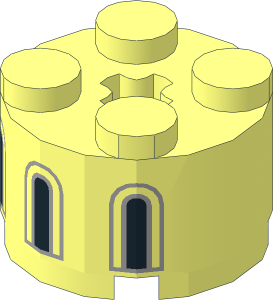

0 Brick 2 x 2 Round with 3 Black and Light Bluish Grey Castle Windows Pattern
0 Name: 3941p05.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Architecture, Neuschwanstein Castle, Rebrickable 3941pr0009
0 !KEYWORDS Set 21063
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3941s01.dat
1 16 0 0 0 0 0 -20 0 20 0 20 0 0 5-16cyli.dat
1 16 0 0 0 0 0 20 0 20 0 20 0 0 5-16cyli.dat
5 24 -7.654 0 -18.478 -7.654 20 -18.478 0 0 -20 -14.142 0 -14.142
5 24 7.654 0 -18.478 7.654 20 -18.478 14.142 0 -14.142 0 0 -20
5 24 -14.142 20 -14.142 -14.142 0 -14.142 -18.478 20 -7.654 -7.654 20 -18.478
5 24 -18.478 20 -7.654 -18.478 0 -7.654 -20 20 0 -14.142 20 -14.142
5 24 18.478 20 -7.654 18.478 0 -7.654 20 20 0 14.142 20 -14.142
5 24 14.142 20 -14.142 14.142 0 -14.142 18.478 20 -7.654 7.654 20 -18.478
5 24 0 0 -20 0 20 -20 7.654 0 -18.478 -7.654 0 -18.478
1 16 .0021 0 .0021 .84743 0 .70711 0 1 0 -.56679 0 .70711 s\3941p03s01.dat
1 16 .0021 0 .0021 -.56679 0 .70711 0 1 0 .84743 0 .70711 s\3941p03s01.dat
1 16 -.0021 0 .0021 -.84743 0 -.70711 0 1 0 -.56679 0 .70711 s\3941p03s01.dat
1 16 -.0021 0 .0021 .56679 0 -.70711 0 1 0 .84743 0 .70711 s\3941p03s01.dat
1 16 0 0 0 1 0 0 0 1 0 .19855 0 1 s\3941p03s01.dat
1 16 0 0 0 -1 0 0 0 1 0 .19855 0 1 s\3941p03s01.dat
Status:
Needs 2 More Votes (N)
This part has the following warnings
-
Decimal precision exceeds library recommendationLine 22: 1 16 .0021 0 .0021 .84743 0 .70711 0 1 0 -.56679 0 .70711 s\3941p03s01.datLine 23: 1 16 .0021 0 .0021 -.56679 0 .70711 0 1 0 .84743 0 .70711 s\3941p03s01.datLine 24: 1 16 -.0021 0 .0021 -.84743 0 -.70711 0 1 0 -.56679 0 .70711 s\3941p03s01.datLine 25: 1 16 -.0021 0 .0021 .56679 0 -.70711 0 1 0 .84743 0 .70711 s\3941p03s01.datLine 26: 1 16 0 0 0 1 0 0 0 1 0 .19855 0 1 s\3941p03s01.datLine 27: 1 16 0 0 0 -1 0 0 0 1 0 .19855 0 1 s\3941p03s01.dat
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2026-03-03 07:35:58
2026-03-03 15:27:27
2026-03-03 19:24:39
Header Edits
description:
Brick 2 x 2 Round with 3 Black and Light Bluish Gray Castle Windows Pattern
to
Brick 2 x 2 Round with 3 Black and Light Bluish Grey Castle Windows Pattern
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Out of curiosity I nonetheless was able to tweak the parameters to minimize the mismatches (and yes, the 45° rotated subpart now have a small origin offset, this is part of the matching process).
