Unofficial File parts/3941p04.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

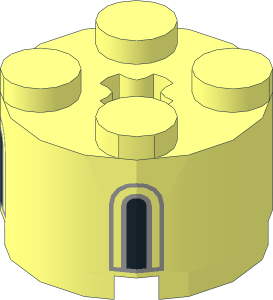

0 Brick 2 x 2 Round with 2 Black and Light Bluish Grey Castle Windows Pattern
0 Name: 3941p04.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Brick
0 !KEYWORDS Architecture, Bricklink 3941pb56, Brickowl 918952, Brickset 113283
0 !KEYWORDS Neuschwanstein Castle, Rebrickable 3941pr0010, Set 21063Show file code:
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3941s01.dat
1 16 0 0 0 0 0 -20 0 20 0 20 0 0 5-16cyli.dat
1 16 0 0 0 0 0 20 0 20 0 20 0 0 5-16cyli.dat
5 24 -7.654 0 -18.478 -7.654 20 -18.478 0 0 -20 -14.142 0 -14.142
5 24 7.654 0 -18.478 7.654 20 -18.478 14.142 0 -14.142 0 0 -20
5 24 -14.142 20 -14.142 -14.142 0 -14.142 -18.478 20 -7.654 -7.654 20 -18.478
5 24 -18.478 20 -7.654 -18.478 0 -7.654 -20 20 0 -14.142 20 -14.142
5 24 18.478 20 -7.654 18.478 0 -7.654 20 20 0 14.142 20 -14.142
5 24 14.142 20 -14.142 14.142 0 -14.142 18.478 20 -7.654 7.654 20 -18.478
1 16 0 0 0 0 0 -20 0 20 0 -20 0 0 1-16cyli.dat
1 16 0 0 0 0 0 20 0 20 0 -20 0 0 1-16cyli.dat
1 16 .0021 0 .0021 .84743 0 .70711 0 1 0 -.56679 0 .70711 s\3941p03s01.dat
1 16 .0021 0 .0021 -.56679 0 .70711 0 1 0 .84743 0 .70711 s\3941p03s01.dat
1 16 -.0021 0 .0021 -.84743 0 -.70711 0 1 0 -.56679 0 .70711 s\3941p03s01.dat
1 16 -.0021 0 .0021 .56679 0 -.70711 0 1 0 .84743 0 .70711 s\3941p03s01.datStatus
Needs 2 More Votes (N)
Current Votes:
No recorded votesThis part has the following automated holds from the Parts Tracker
-
Has Uncertified Subfiles
Part Dependencies
Official parents and subparts
Part Events
Philippe Hurbain [Philo]
initially submitted the part.
2026-03-03 07:36:13
Gabriel Läufer [Dr.Bricktacular]
made the following comment.
2026-03-03 08:37:51
(Minor) vertex mismatches between the patterned faces and the base part, as well as on the 5–16 cylinders between them.
Philippe Hurbain [Philo]
submitted a new version of the part (all votes reset).
2026-03-03 15:26:20
This is unavoidable because of rounding in prims and in rotated windows subpart. Not a problem anyway...
Out of curiosity I nonetheless was able to tweak the parameters to minimize the mismatches (and yes, the 45° rotated subpart now have a small origin offset, this is part of the matching process).
Out of curiosity I nonetheless was able to tweak the parameters to minimize the mismatches (and yes, the 45° rotated subpart now have a small origin offset, this is part of the matching process).
Philippe Hurbain [Philo]
submitted a new version of the part (all votes reset).
2026-03-03 15:26:42
This is unavoidable because of rounding in prims and in rotated windows subpart. Not a problem anyway...
Out of curiosity I nonetheless was able to tweak the parameters to minimize the mismatches (and yes, the 45° rotated subpart now have a small origin offset, this is part of the matching process).
Out of curiosity I nonetheless was able to tweak the parameters to minimize the mismatches (and yes, the 45° rotated subpart now have a small origin offset, this is part of the matching process).
Philippe Hurbain [Philo]
edited the part header.
2026-03-03 19:24:49
Header Edits
description:
Brick 2 x 2 Round with 2 Black and Light Bluish Gray Castle Windows Pattern
to
Brick 2 x 2 Round with 2 Black and Light Bluish Grey Castle Windows Pattern
