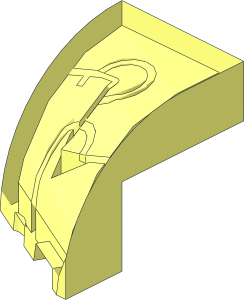

~Slope Brick Curved 3 x 2 x 1.667 with Cutout Left without Patternable Surfaces

File Header:

0 ~Slope Brick Curved  3 x  2 x  1.667 with Cutout Left without Patternable Surfaces
0 Name: s\7520s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2026-02-27 {LEGO Instructions App} Original part shape
0 !HISTORY 2026-02-27 [GeraldLasser] File preparation for LDraw Parts Tracker
