Unofficial File parts/8035.dat
Part Attributes:
File Header:

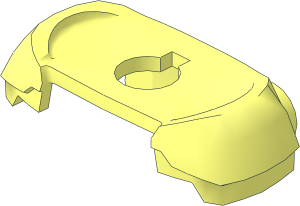

0 Minifig Armour with Shoulder Pads
0 Name: 8035.dat
0 Author: Peter Grass [Evilspyre]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Minifig Neckwear
0 !KEYWORDS Armor, Batman vs Superman, Brickowl 781022, DC, Set 76331
0 !HISTORY 2026-03-04 {LEGO Instructions App} Original part shape
0 !HISTORY 2026-03-04 [Evilspyre] File preparation for LDraw Parts Tracker
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\8035s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\8035s01.dat
1 16 10 10 18 1 0 0 0 0 1 0 -1 0 stud2.dat
1 16 -10 10 18 1 0 0 0 0 1 0 -1 0 stud2.dat
0 BFC INVERTNEXT
1 16 0 -1.5 5.5434 0 0 2.2962 1.5 0 0 0 3 0 box3u2p.dat
3 16 -2.2962 -3 8.5434 2.2962 -3 8.5434 0 -3 14.869
4 16 10 17 14.75 10 17 11.25 -10 17 11.25 -10 17 14.75
4 16 -7.3211 16.4673 14.75 7.3211 16.4673 14.75 10 17 14.75 -10 17 14.75
4 16 -5.0503 14.9497 14.75 5.0503 14.9497 14.75 7.3211 16.4673 14.75 -7.3211 16.4673 14.75
4 16 -5.0503 14.9497 14.75 -3.5327 12.6789 14.75 3.5327 12.6789 14.75 5.0503 14.9497 14.75
4 16 3 10 14.75 3.5327 12.6789 14.75 -3.5327 12.6789 14.75 -3 10 14.75
3 16 3 10 14.75 -3 10 14.75 0 1.5 14.75
4 16 10 17 11.25 10.002 .826 11.25 -10.002 .826 11.25 -10 17 11.25
4 16 9.981 .249 10.986 -9.981 .249 10.986 -10.002 .826 11.25 10.002 .826 11.25
4 16 9.981 .249 10.986 10.019 0 10.365 -10.019 0 10.365 -9.981 .249 10.986
4 16 10.019 0 10.365 2.2962 0 8.5434 -2.2962 0 8.5434 -10.019 0 10.365
2 24 10 17 11.25 -10 17 11.25
2 24 -10 17 14.75 10 17 14.75
2 24 -10 17 14.75 -7.3211 16.4673 14.75
5 24 10.002 .826 11.25 -10.002 .826 11.25 9.981 .249 10.986 -10 17 11.25
5 24 0 -.455 -11.22 0 0 -11.226 12.958 0 -10.867 -12.958 0 -10.867
5 24 0 1.5 14.75 0 1.25 15.771 6.445 1.25 15.738 -6.445 1.25 15.738
5 24 -9.981 .249 10.986 9.981 .249 10.986 10.019 0 10.365 -10.002 .826 11.25
5 24 10.019 0 10.365 -10.019 0 10.365 -9.981 .249 10.986 2.2962 0 8.5434
2 24 7.3211 16.4673 14.75 10 17 14.75
Status:
Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
| User | Vote |
|---|---|
| GeraldLasser | Certify |
Official parents and subparts
Part Events:
2026-03-05 02:44:09
2026-03-05 04:33:15
2026-03-05 04:59:44
2026-03-05 08:07:02

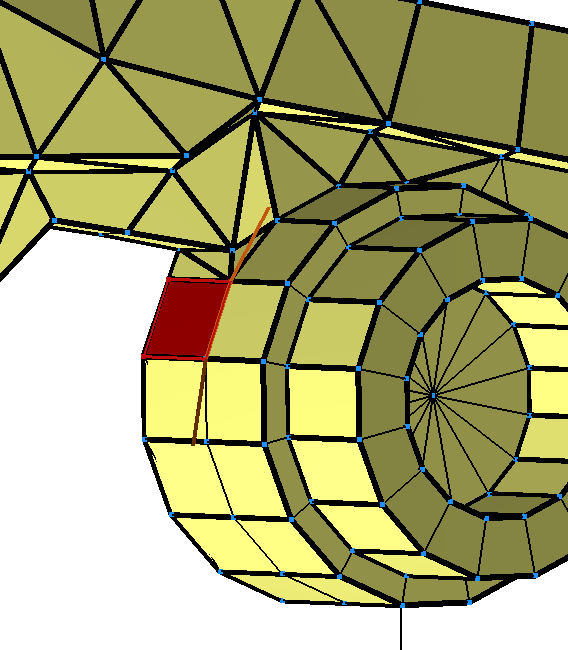

Adding a tiny thin cylinder segment over where the gap appears is a workaround that seems to work since it plugs the gap and obviously that gets substituted when all the other cylinder sections do in high res, but then there is a co-planar vert warning then if I upload it. I could just live with the gap I guess instead or not use cylinder segments for those particular areas but that isn't ideal either.
2026-03-05 08:12:49
Need more edgelines
2026-03-05 22:13:41
I would try like this
1 9 10 10 11.25 0 0 7 7 0 0 0 3.5 0 5-16cyli.dat
3 16 16.4673 7.3211 14.75 16.15 6.244 14.209 16.15 6.276 11.25
3 16 16.4673 7.3211 14.75 16.15 6.276 11.25 16.4673 7.3211 11.25
Convert these conds to edges:
2 24 27.53 5.671 9.792 23.165 4.806 11.905
2 24 24.34 9.799 6.734 24.362 9.759 11.325
2 24 24.356 9.771 -9.986 24.334 9.811 -5.372
2 24 24.334 9.811 -5.372 23.247 8.096 -6.712
2 24 22.11 6.308 -7.689 23.247 8.096 -6.712
2 24 24.34 9.799 6.734 23.208 8.009 8.349
2 24 22.119 6.293 9.451 23.208 8.009 8.349
1 9 10 10 11.25 0 0 7 7 0 0 0 3.5 0 5-16cyli.dat
3 16 16.4673 7.3211 14.75 16.15 6.244 14.209 16.15 6.276 11.25
3 16 16.4673 7.3211 14.75 16.15 6.276 11.25 16.4673 7.3211 11.25
Convert these conds to edges:
2 24 27.53 5.671 9.792 23.165 4.806 11.905
2 24 24.34 9.799 6.734 24.362 9.759 11.325
2 24 24.356 9.771 -9.986 24.334 9.811 -5.372
2 24 24.334 9.811 -5.372 23.247 8.096 -6.712
2 24 22.11 6.308 -7.689 23.247 8.096 -6.712
2 24 24.34 9.799 6.734 23.208 8.009 8.349
2 24 22.119 6.293 9.451 23.208 8.009 8.349
studs must be here in the main file to prevent mirrored stud logo (can anyone confirm the orientation?)
2026-03-06 02:27:09
2026-03-24 16:37:15
