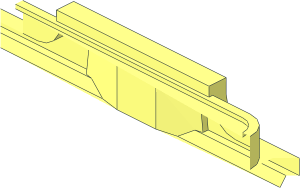

~Tile 2 x 2 SMART Play Tag Bottom Quarter

File Header:

0 ~Tile  2 x  2 SMART Play Tag Bottom Quarter
0 Name: s\u9536s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

1 16 0 .6 17.7 0 0 10.2 -.6 0 0 0 1 0 rect.dat
1 16 15.2 1.2 15.2 3 0 0 0 3.6 0 0 0 3 1-4cylo.dat
0 BFC INVERTNEXT
1 16 15.2 1.2 15.2 2 0 0 0 .5 0 0 0 2 1-4cylo.dat
1 16 15.2 1.2 15.2 1 0 0 0 1 0 0 0 1 1-4ring2.dat
1 16 15.2 4.8 15.2 3 0 0 0 1 0 0 0 3 1-4ndis.dat
0 BFC INVERTNEXT
1 16 13.2 1.8 20 0 0 -3 3 0 0 0 -1.8 0 1-4cylo.dat
1 16 13.2 1.8 20 0 0 -3 3 0 0 0 -1 0 1-4ndis.dat
1 16 13.2 1.8 18.2 0 0 -3 3 0 0 0 -1 0 1-4chrd.dat
1 16 0 0 18.85 0 0 -10.2 0 1 0 1.15 0 0 rect2p.dat
1 16 15.2 1.7 15.2 2 0 0 0 1 0 0 0 2 1-4chrd.dat

5 24 -15.2 1.2 18.2 -15.2 4.8 18.2 -16.3481 1.2 17.9717 -12.2 1.2 18.2
1 16 0 1.45 17.2 -15.2 0 0 0 0 .25 0 1 0 rect2p.dat
2 24 10.2 1.2 18.2 10.2 1.2 17.7
2 24 10.2 1.2 18.2 10.2 1.8 18.2
2 24 10.2 1.2 18.2 15.2 1.2 18.2
4 16 10.2 1.2 18.2 10.2 1.2 17.7 15.2 1.2 17.2 15.2 1.2 18.2
4 16 15.2 1.2 17.2 10.2 1.2 17.7 -10.2 1.2 17.7 -15.2 1.2 17.2
4 16 10.2 0 17.7 10.2 1.2 17.7 10.2 1.2 18.2 10.2 0 20
4 16 10.2 0 20 10.2 1.2 18.2 10.2 1.8 18.2 10.2 1.8 20
4 16 15.2 4.8 18.2 13.2 4.8 18.2 10.2 1.2 18.2 15.2 1.2 18.2
3 16 10.2 1.8 18.2 10.2 1.2 18.2 13.2 4.8 18.2
2 24 13.2 4.8 18.2 15.2 4.8 18.2
2 24 20 6.7 20 20 4.8 20
4 16 13.2 4.8 20 13.2 4.8 18.2 15.2 4.8 18.2 20 4.8 20
3 16 18.2 4.8 18.2 20 4.8 20 15.2 4.8 18.2
2 24 13.2 4.8 20 20 4.8 20
2 24 18.7 8 18.7 19.1 6.7 19.1
2 24 7.8 6.7 20 7.4 3.1 20
2 24 7.8 6.7 19.3 7.4 3.1 19.3
4 16 7.8 6.7 19.3 7.4 3.1 19.3 7.4 3.1 20 7.8 6.7 20
2 24 7.8 6.7 19.3 7.8 6.7 20
2 24 6.9273 6.7 19.1 5.004 8 18.7
2 24 6.9273 6.7 19.1 7.8 6.7 19.3
2 24 20 6.7 20 7.8 6.7 20
3 16 6.9273 6.7 19.1 7.8 6.7 19.3 19.1 6.7 19.1
4 16 19.1 6.7 19.1 7.8 6.7 19.3 7.8 6.7 20 20 6.7 20
2 24 5.004 8 18.7 18.7 8 18.7
2 24 19.1 6.7 19.1 6.9273 6.7 19.1
2 24 2.6 3.1 18.2 7.4 3.1 19.3
4 16 19.1 6.7 19.1 18.7 8 18.7 5.004 8 18.7 6.9273 6.7 19.1
4 16 7.4 3.1 20 10.2 1.8 20 10.2 4.8 20 7.8 6.7 20
4 16 13.2 4.8 20 20 4.8 20 20 6.7 20 7.8 6.7 20
3 16 10.2 4.8 20 13.2 4.8 20 7.8 6.7 20
2 24 -20 4.8 20 -13.2 4.8 20
2 24 -7.4 3.1 20 -7.8 6.7 20
2 24 -7.4 3.1 19.3 -7.8 6.7 19.3
4 16 -7.4 3.1 20 -7.4 3.1 19.3 -7.8 6.7 19.3 -7.8 6.7 20
2 24 -7.8 6.7 20 -7.8 6.7 19.3
2 24 -5.004 8 18.7 -6.9273 6.7 19.1
2 24 -7.8 6.7 19.3 -6.9273 6.7 19.1
2 24 -7.8 6.7 20 -20 6.7 20
3 16 -7.8 6.7 19.3 -6.9273 6.7 19.1 -19.1 6.7 19.1
4 16 -7.8 6.7 20 -7.8 6.7 19.3 -19.1 6.7 19.1 -20 6.7 20
2 24 -18.7 8 18.7 -5.004 8 18.7
2 24 -6.9273 6.7 19.1 -19.1 6.7 19.1
2 24 -5.004 8 18.7 -2.6 8 18.2
2 24 -7.4 3.1 19.3 -2.6 3.1 18.2
4 16 -5.004 8 18.7 -18.7 8 18.7 -19.1 6.7 19.1 -6.9273 6.7 19.1
4 16 -10.2 4.8 20 -10.2 1.8 20 -7.4 3.1 20 -7.8 6.7 20
4 16 -20 6.7 20 -20 4.8 20 -13.2 4.8 20 -7.8 6.7 20
3 16 -13.2 4.8 20 -10.2 4.8 20 -7.8 6.7 20
1 16 0 5.55 18.2 0 0 2.6 -2.45 0 0 0 -1 0 rect.dat
4 16 -2.6 3.1 18.2 -7.4 3.1 19.3 7.4 3.1 19.3 2.6 3.1 18.2
1 16 0 3.1 19.65 -7.4 0 0 0 -1 0 0 0 .35 rect3.dat
4 16 -10.2 1.8 20 10.2 1.8 20 7.4 3.1 20 -7.4 3.1 20
0 BFC INVERTNEXT
1 16 -13.2 1.8 20 0 0 3 3 0 0 0 -1.8 0 1-4cylo.dat
1 16 -13.2 1.8 20 0 0 3 3 0 0 0 -1 0 1-4ndis.dat
1 16 -13.2 1.8 18.2 0 0 3 3 0 0 0 -1 0 1-4chrd.dat
2 24 -10.2 1.2 17.7 -10.2 0 17.7
5 24 -13.2 4.8 18.2 -13.2 4.8 20 -12.0519 4.5717 20 -16.2 4.8 20
5 24 -10.2 1.8 18.2 -10.2 1.8 20 -10.4283 2.9481 20 -10.2 -1.2 20
2 24 -10.2 1.2 17.7 -10.2 1.2 18.2
2 24 -10.2 1.8 18.2 -10.2 1.2 18.2
4 16 -10.2 1.2 18.2 -10.2 1.2 17.7 -10.2 0 17.7 -10.2 0 20
4 16 -10.2 1.8 18.2 -10.2 1.2 18.2 -10.2 0 20 -10.2 1.8 20
3 16 -10.2 1.2 18.2 -10.2 1.8 18.2 -13.2 4.8 18.2
2 24 -15.2 4.8 18.2 -13.2 4.8 18.2
4 16 -15.2 4.8 18.2 -13.2 4.8 18.2 -13.2 4.8 20 -20 4.8 20
3 16 -20 4.8 20 -18.2 4.8 18.2 -15.2 4.8 18.2
4 16 -15.2 1.2 17.2 -10.2 1.2 17.7 -10.2 1.2 18.2 -15.2 1.2 18.2
4 16 -10.2 1.2 18.2 -13.2 4.8 18.2 -15.2 4.8 18.2 -15.2 1.2 18.2
1 16 0 .9 20 -10.2 0 0 0 0 -.9 0 -1 0 rect3.dat
4 16 7.4 3.1 19.3 7.8 6.7 19.3 6.9273 6.7 19.1 2.6 3.1 18.2
4 16 -6.9273 6.7 19.1 -7.8 6.7 19.3 -7.4 3.1 19.3 -2.6 3.1 18.2
2 24 2.6 8 18.2 5.004 8 18.7
4 16 2.6 3.1 18.2 6.9273 6.7 19.1 5.004 8 18.7 2.6 8 18.2
4 16 -5.004 8 18.7 -6.9273 6.7 19.1 -2.6 3.1 18.2 -2.6 8 18.2
3 16 2.6 8 18.2 5.004 8 18.7 18.7 8 18.7
3 16 -5.004 8 18.7 -2.6 8 18.2 -18.7 8 18.7
3 16 17.2 1.7 15.2 15.2 1.7 17.2 -15.2 1.7 17.2
2 24 -10.2 1.2 18.2 -15.2 1.2 18.2
5 24 -2.6 3.1 18.2 -6.9273 6.7 19.1 -7.8 6.7 19.3 -2.6 8 18.2
5 24 6.9273 6.7 19.1 2.6 3.1 18.2 7.4 3.1 19.3 5.004 8 18.7
