Unofficial File parts/8411.dat
Part Attributes:
File Header:

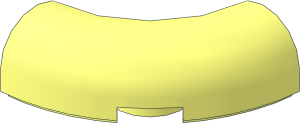

0 Brick 2 x 2 x 0.667 Corner Round with Curved Top
0 Name: 8411.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS macaroni
0 !HISTORY 2026-03-01 {LEGO Instructions App} Original part shape
0 !HISTORY 2026-03-06 [Blechtaler] File preparation for LDraw Parts Tracker
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\8411s01.dat
1 16 0 0 0 0 0 -1 0 1 0 -1 0 0 s\8411s01.dat
1 16 -10 -6 10 30 0 0 0 -30 0 0 0 -30 t04i3333.dat
1 16 -10 -16 10 30 0 0 0 1 0 0 0 -30 48\1-4aring.dat
1 16 -10 -6 10 30 0 0 0 -30 0 0 0 -30 48\tm08o3333.dat
1 16 -10 -6 10 0 0 30 0 -30 0 -30 0 0 48\tm08o3333.dat
5 24 8.213 -10.242 -8.213 7.292 -8.295 -7.292 9.4156 -8.295 -4.1162 4.1162 -8.295 -9.4156
5 24 15.1327 -8.2962 -15.1327 14.2129 -10.2426 -14.2129 17.1681 -10.2426 -10.8469 10.8469 -10.2426 -17.1681
5 24 4.3432 -1 -4.3432 4.3432 0 -4.3432 3.3238 0 -5.8684 5.8684 0 -3.3238
5 24 15.4556 -4 -15.4556 15.455 -6 -15.455 18.56 -6 -11.915 11.915 -6 -18.56
5 24 6.971 -6 -6.971 6.971 -4 -6.971 4.2394 -4 -8.796 8.796 -4 -4.2394
5 24 14.2129 -10.2426 -14.2129 12.8366 -11.5434 -12.8366 15.6238 -11.5434 -9.6619 9.6619 -11.5434 -15.6238
5 24 15.455 -6 -15.455 15.1327 -8.2962 -15.1327 18.2 -8.2962 -11.6388 11.6388 -8.2962 -18.2
5 24 12.8366 -11.5434 -12.8366 11.213 -12 -11.213 8.264 -12 -13.802 13.802 -12 -8.264
5 24 9.59 -11.544 -9.59 8.213 -10.242 -8.213 13.796 -10.242 .142 -.142 -10.242 -13.796
5 24 5.7574 -4 -5.7574 5.7574 0 -5.7574 4.4566 0 -7.7038 7.7038 0 -4.4566
5 24 7.292 -8.295 -7.292 6.971 -6 -6.971 8.796 -6 -4.2394 4.2394 -6 -8.796
5 24 11.213 -12 -11.213 9.59 -11.544 -9.59 .602 -11.544 -15.596 15.596 -11.544 -.602
Status:
Errors Found (HN)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
| User | Vote |
|---|---|
| Blechtaler | Hold |
Official parents and subparts
Part Events:
2026-03-06 11:45:56
forgot the 48 for the outer hi-res tori
not released yet (not on RB/BL)
Creative Commons Attribution License information
This part is copyright © Rene Rechthaler
Licensed under CC BY 4.0
