Unofficial File parts/s/70943s03.dat
File Header:

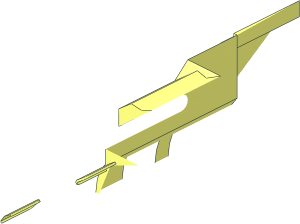

0 ~Figure Leg Mecha Pin with Friction - Quarter
0 Name: s\70943s03.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 0 -2 -.70711 0 .70711 .70711 0 .70711 0 1 0 fric.dat
1 16 0 0 -18 -.70711 0 .70711 .70711 0 .70711 0 -1 0 fric.dat
4 16 -5.85 -3 -2 -6.2784 -1.6822 -2 -6.5 0 -2 -5 -4.135 -2
4 16 -5 -4.135 -2 -4.2426 -4.2426 -2 0 -6 -2 -5 -6 -2
4 16 -5 -4.135 -2 -6.5 0 -2 -6 0 -2 -4.2426 -4.2426 -2
4 16 -5 -4.135 -2 -5 -4.146 18 -5.85 -3 9 -5.85 -3 7
3 16 -5.85 -3 -2 -5 -4.135 -2 -5.85 -3 2
3 16 -5.85 -3 7 -5.85 -3 2 -5 -4.135 -2
4 16 -6.2784 -1.6822 9 -6.2784 -1.6822 7 -5.85 -3 7 -5.85 -3 9
4 16 -6.2784 -1.6822 2 -6.2784 -1.6822 -2 -5.85 -3 -2 -5.85 -3 2
4 16 -6.2784 -1.6822 -2 -6.2784 -1.6822 2 -6.5 0 2 -6.5 0 -2
4 16 -6.2784 -1.6822 7 -6.2784 -1.6822 9 -6.5 0 9 -6.5 0 7
3 16 -5 -4.146 18 -5.85 -3 18 -5.85 -3 9
2 24 -6.5 0 2 -6.2784 -1.6822 2
2 24 -6.2784 -1.6822 2 -5.85 -3 2
2 24 -6.5 0 7 -6.2784 -1.6822 7
2 24 -6.2784 -1.6822 7 -5.85 -3 7
2 24 -6.5 0 -2 -6.2784 -1.6822 -2
2 24 -6.2784 -1.6822 -2 -5.85 -3 -2
2 24 -5.85 -3 -2 -5 -4.135 -2
2 24 -5 -4.146 18 -5 -4.135 -2
2 24 -6.5 0 9 -6.2784 -1.6822 9
2 24 -6.2784 -1.6822 9 -5.85 -3 9
2 24 -5.85 -3 18 -5 -4.146 18
5 24 -6.2784 -1.6822 -2 -6.2784 -1.6822 2 -6.5 0 2 -5.85 -3 2
5 24 -5.85 -3 -2 -5.85 -3 2 -6.2784 -1.6822 -2 -5 -4.135 -2
5 24 -5.85 -3 7 -5.85 -3 9 -6.2784 -1.6822 9 -5 -4.135 -2
5 24 -6.2784 -1.6822 7 -6.2784 -1.6822 9 -6.5 0 9 -5.85 -3 9
0 BFC INVERTNEXT
1 16 -6.5 -11 23 0 0 1 0 1 0 -5 0 0 box2-5.dat
3 16 -5 -4.146 18 -7.5 -3 18 -5.85 -3 18
4 16 -7.5 -3 18 -5 -4.146 18 -5.5 -10 18 -7.5 -10 18
4 16 -5 -4.146 18 -5 -12 18 -5.5 -12 18 -5.5 -10 18
2 24 -5 -12 18 -5.5 -12 18
2 24 -7.5 -3 18 -7.5 -10 18
1 16 -5 -7 9.5 0 1 0 1 0 0 0 0 1 2-4ndis.dat
4 16 -5 -4.135 -2 -5 -6 -2 -5 -6 9.5 -5 -4.146 18
3 16 -5 -6 9.5 -5 -6 10.5 -5 -4.146 18
3 16 -5 -4.146 18 -5 -6 10.5 -5 -7 10.5
4 16 -5 -12 10.5 -5 -12 18 -5 -8 10.5 -5 -10.178 8.5
4 16 -5 -12 18 -5 -4.146 18 -5 -7 10.5 -5 -8 10.5
2 24 -5 -4.135 -2 -5 -6 -2
2 24 -5 -4.146 18 -5 -12 18
0 // Rachet
4 16 0 -12 10.5 -1.501 -11.401 9.8425 -1.501 -11.401 0 0 -12 0
4 16 -1.501 -11.401 9.8425 -3.106 -11.591 10.051 -3.106 -11.591 0 -1.501 -11.401 0
4 16 -3.106 -11.591 10.051 -5 -10.178 8.5 -5 -10.178 0 -3.106 -11.591 0
4 16 -5 -10.178 0 -5 -10.178 8.5 -5 -8 10.5 -5 -8 0
3 16 -3.106 -11.591 0 -5 -10.178 0 -5 -8 0
3 16 0 -12 0 -1.501 -11.401 0 -5 -8 0
3 16 -1.501 -11.401 0 -3.106 -11.591 0 -5 -8 0
3 16 -5 -12 10.5 -5 -10.178 8.5 -3.106 -11.591 10.051
3 16 -5 -12 10.5 -3.106 -11.591 10.051 0 -12 10.5
3 16 0 -12 10.5 -3.106 -11.591 10.051 -1.501 -11.401 9.8425
2 24 -5 -8 0 -5 -8 9.5
2 24 0 -12 0 -1.501 -11.401 0
2 24 -1.501 -11.401 0 -3.106 -11.591 0
2 24 -3.106 -11.591 0 -5 -10.178 0
5 24 -1.501 -11.401 9.8425 -1.501 -11.401 0 0 -12 10.5 -3.106 -11.591 10.051
2 24 -3.106 -11.591 10.051 -3.106 -11.591 0
2 24 -5 -10.178 0 -5 -10.178 8.5
2 24 -5 -8 0 -5 -10.178 0
2 24 -3.106 -11.591 10.051 -5 -10.178 8.5
2 24 0 -12 10.5 -1.501 -11.401 9.8425
2 24 -1.501 -11.401 9.8425 -3.106 -11.591 10.051
2 24 -5 -12 10.5 -5 -10.178 8.5
2 24 -5 -12 10.5 0 -12 10.5
2 24 -5 -12 10.5 -5 -12 18
3 16 -7.5 -3 18 -7.5 -10 18 -7.5 -10 28
3 16 -5.5 -12 18 -5 -12 18 -5.5 -12 28
Status:
Needs 2 More Votes (N)
This part has the following warnings
-
Decimal precision exceeds library recommendationLine 9: 1 16 0 0 -2 -.70711 0 .70711 .70711 0 .70711 0 1 0 fric.datLine 10: 1 16 0 0 -18 -.70711 0 .70711 .70711 0 .70711 0 -1 0 fric.dat
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2026-03-06 19:14:30
