Unofficial File parts/s/7877s03.dat

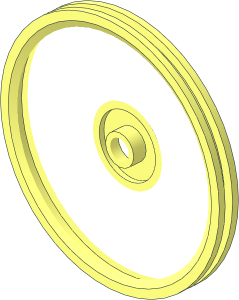

~Wheel Rim 13 x 56 Half
File Header:
0 ~Wheel Rim 13 x 56 Half 0 Name: s\7877s03.dat 0 Author: Jens Brühl [jb70] 0 !LDRAW_ORG Unofficial_Subpart 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !KEYWORDS Set 11376 0 !HISTORY 2026-03-01 {LEGO Instructions App} Original part shape 0 !HISTORY 2026-03-08 [jb70] File preparation for LDraw Parts Tracker
Show contents
0 // Hub 1 16 0 0 -10 9 0 0 0 0 9 0 8 0 4-4cylo.dat 1 16 0 0 -10 3 0 0 0 0 3 0 1 0 4-4ring2.dat 1 16 0 0 -2 9 0 0 0 0 9 0 1 0 4-4ring1.dat 0 BFC INVERTNEXT 1 16 0 0 -2 18 0 0 0 0 18 0 -3 0 48\4-4cylo.dat 1 16 0 0 -2 18 0 0 0 0 18 0 1 0 48\4-4aring.dat 1 16 0 0 -5 1.8 0 0 0 0 -1.8 0 1 0 48\4-4ring10.dat 1 16 0 0 -5 2.2 0 0 0 0 -2.2 0 1 0 48\4-4ring9.dat 1 16 0 0 -10 6 0 0 0 0 6 0 1 0 4-4ering.dat 0 // Outer rim 1 16 0 0 -16.25 5 0 0 0 0 5 0 1 0 48\4-4ring13.dat 1 16 0 0 -16.25 65 0 0 0 0 65 0 -1 0 48\4-4edge.dat 1 16 0 0 -12.5 5 0 0 0 0 5 0 -1 0 48\4-4ring13.dat 1 16 0 0 -12.5 70 0 0 0 0 70 0 -3.75 0 48\4-4cylo.dat 1 16 0 0 -7.75 65 0 0 0 0 65 0 -4.75 0 48\4-4cylo.dat 1 16 0 0 -7.75 5 0 0 0 0 5 0 1 0 48\4-4ring13.dat 1 16 0 0 -4 70 0 0 0 0 70 0 -3.75 0 48\4-4cylo.dat 1 16 0 0 -4 5 0 0 0 0 5 0 -1 0 48\4-4ring13.dat 0 BFC INVERTNEXT 1 16 0 0 -14.91667 1.25 0 0 0 0 -1.25 0 .66667 0 48\1-4con49.dat 0 BFC INVERTNEXT 1 16 0 0 -14.91667 0 0 1.25 1.25 0 0 0 .66667 0 48\1-4con49.dat 0 BFC INVERTNEXT 1 16 0 0 -14.91667 -1.25 0 0 0 0 1.25 0 .66667 0 48\1-4con49.dat 0 BFC INVERTNEXT 1 16 0 0 -14.91667 0 0 -1.25 -1.25 0 0 0 .66667 0 48\1-4con49.dat 0 BFC INVERTNEXT 1 16 0 0 -16.25 2.5 0 0 0 0 -2.5 0 1.33333 0 48\4-4con25.dat
Status:
Not releaseable Needs 1 More Vote (CN) Needs 1 More Vote (CN)
This part has the following warnings
  • Decimal precision exceeds library recommendation
    Line 35: 1 16 0 0 -14.91667 1.25 0 0 0 0 -1.25 0 .66667 0 48\1-4con49.dat
    Line 37: 1 16 0 0 -14.91667 0 0 1.25 1.25 0 0 0 .66667 0 48\1-4con49.dat
    Line 39: 1 16 0 0 -14.91667 -1.25 0 0 0 0 1.25 0 .66667 0 48\1-4con49.dat
    Line 41: 1 16 0 0 -14.91667 0 0 -1.25 -1.25 0 0 0 .66667 0 48\1-4con49.dat
    Line 43: 1 16 0 0 -16.25 2.5 0 0 0 0 -2.5 0 1.33333 0 48\4-4con25.dat
This part has the following automated holds from the Parts Tracker
  • No path of certified files to a certified or official parent in the parts folder
Current Votes:
User Vote
Philo Certify
Official parents and subparts
Part Events:
Jens Brühl [jb70]
Part Author
initially submitted the part.
2026-03-08 17:59:03
Rene Rechthaler [Blechtaler]
Part Header Editor
made the following comment.
2026-03-08 19:00:15
should add an ering at the center around the axlehole, it doesnt have prim subst
and the cone which is now in the spoke subpart should be a prim here
Jens Brühl [jb70]
Part Author
submitted a new version of the part.
2026-03-08 19:57:18
Moved Cone with primitives in 7877s03.dat. Added ering around axlehole.
Philippe Hurbain [Philo]
Senior Part Reviewer
posted a vote of Certify.
2026-03-09 06:27:19
