Unofficial File parts/7877.dat
Part Attributes:
External Sites:
External site data provided by Rebrickable.com View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

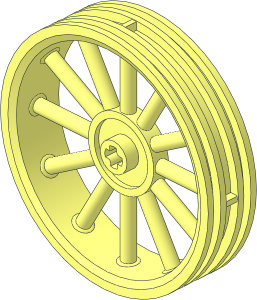

Wheel Rim 13 x 56 with 12 Spokes and Axlehole
File Header:
0 Wheel Rim 13 x 56 with 12 Spokes and Axlehole 0 Name: 7877.dat 0 Author: Jens Brühl [jb70] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !KEYWORDS Brickowl 222818, Set 11376 0 !HISTORY 2026-03-01 {LEGO Instructions App} Original part shape 0 !HISTORY 2026-03-08 [jb70] File preparation for LDraw Parts Tracker
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\7877s03.dat 1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\7877s03.dat 0 // Hub 1 16 0 0 -10 1 0 0 0 0 -1 0 20 0 axl3hole.dat 1 16 0 0 -5 22 0 0 0 0 22 0 10 0 48\4-4cylo.dat 0 // 12 Spokes 1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\7877s01.dat 1 16 0 0 0 .86603 -.5 0 .5 .86603 0 0 0 1 s\7877s01.dat 1 16 0 0 0 .5 -.86603 0 .86603 .5 0 0 0 1 s\7877s01.dat 1 16 0 0 0 0 -1 0 1 0 0 0 0 1 s\7877s01.dat 1 16 0 0 0 -.5 -.86603 0 .86603 -.5 0 0 0 1 s\7877s01.dat 1 16 0 0 0 -.86603 -.5 0 .5 -.86603 0 0 0 1 s\7877s01.dat 1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\7877s01.dat 1 16 0 0 0 -.86603 .5 0 -.5 -.86603 0 0 0 1 s\7877s01.dat 1 16 0 0 0 -.5 .86603 0 -.86603 -.5 0 0 0 1 s\7877s01.dat 1 16 0 0 0 0 1 0 -1 0 0 0 0 1 s\7877s01.dat 1 16 0 0 0 .5 .86603 0 -.86603 .5 0 0 0 1 s\7877s01.dat 1 16 0 0 0 .86603 .5 0 -.5 .86603 0 0 0 1 s\7877s01.dat 0 // Outer rim 0 BFC INVERTNEXT 1 16 0 0 -14.25 61.25 0 0 0 0 61.25 0 28.5 0 48\4-4cylo.dat 1 16 0 0 -4 65 0 0 0 0 65 0 8 0 48\4-4cylo.dat 1 16 0 -64.9 0 0 0 1.5 0 -4.7 0 -4 0 0 box3u2p.dat 1 16 64.9 0 0 0 4.7 0 0 0 1.5 -4 0 0 box3u2p.dat 1 16 0 64.9 0 0 0 -1.5 0 4.7 0 -4 0 0 box3u2p.dat 1 16 -64.9 0 0 0 -4.7 0 0 0 -1.5 -4 0 0 box3u2p.dat
Status:
Not releaseable Needs 1 More Vote (CN) Needs 1 More Vote (CN)
This part has the following warnings
  • Decimal precision exceeds library recommendation
    Line 23: 1 16 0 0 0 .86603 -.5 0 .5 .86603 0 0 0 1 s\7877s01.dat
    Line 24: 1 16 0 0 0 .5 -.86603 0 .86603 .5 0 0 0 1 s\7877s01.dat
    Line 26: 1 16 0 0 0 -.5 -.86603 0 .86603 -.5 0 0 0 1 s\7877s01.dat
    Line 27: 1 16 0 0 0 -.86603 -.5 0 .5 -.86603 0 0 0 1 s\7877s01.dat
    Line 29: 1 16 0 0 0 -.86603 .5 0 -.5 -.86603 0 0 0 1 s\7877s01.dat
    Line 30: 1 16 0 0 0 -.5 .86603 0 -.86603 -.5 0 0 0 1 s\7877s01.dat
    Line 32: 1 16 0 0 0 .5 .86603 0 -.86603 .5 0 0 0 1 s\7877s01.dat
    Line 33: 1 16 0 0 0 .86603 .5 0 -.5 .86603 0 0 0 1 s\7877s01.dat
This part has the following automated holds from the Parts Tracker
Current Votes:
User Vote
Philo Certify
Official parents and subparts
Part Events:
Jens Brühl [jb70]
Part Author
initially submitted the part.
2026-03-08 17:59:29
Philippe Hurbain [Philo]
Senior Part Reviewer
posted a vote of Certify.
2026-03-09 06:27:18
Philippe Hurbain [Philo]
Senior Part Reviewer
made the following comment.
2026-03-09 06:27:39
Great work!
