File Detail parts/u9650.dat

Unofficial File parts/u9650.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

File Header:

0 Windscreen  2 x 4
0 Name: u9650.dat
0 Author: Jeff Jones [notmaster]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Bricklink x453, Brickowl 334420, Rebrickable upn0251

0 !HISTORY 2026-03-10 [notmaster] copied from 21.dat

Show contents

2 24 36 24 -20 36 24 6
2 24 36 24 6 -36 24 6
2 24 -36 24 6 -36 24 -20
2 24 40 24 -20 40 24 10
2 24 40 24 10 -40 24 10
2 24 -40 24 10 -40 24 -20
2 24 36 24 6 36 4 6
2 24 -36 24 6 -36 4 6
2 24 40 24 10 40 0 10
2 24 -40 24 10 -40 0 10
4 16 40 24 10 36 24 6 -36 24 6 -40 24 10
3 16 36 24 6 36 24 -20 36 20 -20
3 16 -36 20 -20 -36 24 -20 -36 24 6
3 16 40 20 -20 40 24 -20 40 24 10
3 16 -40 24 10 -40 24 -20 -40 20 -20
4 16 36 24 6 36 4 6 -36 4 6 -36 24 6
4 16 36 20 -20 36 4 -4 36 4 6 36 24 6
4 16 -36 24 6 -36 4 6 -36 4 -4 -36 20 -20
4 16 -40 24 10 -40 0 10 40 0 10 40 24 10
4 16 40 24 10 40 0 10 40 0 0 40 20 -20
4 16 -40 20 -20 -40 0 0 -40 0 10 -40 24 10
2 24 40 0 0 40 0 10
2 24 40 0 10 -40 0 10
2 24 -40 0 10 -40 0 0
4 16 -40 0 10 -40 0 0 40 0 0 40 0 10
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 stug-4x1.dat
2 24 36 4 -4 36 4 6
2 24 36 4 6 -36 4 6
2 24 -36 4 6 -36 4 -4
4 16 36 4 6 36 4 -4 -36 4 -4 -36 4 6

1 16 30 20 -20 10 0 0 0 4 0 0 0 -10 3-16cyli.dat
1 16 0 20 26.195 0 0 88.3904 0 4 0 -60 0 0 48\1-16cyli.dat
1 16 30 0 0 10 0 0 0 20 0 0 -20 -10 3-16cyli.dat
1 16 0 0 46.195 0 0 88.3904 0 20 0 -60 -20 0 48\1-16cyli.dat
0 BFC INVERTNEXT
1 16 30 20 -20 6 0 0 0 4 0 0 0 -6 3-16cyli.dat
0 BFC INVERTNEXT
1 16 0 20 26.195 0 0 84.3904 0 4 0 -56 0 0 48\1-16cyli.dat
0 BFC INVERTNEXT
1 16 30 4 -4 6 0 0 0 16 0 0 -16 -6 3-16cyli.dat
0 BFC INVERTNEXT
1 16 0 4 42.195 0 0 84.3904 0 16 0 -56 -16 0 48\1-16cyli.dat

1 16 -30 20 -20 -10 0 0 0 4 0 0 0 -10 3-16cyli.dat
1 16 0 20 26.195 0 0 -88.3904 0 4 0 -60 0 0 48\1-16cyli.dat
1 16 -30 0 0 -10 0 0 0 20 0 0 -20 -10 3-16cyli.dat
1 16 0 0 46.195 0 0 -88.3904 0 20 0 -60 -20 0 48\1-16cyli.dat
0 BFC INVERTNEXT
1 16 -30 20 -20 -6 0 0 0 4 0 0 0 -6 3-16cyli.dat
0 BFC INVERTNEXT
1 16 0 20 26.195 0 0 -84.3904 0 4 0 -56 0 0 48\1-16cyli.dat
0 BFC INVERTNEXT
1 16 -30 4 -4 -6 0 0 0 16 0 0 -16 -6 3-16cyli.dat
0 BFC INVERTNEXT
1 16 0 4 42.195 0 0 -84.3904 0 16 0 -56 -16 0 48\1-16cyli.dat

1 16 -30 24 -20 -1.5 0 0 0 -1 0 0 0 -1.5 3-16ring4.dat
1 16 -30 24 -20 -2.5 0 0 0 -1 0 0 0 -2.5 3-16ring3.dat
1 16 30 24 -20 1.5 0 0 0 -1 0 0 0 -1.5 3-16ring4.dat
1 16 30 24 -20 2.5 0 0 0 -1 0 0 0 -2.5 3-16ring3.dat

1 16 -30 24 -20 -10 0 0 0 -1 0 0 0 -10 3-16edge.dat
1 16 -30 24 -20 -6 0 0 0 -1 0 0 0 -6 3-16edge.dat
1 16 30 24 -20 10 0 0 0 -1 0 0 0 -10 3-16edge.dat
1 16 30 24 -20 6 0 0 0 -1 0 0 0 -6 3-16edge.dat

1 16 0 24 26.195 0 0 88.3904 0 1 0 -60 0 0 48\1-16edge.dat
1 16 0 24 26.195 0 0 84.3904 0 1 0 -56 0 0 48\1-16edge.dat
1 16 0 24 26.195 0 0 -88.3904 0 1 0 -60 0 0 48\1-16edge.dat
1 16 0 24 26.195 0 0 -84.3904 0 1 0 -56 0 0 48\1-16edge.dat
1 16 0 24 26.195 0 0 84.3904 0 -1 0 -56 0 0 48\1-16tang.dat
1 16 0 24 26.195 0 0 -84.3904 0 -1 0 -56 0 0 48\1-16tang.dat
4 16 16.785 24 -29.805 11.535 24 -33.289 0 24 -33.805 0 24 -29.805
3 16 11.535 24 -33.289 16.785 24 -29.805 22.875 24 -31.759
4 16 33.827 24 -29.239 22.875 24 -31.759 16.785 24 -29.805 32.296 24 -25.543
4 16 -16.785 24 -29.805 0 24 -29.805 0 24 -33.805 -11.535 24 -33.289
4 16 -22.875 24 -31.759 -33.827 24 -29.239 -32.296 24 -25.543 -16.785 24 -29.805
3 16 -22.875 24 -31.759 -16.785 24 -29.805 -11.535 24 -33.289
4 16 -36 24 6 -37.5 24 -20 -40 24 -20 -40 24 10
3 16 -36 24 -20 -37.5 24 -20 -36 24 6
4 16 40 24 -20 37.5 24 -20 36 24 6 40 24 10
3 16 37.5 24 -20 36 24 -20 36 24 6
1 16 -30 0 0 -10 0 0 0 -1 0 0 0 -10 3-16edge.dat
1 16 -30 4 -4 -6 0 0 0 -1 0 0 0 -6 3-16edge.dat
1 16 30 0 0 10 0 0 0 -1 0 0 0 -10 3-16edge.dat
1 16 30 4 -4 6 0 0 0 -1 0 0 0 -6 3-16edge.dat
1 16 0 0 46.195 0 0 88.3904 0 1 0 -60 0 0 48\1-16edge.dat
1 16 0 4 42.195 0 0 84.3904 0 1 0 -56 0 0 48\1-16edge.dat
1 16 0 0 46.195 0 0 -88.3904 0 1 0 -60 0 0 48\1-16edge.dat
1 16 0 4 42.195 0 0 -84.3904 0 1 0 -56 0 0 48\1-16edge.dat

1 16 -30 0 0 -10 0 0 0 1 0 0 0 -10 3-16chrd.dat
1 16 -30 4 -4 -6 0 0 0 -1 0 0 0 -6 3-16chrd.dat
1 16 30 0 0 10 0 0 0 1 0 0 0 -10 3-16chrd.dat
1 16 30 4 -4 6 0 0 0 -1 0 0 0 -6 3-16chrd.dat
1 16 0 0 46.195 0 0 88.3904 0 1 0 -60 0 0 48\1-16chrd.dat
1 16 0 4 42.195 0 0 84.3904 0 -1 0 -56 0 0 48\1-16chrd.dat
1 16 0 0 46.195 0 0 -88.3904 0 1 0 -60 0 0 48\1-16chrd.dat
1 16 0 4 42.195 0 0 -84.3904 0 -1 0 -56 0 0 48\1-16chrd.dat
4 16 36 4 -4 32.296 4 -9.543 -32.296 4 -9.543 -36 4 -4
3 16 -32.296 4 -9.543 32.296 4 -9.543 0 4 -13.805
4 16 -40 0 0 -33.827 0 -9.239 33.827 0 -9.239 40 0 0
3 16 -33.827 0 -9.239 0 0 -13.805 33.827 0 -9.239
5 24 -32.296 20 -25.543 -21.84 20 -27.895 -21.84 24 -27.895 -32.296 4 -9.543
5 24 -11.535 20 -33.289 0 20 -33.805 0 24 -33.805 -11.535 0 -13.289
5 24 -33.827 20 -29.239 -37.071 20 -27.071 -33.827 0 -9.239 -37.071 24 -27.071
5 24 -22.875 20 -31.759 -11.535 20 -33.289 -22.875 0 -11.759 -11.535 24 -33.289
5 24 22.875 20 -31.759 11.535 20 -33.289 11.535 24 -33.289 22.875 0 -11.759
5 24 39.239 20 -23.827 40 20 -20 39.239 0 -3.827 40 24 -20
5 24 -21.84 20 -27.895 -11.013 20 -29.323 -11.013 24 -29.323 -21.84 4 -11.895
5 24 -39.239 20 -23.827 -40 20 -20 -39.239 0 -3.827 -40 24 -20
5 24 36 20 -20 35.543 20 -22.296 35.543 4 -6.296 36 24 -20
5 24 37.071 20 -27.071 39.239 20 -23.827 37.071 0 -7.071 39.239 24 -23.827
5 24 33.827 20 -29.239 37.071 20 -27.071 33.827 0 -9.239 37.071 24 -27.071
5 24 -32.296 20 -25.543 -34.243 20 -24.243 -32.296 4 -9.543 -34.243 24 -24.243
5 24 11.535 20 -33.289 0 20 -33.805 11.535 0 -13.289 0 24 -33.805
5 24 -33.827 20 -29.239 -22.875 20 -31.759 -33.827 0 -9.239 -22.875 24 -31.759
5 24 -35.543 20 -22.296 -36 20 -20 -35.543 4 -6.296 -36 24 -20
5 24 34.243 20 -24.243 32.296 20 -25.543 32.296 4 -9.543 34.243 24 -24.243
5 24 0 20 -29.805 11.013 20 -29.323 11.013 4 -13.323 0 24 -29.805
5 24 35.543 20 -22.296 34.243 20 -24.243 34.243 4 -8.243 35.543 24 -22.296
5 24 -37.071 20 -27.071 -39.239 20 -23.827 -37.071 0 -7.071 -39.239 24 -23.827
5 24 21.84 20 -27.895 32.296 20 -25.543 32.296 4 -9.543 21.84 24 -27.895
5 24 33.827 20 -29.239 22.875 20 -31.759 33.827 0 -9.239 22.875 24 -31.759
5 24 -34.243 20 -24.243 -35.543 20 -22.296 -34.243 4 -8.243 -35.543 24 -22.296
5 24 -11.013 20 -29.323 0 20 -29.805 0 24 -29.805 -11.013 4 -13.323
5 24 11.013 20 -29.323 21.84 20 -27.895 21.84 4 -11.895 11.013 24 -29.323

Status:

Errors Found (HN)

This part has the following warnings

Number in description may need a leading space

Current Votes:

User	Vote
Blechtaler	Hold

Official parents and subparts

Part Events:

Jeff Jones [notmaster]

initially submitted the part.

2026-03-10 20:14:38

is this the oldest part to be missing?

Jeff Jones [notmaster]

submitted a new version of the part.

2026-03-10 20:17:06

Rene Rechthaler [Blechtaler]

posted a vote of Hold.

2026-03-10 20:20:22

front condlines arent good
misses the front curve

Jeff Jones [notmaster]

submitted a new version of the part.

2026-03-10 20:55:07

Rene Rechthaler [Blechtaler]

posted a vote of Hold.

2026-03-10 21:44:23

too thin at the bottom corners now (front is protruding and nearly reaches the next studs)

Peter Grass [Evilspyre]

made the following comment.

2026-03-11 09:39:34

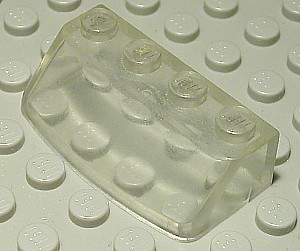

Front curved edge should be half way between the next set of studs same as this picture:
https://i.postimg.cc/J7y8gRR4/x453.jpg

The slope needs to be steeper and the part the 4 studs sit on extends out further. I would assume the interior angle would match too to the exterior slope.

Peter Grass [Evilspyre]

made the following comment.

2026-03-11 09:49:52

The bottom curved edge also looks to be stud height.

Jeff Jones [notmaster]

made the following comment.

2026-03-11 11:19:05

Does anyone own the part i would like to see high res scans of it unfortunately therent good images for it.

Rene Rechthaler [Blechtaler]

made the following comment.

2026-03-11 11:47:54

not at hand, but you could try something like this (mixed curve)
1 16 30 20 -20 10 0 0 0 4 0 0 0 -10 3-16cyli.dat
1 16 0 20 26.195 0 0 88.3904 0 4 0 -60 0 0 48\1-16cyli.dat
1 16 30 0 0 10 0 0 0 20 0 0 -20 -10 3-16cyli.dat
1 16 0 0 46.195 0 0 88.3904 0 20 0 -60 -20 0 48\1-16cyli.dat
inside inverted
0 BFC INVERTNEXT
1 16 30 20 -20 6 0 0 0 4 0 0 0 -6 3-16cyli.dat
0 BFC INVERTNEXT
1 16 0 20 26.195 0 0 84.3904 0 4 0 -56 0 0 48\1-16cyli.dat
0 BFC INVERTNEXT
1 16 30 4 -4 6 0 0 0 16 0 0 -16 -6 3-16cyli.dat
0 BFC INVERTNEXT
1 16 0 4 42.195 0 0 84.3904 0 16 0 -56 -16 0 48\1-16cyli.dat
add edge/chrd/tndis/tang and condlines
if the top should be straight, try con0

Jeff Jones [notmaster]

submitted a new version of the part.

2026-03-11 14:08:31

Rene Rechthaler [Blechtaler]

made the following comment.

2026-03-11 16:33:25

bottom should also use 48/1-16chrd (also there is t-junc at the curve side end of the two rings)

Rene Rechthaler [Blechtaler]

posted a vote of Hold.

2026-03-11 17:44:45

also misses the complementary condlines at the cyli borders
