Unofficial File parts/32198b.dat
Part Attributes:
File Header:

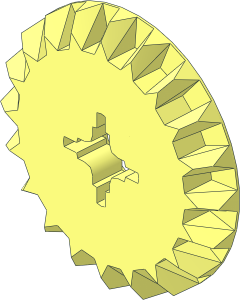

0 Technic Gear 20 Tooth Bevel
0 Name: 32198b.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2026-03-14 [jb70] Adding new axlehole based on 32198.dat by [markl]
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32198s01.dat
1 16 0 0 -3 -12 0 0 0 0 12 0 6 0 4-4cylo.dat
1 16 0 0 0 9 0 0 0 0 9 0 -1 0 4-4ering.dat
0 BFC INVERTNEXT
1 16 0 0 3 9 0 0 0 0 9 0 -3 0 4-4cyli.dat
1 16 0 0 3 9 0 0 0 0 9 0 1 0 4-4edge.dat
1 16 0 0 3 3 0 0 0 0 3 0 -1 0 4-4ring3.dat
1 16 0 0 0 1 0 0 0 0 -1 0 -7 0 axlehol6.dat
1 16 0 0 0 0 0 1 1 0 0 0 -7 0 axlehol6.dat
1 16 0 0 0 -1 0 0 0 0 1 0 -7 0 axlehol6.dat
1 16 0 0 0 0 0 -1 -1 0 0 0 -7 0 axlehol6.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32198bs01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\32198bs01.dat
1 16 0 0 0 0 -1 0 1 0 0 0 0 1 s\32198bs01.dat
1 16 0 0 0 0 -1 0 -1 0 0 0 0 1 s\32198bs01.dat
1 16 0 0 0 -1 0 0 0 -1 0 0 0 1 s\32198bs01.dat
1 16 0 0 0 1 0 0 0 -1 0 0 0 1 s\32198bs01.dat
1 16 0 0 0 0 1 0 -1 0 0 0 0 1 s\32198bs01.dat
1 16 0 0 0 0 1 0 1 0 0 0 0 1 s\32198bs01.dat
3 16 -1.582 19.869 -7 1.582 19.869 -7 0 9 -7
3 16 -15.145 12.958 -7 -12.959 15.145 -7 -4.243 4.243 -7
3 16 -19.869 -1.582 -7 -19.869 1.582 -7 -9 0 -7
3 16 -12.958 -15.145 -7 -15.145 -12.959 -7 -4.243 -4.243 -7
3 16 1.582 -19.869 -7 -1.582 -19.869 -7 0 -9 -7
3 16 15.145 -12.958 -7 12.959 -15.145 -7 4.243 -4.243 -7
3 16 19.869 1.582 -7 19.869 -1.582 -7 9 0 -7
3 16 12.958 15.145 -7 15.145 12.959 -7 4.243 4.243 -7
5 24 0 -9 0 0 -9 -7 1 -8.801 -7 -1 -8.801 -7
5 24 9 0 0 9 0 -7 8.801 1 -7 8.801 -1 -7
5 24 0 9 0 0 9 -7 -1 8.801 -7 1 8.801 -7
5 24 -9 0 0 -9 0 -7 -8.801 -1 -7 -8.801 1 -7
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2026-03-15 07:18:40
Yes, that is how we should do, but it would not be an alias. 32198 should be a Moved to 32198a.
It would be better to make a common subfile, to be used by both versions, and then only add what is different in the a and b-files.
It would be better to make a common subfile, to be used by both versions, and then only add what is different in the a and b-files.
2026-03-15 10:56:08
I dont like the addition of the ring prim without additional adapter prims inside/outside...
It should rather use a big subfile from axlehole to teeth base.
It should rather use a big subfile from axlehole to teeth base.
2026-03-15 13:26:42
Creative Commons Attribution License information
This part is copyright © Jens Brühl
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
I would suggest to create this new one as default, rename 32198.dat to 32198a.dat and create an alias of 32198.dat pointing to the new one.
How do you think?
