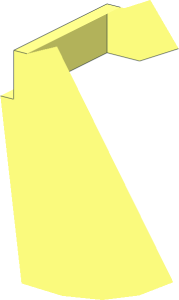

0 ~Technic Gear 20 Tooth Bevel with Four Axlehole Slots - 1/8
0 Name: s\32198bs01.dat
0 Author: Jens Brühl [jb70]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2026-03-14 [jb70] Adding new axlehole based on 32198.dat by [markl]
Show contents
2 24 1 5.801 0 2 5.602 0
2 24 1 5.801 -7 2 5.602 -7
2 24 1 5.801 0 1 8.801 0
2 24 1 5.801 -7 1 8.801 -7
2 24 1 8.801 -7 0 9 -7
2 24 1 8.801 0 3.444 8.315 0
2 24 3.444 8.315 0 6.364 6.364 0
2 24 1 5.801 0 1 5.801 -7
2 24 1 8.801 0 1 8.801 -7
4 16 1 5.801 0 1 5.801 -7 2 5.602 -7 2 5.602 0
4 16 1 8.801 -7 1 5.801 -7 1 5.801 0 1 8.801 0
3 16 1 5.801 0 2 5.602 0 1 8.801 0
4 16 2 5.602 0 2.296 5.543 0 3.444 8.315 0 1 8.801 0
4 16 2.296 5.543 0 4.243 4.243 0 6.364 6.364 0 3.444 8.315 0
2 24 3.4443 8.3151 3 6.3639 6.3639 3
2 24 3.4443 8.3151 3 0 9 3
4 16 0 9 -7 1 8.801 -7 1 8.801 0 0 9 3
4 16 1 8.801 0 3.444 8.315 0 3.4443 8.3151 3 0 9 3
4 16 3.4443 8.3151 3 3.444 8.315 0 6.364 6.364 0 6.3639 6.3639 3
5 24 3.444 8.315 0 3.444 8.315 3 0 9 3 6.364 6.364 3
1 16 0 0 3 0 0 12 12 0 0 0 -1 0 1-8chrd.dat
4 16 0 12 3 0 9 3 3.4443 8.3151 3 8.4852 8.4852 3
3 16 3.4443 8.3151 3 6.3639 6.3639 3 8.4852 8.4852 3
4 16 0 9 -7 1.582 19.869 -7 4.636 19.386 -7 1 8.801 -7
4 16 1 8.801 -7 4.636 19.386 -7 7.644 18.41 -7 1 5.801 -7
4 16 2 5.602 -7 1 5.801 -7 7.644 18.41 -7 10.399 17.005 -7
4 16 12.958 15.145 -7 4.243 4.243 -7 2.296 5.543 -7 10.399 17.005 -7
3 16 2.296 5.543 -7 2 5.602 -7 10.399 17.005 -7
Status:
Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
| User | Vote |
|---|---|
| Blechtaler | Certify |
Official parents and subparts
Part Events:
Jens Brühl [jb70]
initially submitted the part.
2026-03-15 00:24:35
Jens Brühl [jb70]
submitted a new version of the part (all votes reset).
2026-03-15 13:26:42
Rene Rechthaler [Blechtaler]
made the following comment.
2026-03-16 16:58:44
should the rear side get extended to the rear ring?
(to prevent gaps on hi-res, maybe replace the rear ring prim with an 1-8chrd and connect it with polygons?)
(to prevent gaps on hi-res, maybe replace the rear ring prim with an 1-8chrd and connect it with polygons?)
Jens Brühl [jb70]
submitted a new version of the part (all votes reset).
2026-03-16 18:36:57
Extended rear side of subfile to the rear ring to avoid gaps with high res primitives.
Rene Rechthaler [Blechtaler]
made the following comment.
2026-03-16 19:33:01
now you accidentally merged a vertex at the front which now overlaps with the axlehole tooth in the main file
aside from that, very good now!
aside from that, very good now!
Jens Brühl [jb70]
submitted a new version of the part (all votes reset).
2026-03-16 22:23:13
Fixed overlapping
Rene Rechthaler [Blechtaler]
posted a vote of Certify
2026-06-04 08:18:12
Magnus Forsberg [MagFors]
edited the part header.
2026-07-11 11:21:38
Header Edits
description:
~Technic Gear 20 Tooth Bevel - 1/8
to
~Technic Gear 20 Tooth Bevel with Four Axlehole Slots - 1/8
Creative Commons Attribution License information
This part is copyright ©
Jens Brühl
Licensed under
CC BY 4.0
I would suggest to create this new one as default, rename 32198.dat to 32198a.dat and create an alias of 32198.dat pointing to the new one.
