File Detail parts/32198a.dat

Unofficial File parts/32198a.dat

Part Attributes:

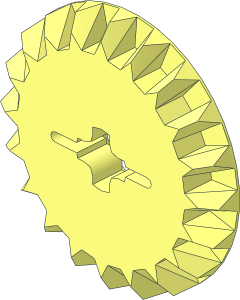

Technic Gear 20 Tooth Bevel with Two Axlehole Slots

File Header:

0 Technic Gear 20 Tooth Bevel with Two Axlehole Slots
0 Name: 32198a.dat
0 Author: Marc Klein [marckl]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2000-09-30 [PTadmin] Official Update 2000-02
0 !HISTORY 2007-06-25 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2017-07-16 [MagFors] bfc'd, used tooth primitive
0 !HISTORY 2018-12-08 [PTadmin] Official Update 2018-02
0 !HISTORY 2018-12-08 [jb70] Moved from 32198.dat and using common subfile

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\32198s01.dat

1 16 0 0 -3 -11.08655 0 4.5922 4.5922 0 11.08655 0 6 0 3-8cylo.dat
1 16 0 0 -3 11.08655 0 -4.5922 -4.5922 0 -11.08655 0 6 0 3-8cylo.dat
0 BFC INVERTNEXT
1 16 0 0 3 -8.31492 0 3.44415 -3.44415 0 -8.31492 0 -3 0 3-8cylo.dat
0 BFC INVERTNEXT
1 16 0 0 3 8.31492 0 -3.44415 3.44415 0 8.31492 0 -3 0 3-8cylo.dat
1 16 -12 0 3 0 0 -3 -3 0 0 0 -6 0 2-4cylc.dat
1 16 12 0 3 0 0 3 3 0 0 0 -6 0 2-4cylc.dat
0 BFC INVERTNEXT
1 16 11 0 3 0 0 1 -1 0 0 0 -10 0 8\2-4cylo.dat
0 BFC INVERTNEXT
1 16 -11 0 3 0 0 -1 1 0 0 0 -10 0 8\2-4cylo.dat
1 16 -11 0 3 0 0 -1 -1 0 0 0 -1 0 8\2-4ndis.dat
1 16 11 0 3 0 0 1 1 0 0 0 -1 0 8\2-4ndis.dat
1 16 0 0 0 0 0 -1 -1 0 0 0 -7 0 axlehol5.dat
1 16 0 0 0 2.77164 0 -1.14805 1.14805 0 2.77164 0 -1 0 3-8ring2.dat
1 16 0 0 0 -2.77164 0 1.14805 -1.14805 0 -2.77164 0 -1 0 3-8ring2.dat
1 16 0 0 3 2.77164 0 -1.14805 1.14805 0 2.77164 0 -1 0 3-8ring3.dat
1 16 0 0 3 -2.77164 0 1.14805 -1.14805 0 -2.77164 0 -1 0 3-8ring3.dat
2 24 -11 1 3 -8.944 1 3
2 24 -5.801 1 -7 -11 1 -7
2 24 -8.944 1 0 -5.801 1 0
4 16 -8.944 1 3 -11 1 3 -11 1 -7 -8.944 1 0
4 16 -8.944 1 0 -11 1 -7 -5.801 1 -7 -5.801 1 0
2 24 -11 -1 -7 -5.801 -1 -7
2 24 -5.801 -1 0 -8.944 -1 0
2 24 -8.944 -1 3 -11 -1 3
4 16 -5.801 -1 0 -5.801 -1 -7 -11 -1 -7 -8.944 -1 0
4 16 -8.944 -1 0 -11 -1 -7 -11 -1 3 -8.944 -1 3
2 24 11 -1 3 8.944 -1 3
2 24 5.801 -1 -7 11 -1 -7
2 24 8.944 -1 0 5.801 -1 0
4 16 8.944 -1 3 11 -1 3 11 -1 -7 8.944 -1 0
4 16 8.944 -1 0 11 -1 -7 5.801 -1 -7 5.801 -1 0
2 24 11 1 -7 5.801 1 -7
2 24 5.801 1 0 8.944 1 0
2 24 8.944 1 3 11 1 3
4 16 5.801 1 0 5.801 1 -7 11 1 -7 8.944 1 0
4 16 8.944 1 0 11 1 -7 11 1 3 8.944 1 3

4 16 -8.944 1 3 -8.315 3.444 3 -11.087 4.592 3 -11.63 3 3
4 16 -12 1 3 -8.944 1 3 -11.63 3 3 -12 3 3
4 16 -11.086 -4.592 3 -8.315 -3.444 3 -8.944 -1 3 -11.63 -3 3
4 16 -11.63 -3 3 -8.944 -1 3 -12 -1 3 -12 -3 3
4 16 11.086 4.592 3 8.315 3.444 3 8.944 1 3 11.63 3 3
4 16 12 1 3 12 3 3 11.63 3 3 8.944 1 3
4 16 8.315 -3.444 3 11.086 -4.592 3 11.63 -3 3 8.944 -1 3
4 16 12 -3 3 12 -1 3 8.944 -1 3 11.63 -3 3

4 16 8.315 3.444 0 5.543 2.296 0 5.801 1 0 8.944 1 0
4 16 -5.801 1 0 -5.543 2.296 0 -8.315 3.444 0 -8.944 1 0
4 16 -8.315 -3.444 0 -5.543 -2.296 0 -5.801 -1 0 -8.944 -1 0
4 16 5.543 -2.296 0 8.315 -3.444 0 8.944 -1 0 5.801 -1 0

1 16 -11.815 -3 0 0 0 .185 0 1 0 -3 0 0 rect3.dat
1 16 -11.815 3 0 0 0 .185 0 -1 0 3 0 0 rect3.dat
1 16 11.815 3 0 0 0 -.185 0 -1 0 -3 0 0 rect3.dat
1 16 11.815 -3 0 0 0 -.185 0 1 0 3 0 0 rect3.dat

1 16 5.702 1.5 -3.5 0 0 .09955 0 1 -.5 -3.5 0 0 rect.dat
1 16 5.702 -1.5 -3.5 -.09955 0 0 -.5 -1 0 0 0 3.5 rect.dat
1 16 -5.702 -1.5 -3.5 -.09955 0 0 .5 -1 0 0 0 3.5 rect.dat
1 16 -5.702 1.5 -3.5 0 0 .09955 0 1 .5 -3.5 0 0 rect.dat

1 16 8.63 -2.222 1.5 0 0 .3145 0 -1 1.222 1.5 0 0 rect3.dat
1 16 8.63 2.222 1.5 0 0 .3145 0 1 -1.222 -1.5 0 0 rect3.dat
1 16 -8.63 2.222 1.5 0 0 -.3145 0 1 -1.222 1.5 0 0 rect3.dat
1 16 -8.63 -2.222 1.5 0 0 -.3145 0 -1 1.222 -1.5 0 0 rect3.dat
5 24 -8.315 3.444 3 -8.315 3.444 0 -6.364 6.364 0 -8.944 1 0
5 24 -8.315 -3.444 3 -8.315 -3.444 0 -8.944 -1 0 -6.364 -6.364 0
5 24 8.315 -3.444 3 8.315 -3.444 0 6.364 -6.364 0 8.944 -1 0
5 24 8.315 3.444 3 8.315 3.444 0 8.944 1 0 6.364 6.364 0

1 16 -11.358 -3.796 0 -.2718 0 0 .7961 1 0 0 0 -3 rect2p.dat
1 16 -11.358 3.796 0 -.2718 0 0 -.7961 -1 0 0 0 3 rect2p.dat
1 16 11.358 3.796 0 .2718 0 0 -.7961 -1 0 0 0 -3 rect2p.dat
1 16 11.358 -3.796 0 .2718 0 0 .7961 1 0 0 0 3 rect2p.dat
5 24 11.087 4.592 3 11.086 4.592 -3 8.485 8.485 -3 11.63 3 3
5 24 -11.087 4.592 -3 -11.087 4.592 3 -8.485 8.485 3 -11.63 3 -3
5 24 -11.086 -4.592 3 -11.086 -4.592 -3 -8.485 -8.485 -3 -11.63 -3 3
5 24 11.087 -4.592 -3 11.087 -4.592 3 8.485 -8.485 3 11.63 -3 -3

1 16 -11 0 -7 0 0 -1 -1 0 0 0 1 0 8\2-4ndis.dat
1 16 11 0 -7 0 0 1 1 0 0 0 1 0 8\2-4ndis.dat

4 16 1.582 -19.87 -7 0 -6 -7 2 -5.602 -7 4.636 -19.386 -7
4 16 4.636 -19.386 -7 2 -5.602 -7 2.296 -5.543 -7 7.644 -18.408 -7
4 16 4.243 -4.243 -7 10.399 -17.005 -7 7.644 -18.408 -7 2.296 -5.543 -7
4 16 12.959 -15.145 -7 10.399 -17.005 -7 4.243 -4.243 -7 5.543 -2.296 -7
4 16 12.959 -15.145 -7 5.543 -2.296 -7 5.602 -2 -7 15.145 -12.959 -7
4 16 17.005 -10.399 -7 15.145 -12.959 -7 5.602 -2 -7 5.801 -1 -7
4 16 11 -1 -7 18.408 -7.644 -7 17.005 -10.399 -7 5.801 -1 -7
4 16 12 -1 -7 19.386 -4.636 -7 18.408 -7.644 -7 11 -1 -7
4 16 12 0 -7 19.869 -1.582 -7 19.386 -4.636 -7 12 -1 -7
4 16 2 5.602 -7 0 6 -7 1.582 19.87 -7 4.636 19.386 -7
4 16 2.296 5.543 -7 2 5.602 -7 4.636 19.386 -7 7.644 18.408 -7
4 16 7.644 18.408 -7 10.399 17.005 -7 4.243 4.243 -7 2.296 5.543 -7
4 16 4.243 4.243 -7 10.399 17.005 -7 12.959 15.145 -7 5.543 2.296 -7
4 16 5.602 2 -7 5.543 2.296 -7 12.959 15.145 -7 15.145 12.959 -7
4 16 5.602 2 -7 15.145 12.959 -7 17.005 10.399 -7 5.801 1 -7
4 16 17.005 10.399 -7 18.408 7.644 -7 11 1 -7 5.801 1 -7
4 16 18.408 7.644 -7 19.386 4.636 -7 12 1 -7 11 1 -7
4 16 19.386 4.636 -7 19.869 1.582 -7 12 0 -7 12 1 -7
4 16 -2 -5.602 -7 0 -6 -7 -1.582 -19.87 -7 -4.636 -19.386 -7
4 16 -2.296 -5.543 -7 -2 -5.602 -7 -4.636 -19.386 -7 -7.644 -18.408 -7
4 16 -7.644 -18.408 -7 -10.399 -17.005 -7 -4.243 -4.243 -7 -2.296 -5.543 -7
4 16 -4.243 -4.243 -7 -10.399 -17.005 -7 -12.959 -15.145 -7 -5.543 -2.296 -7
4 16 -5.602 -2 -7 -5.543 -2.296 -7 -12.959 -15.145 -7 -15.145 -12.959 -7
4 16 -5.602 -2 -7 -15.145 -12.959 -7 -17.005 -10.399 -7 -5.801 -1 -7
4 16 -17.005 -10.399 -7 -18.408 -7.644 -7 -11 -1 -7 -5.801 -1 -7
4 16 -18.408 -7.644 -7 -19.386 -4.636 -7 -12 -1 -7 -11 -1 -7
4 16 -19.386 -4.636 -7 -19.869 -1.582 -7 -12 0 -7 -12 -1 -7
4 16 -1.582 19.87 -7 0 6 -7 -2 5.602 -7 -4.636 19.386 -7
4 16 -4.636 19.386 -7 -2 5.602 -7 -2.296 5.543 -7 -7.644 18.408 -7
4 16 -4.243 4.243 -7 -10.399 17.005 -7 -7.644 18.408 -7 -2.296 5.543 -7
4 16 -12.959 15.145 -7 -10.399 17.005 -7 -4.243 4.243 -7 -5.543 2.296 -7
4 16 -12.959 15.145 -7 -5.543 2.296 -7 -5.602 2 -7 -15.145 12.959 -7
4 16 -17.005 10.399 -7 -15.145 12.959 -7 -5.602 2 -7 -5.801 1 -7
4 16 -11 1 -7 -18.408 7.644 -7 -17.005 10.399 -7 -5.801 1 -7
4 16 -12 1 -7 -19.386 4.636 -7 -18.408 7.644 -7 -11 1 -7
4 16 -12 0 -7 -19.869 1.582 -7 -19.386 4.636 -7 -12 1 -7
3 16 1.582 -19.87 -7 -1.582 -19.869 -7 0 -6 -7
3 16 19.869 -1.582 -7 12 0 -7 19.869 1.582 -7
3 16 -1.582 19.869 -7 1.582 19.87 -7 0 6 -7
3 16 -12 0 -7 -19.869 -1.582 -7 -19.869 1.582 -7

Status:

Needs 2 More Votes (N)

This part has the following warnings

Decimal precision exceeds library recommendation

Line 18: 1 16 0 0 -3 -11.08655 0 4.5922 4.5922 0 11.08655 0 6 0 3-8cylo.dat

Line 19: 1 16 0 0 -3 11.08655 0 -4.5922 -4.5922 0 -11.08655 0 6 0 3-8cylo.dat

Line 21: 1 16 0 0 3 -8.31492 0 3.44415 -3.44415 0 -8.31492 0 -3 0 3-8cylo.dat

Line 23: 1 16 0 0 3 8.31492 0 -3.44415 3.44415 0 8.31492 0 -3 0 3-8cylo.dat

Line 33: 1 16 0 0 0 2.77164 0 -1.14805 1.14805 0 2.77164 0 -1 0 3-8ring2.dat

Line 34: 1 16 0 0 0 -2.77164 0 1.14805 -1.14805 0 -2.77164 0 -1 0 3-8ring2.dat

Line 35: 1 16 0 0 3 2.77164 0 -1.14805 1.14805 0 2.77164 0 -1 0 3-8ring3.dat

Line 36: 1 16 0 0 3 -2.77164 0 1.14805 -1.14805 0 -2.77164 0 -1 0 3-8ring3.dat

Line 77: 1 16 5.702 1.5 -3.5 0 0 .09955 0 1 -.5 -3.5 0 0 rect.dat

Line 78: 1 16 5.702 -1.5 -3.5 -.09955 0 0 -.5 -1 0 0 0 3.5 rect.dat

Line 79: 1 16 -5.702 -1.5 -3.5 -.09955 0 0 .5 -1 0 0 0 3.5 rect.dat

Line 80: 1 16 -5.702 1.5 -3.5 0 0 .09955 0 1 .5 -3.5 0 0 rect.dat

This part has the following automated holds from the Parts Tracker

Has uncertified subfiles

parts/s/32198s01.dat (Needs 2 More Votes)

Current Votes:

None

Official parents and subparts

Part Events:

Jens Brühl [jb70]

initially submitted the part.

2026-03-15 13:26:42

Rene Rechthaler [Blechtaler]

made the following comment.

2026-03-15 15:23:43

should this also get a quarter subfile?
(with the 3-8 prims at the back split into unrotated 3-16)

Rene Rechthaler [Blechtaler]

edited the part header.

2026-03-15 15:31:58

Header Edits

description:
Technic Gear 20 Tooth Bevel with two axlehole slots
to
Technic Gear 20 Tooth Bevel with Two Axlehole Slots

Comment:
capitalized
