Unofficial File parts/30346bc01.dat
Warning: Model breaking changes to unofficial parts may occur anytime prior to release

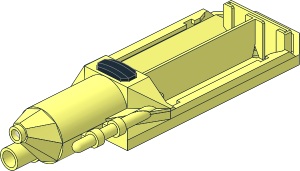

0 ~Electric Light & Sound Brick 4 x 12 x 2 Laser Drill - Body without Battery Cover
0 Name: 30346bc01.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY ElectricShow file code:
0 // Plastic Parts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 30346b.dat
1 0 0 0 0 1 0 0 0 1 0 0 0 1 30406b.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 30347.dat
0 // Electronics
0 // ToDo
0 // Screws
0 // Todo
0 // TEMP LED Dummy
1 47 0 10 -110 4.125 0 0 0 0 4.125 0 -1 0 4-4disc.dat
1 47 0 10 -110 4.125 0 0 0 0 4.125 0 -1.25 0 4-4cylo.dat
1 47 0 10 -111.25 .375 0 0 0 0 .375 0 1 0 4-4ring10.dat
1 47 0 10 -111.25 3.75 0 0 0 0 3.75 0 -7.5 0 4-4cyli.dat
1 47 0 10 -111.25 3.75 0 0 0 0 3.75 0 1 0 4-4edge.dat
1 47 0 10 -118.75 3.75 0 0 0 0 3.75 0 -3.75 0 4-8sphe.datStatus
Errors Found (HN)
Current Votes:
Chris Böhnke [KnightOfTarenta]
This part has the following automated holds from the Parts Tracker
Part Dependencies
Official parents and subparts
Part Events
Chris Böhnke [KnightOfTarenta]
initially submitted the part.
2026-03-16 21:37:27
Chris Böhnke [KnightOfTarenta]
posted a vote of Hold
2026-03-16 21:39:17
Magnus Forsberg [MagFors]
made the following comment.
2026-03-17 18:03:21
Why use a u-number? Think this could be 30346bc01.
Chris Böhnke [KnightOfTarenta]
made the following comment.
2026-03-17 20:12:50
Based on this: https://library.ldraw.org/parts/15919
But thinking twice, the Insectoid one doesn't seem to have a known ID at all...
But thinking twice, the Insectoid one doesn't seem to have a known ID at all...
Chris Böhnke [KnightOfTarenta]
made the following comment.
2026-03-17 21:49:30
Ok, guess it really should be 30346bc01.
Can someone rename it please?
Can/should I reuse u9668 for the electronics?
Can someone rename it please?
Can/should I reuse u9668 for the electronics?
Jeff Jones [notmaster]
made the following comment.
2026-03-17 21:50:55
yes
Magnus Forsberg [MagFors]
renamed the part.
2026-03-17 22:00:20
"parts/u9668.dat" to "parts/30346bc01.dat"
I want to add proper electronics instead of the Dummy (also missing the screws). Still uploaded, since it can technically be used already.
