Unofficial File parts/s/30348bs01.dat
File Header:

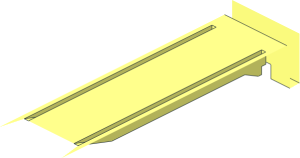

0 ~Electric Light & Sound Brick 4 x 12 x 2 Laser Drill - Battery Cover Type 1 Lock
0 Name: s\30348bs01.dat
0 Author: Chris Böhnke [KnightOfTarenta]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 14.75 12 100.5 1.25 0 0 0 2 0 0 0 1 box2-5.dat
1 16 14.75 7 102.75 1.25 0 0 0 3 0 0 0 1.25 box2-7.dat
1 16 -14.75 12 100.5 1.25 0 0 0 2 0 0 0 1 box2-5.dat
1 16 -14.75 7 102.75 1.25 0 0 0 3 0 0 0 1.25 box2-7.dat
1 16 0 4 48.25 0 0 -13.5 0 -1 0 -55.75 0 0 rect2p.dat
0 BFC INVERTNEXT
1 16 0 24 117 0 0 9 0 -7 0 3 0 0 box3u2p.dat
3 16 13.5 4 104 18.5 4 114 16 4 104
3 16 -16 4 104 -18.5 4 114 -13.5 4 104
3 16 16 10 91.5 16 10 101.5 16 4 104
3 16 16 10 101.5 16 10 104 16 4 104
3 16 13.5 10 104 13.5 10 101.5 13.5 4 104
3 16 13.5 4 104 13.5 10 101.5 13.5 10 91.5
3 16 -13.5 10 91.5 -13.5 10 101.5 -13.5 4 104
3 16 -13.5 10 101.5 -13.5 10 104 -13.5 4 104
3 16 -16 10 104 -16 10 101.5 -16 4 104
3 16 -16 4 104 -16 10 101.5 -16 10 91.5
3 16 -9 17 114 -18.5 4 114 -20.343 5.475 114
3 16 18.5 4 114 9 17 114 20.343 5.475 114
4 16 18.5 4 -20 16 4 -7.5 16 4 104 18.5 4 114
4 16 -13.5 4 104 -18.5 4 114 18.5 4 114 13.5 4 104
4 16 -16 4 104 -16 4 -7.5 -18.5 4 -20 -18.5 4 114
4 16 16 10 91.5 16 4 104 16 4 -7.5 16 10 12.5
4 16 13.5 4 -7.5 13.5 4 104 13.5 10 91.5 13.5 10 12.5
4 16 13.5 4 -7.5 13.5 10 12.5 16 10 12.5 16 4 -7.5
4 16 -13.5 4 -7.5 -13.5 10 12.5 -13.5 10 91.5 -13.5 4 104
4 16 -16 10 91.5 -16 10 12.5 -16 4 -7.5 -16 4 104
4 16 -16 4 -7.5 -16 10 12.5 -13.5 10 12.5 -13.5 4 -7.5
4 16 13.5 10 12.5 13.5 10 91.5 16 10 91.5 16 10 12.5
4 16 16 10 91.5 16 14 99.5 16 14 101.5 16 10 101.5
4 16 13.5 14 101.5 13.5 14 99.5 13.5 10 91.5 13.5 10 101.5
4 16 -16 10 12.5 -16 10 91.5 -13.5 10 91.5 -13.5 10 12.5
4 16 -13.5 10 91.5 -13.5 14 99.5 -13.5 14 101.5 -13.5 10 101.5
4 16 -16 14 101.5 -16 14 99.5 -16 10 91.5 -16 10 101.5
4 16 16 10 91.5 13.5 10 91.5 13.5 14 99.5 16 14 99.5
4 16 -13.5 10 91.5 -16 10 91.5 -16 14 99.5 -13.5 14 99.5
4 16 -20 24 120 -9 24 120 -9 24 114 -20.343 24 114
4 16 -20.343 5.475 114 -20.343 24 114 -9 24 114 -9 17 114
4 16 -9 17 114 9 17 114 18.5 4 114 -18.5 4 114
4 16 9 24 114 20.343 24 114 20.343 5.475 114 9 17 114
4 16 -9 24 120 -20 24 120 -20 0 120 -9 17 120
4 16 20 0 120 9 17 120 -9 17 120 -20 0 120
4 16 9 24 120 9 17 120 20 0 120 20 24 120
4 16 20 24 120 20.343 24 114 9 24 114 9 24 120
0 // Edge Lines
2 24 13.5 10 91.5 16 10 91.5
2 24 16 10 91.5 16 14 99.5
2 24 -13.5 4 -7.5 -13.5 10 12.5
2 24 9 24 114 20.343 24 114
2 24 -9 24 114 -20.343 24 114
2 24 13.5 10 12.5 13.5 4 -7.5
2 24 16 4 -7.5 16 10 12.5
2 24 18.5 4 114 -18.5 4 114
2 24 20 24 120 9 24 120
2 24 16 4 -7.5 16 4 104
2 24 13.5 14 99.5 13.5 10 91.5
2 24 -13.5 10 91.5 -13.5 14 99.5
2 24 -16 14 99.5 -16 10 91.5
2 24 -16 10 12.5 -16 4 -7.5
2 24 -20 24 120 -9 24 120
2 24 -16 4 104 -16 4 -7.5
2 24 -16 10 91.5 -13.5 10 91.5
2 24 16 4 -7.5 13.5 4 -7.5
2 24 -13.5 4 -7.5 -16 4 -7.5
2 24 -13.5 10 91.5 -13.5 10 12.5
2 24 -16 10 12.5 -16 10 91.5
2 24 16 10 12.5 16 10 91.5
2 24 13.5 10 91.5 13.5 10 12.5
2 24 -16 4 104 -13.5 4 104
2 24 13.5 4 104 16 4 104
5 24 -13.5 10 12.5 -16 10 12.5 -16 10 91.5 -13.5 4 -7.5
5 24 13.5 10 12.5 16 10 12.5 13.5 10 91.5 16 4 -7.5
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
Current Votes:
None
Official parents and subparts
Part Events:
2026-03-16 22:49:20
Creative Commons Attribution License information
This part is copyright © Chris Böhnke
Licensed under CC BY 4.0
