File Detail parts/u9664.dat

Unofficial File parts/u9664.dat

Part Attributes:

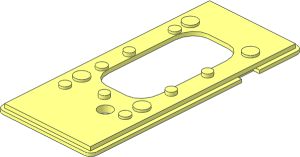

~Electric Light and Sound Brick 2 x 4 x 1.667 SMART Play Diffusing Plate

File Header:

0 ~Electric Light and Sound Brick  2 x  4  x  1.667 SMART Play Diffusing Plate
0 Name: u9664.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2025-01-31 {LEGO Instructions App} Original part shape
0 !HISTORY 2025-01-31 [Philo] File preparation for LDraw Parts Tracker
