Unofficial File parts/3298p90.dat
View official version of part
Part Attributes: Base Part: 3298.dat
External Sites:
External site data provided by Rebrickable.com View on Rebrickable View on BrickLink View on BrickOwl

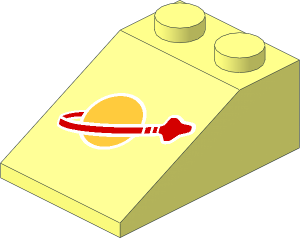

Slope Brick 33 3 x 2 with Classic Space Logo Pattern
File Header:
0 Slope Brick 33 3 x 2 with Classic Space Logo Pattern 0 Name: 3298p90.dat 0 Author: Chris Dee [cwdee] 0 !LDRAW_ORG Unofficial_Part 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !KEYWORDS Brickowl 452641, Rebrickable 3298pr0039, Set 5171 0 !HISTORY 2000-05-07 [PTadmin] Official Update 2000-01 0 !HISTORY 2002-08-19 [Holly-Wood] refined pattern 0 !HISTORY 2002-12-31 [Holly-Wood] fixed overlap 0 !HISTORY 2003-07-06 [Steffen] BFCed, made use of subfile s\3298s01.dat 0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02 0 !HISTORY 2007-06-25 [PTadmin] Header formatted for Contributor Agreement 0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01 0 !HISTORY 2013-08-10 [Steffen] replaced gold color by 82 0 !HISTORY 2013-12-07 [MagFors] improved subfile position 0 !HISTORY 2014-06-21 [PTadmin] Official Update 2014-01 0 !HISTORY 2026-03-30 [jb70] Using Logo Primitives
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3298s01.dat 1 16 1 9.733 -29.469 .31 0 0 0 0 -.13866 0 1 .27739 logo-classic-space-box.dat 1 4 1 9.733 -29.469 .31 0 0 0 0 -.13866 0 1 .27739 logo-classic-space-spaceship.dat 1 15 1 9.733 -29.469 .31 0 0 0 0 -.13866 0 1 .27739 logo-classic-space-border.dat 4 16 -20 0 -10 -16.205 5.78119 -21.56339 11.106 5.78119 -21.56339 20 0 -10 3 16 11.106 5.78119 -21.56339 11.633 5.78119 -21.56339 20 0 -10 3 16 20 0 -10 11.633 5.78119 -21.56339 18.205 5.78119 -21.56339 3 16 20 0 -10 18.205 5.78119 -21.56339 18.205 6.73933 -23.48015 4 16 20 0 -10 18.205 6.73933 -23.48015 18.205 13.68481 -37.37462 20 20 -50 4 16 -2.72 13.68481 -37.37462 -20 20 -50 20 20 -50 5.805 13.68481 -37.37462 3 16 18.205 13.68481 -37.37462 5.805 13.68481 -37.37462 20 20 -50 3 16 -2.72 13.68481 -37.37462 -11.245 13.68481 -37.37462 -20 20 -50 3 16 -20 20 -50 -11.245 13.68481 -37.37462 -16.205 13.68481 -37.37462 3 16 -16.205 13.68481 -37.37462 -16.205 11.8961 -33.79628 -20 20 -50 4 16 -20 20 -50 -16.205 11.8961 -33.79628 -16.205 5.78119 -21.56339 -20 0 -10 1 82 1 9.733 -29.469 .31 0 0 0 0 -.13866 0 1 .27739 logo-classic-space-planet.dat
Status:
Not releaseable Needs 2 More Votes (F) Needs 2 More Votes (F)
This part has the following warnings
  • Decimal precision exceeds library recommendation
    Line 24: 1 16 1 9.733 -29.469 .31 0 0 0 0 -.13866 0 1 .27739 logo-classic-space-box.dat
    Line 25: 1 4 1 9.733 -29.469 .31 0 0 0 0 -.13866 0 1 .27739 logo-classic-space-spaceship.dat
    Line 26: 1 15 1 9.733 -29.469 .31 0 0 0 0 -.13866 0 1 .27739 logo-classic-space-border.dat
    Line 27: 4 16 -20 0 -10 -16.205 5.78119 -21.56339 11.106 5.78119 -21.56339 20 0 -10
    Line 28: 3 16 11.106 5.78119 -21.56339 11.633 5.78119 -21.56339 20 0 -10
    Line 29: 3 16 20 0 -10 11.633 5.78119 -21.56339 18.205 5.78119 -21.56339
    Line 30: 3 16 20 0 -10 18.205 5.78119 -21.56339 18.205 6.73933 -23.48015
    Line 31: 4 16 20 0 -10 18.205 6.73933 -23.48015 18.205 13.68481 -37.37462 20 20 -50
    Line 32: 4 16 -2.72 13.68481 -37.37462 -20 20 -50 20 20 -50 5.805 13.68481 -37.37462
    Line 33: 3 16 18.205 13.68481 -37.37462 5.805 13.68481 -37.37462 20 20 -50
    Line 34: 3 16 -2.72 13.68481 -37.37462 -11.245 13.68481 -37.37462 -20 20 -50
    Line 35: 3 16 -20 20 -50 -11.245 13.68481 -37.37462 -16.205 13.68481 -37.37462
    Line 36: 3 16 -16.205 13.68481 -37.37462 -16.205 11.8961 -33.79628 -20 20 -50
    Line 37: 4 16 -20 20 -50 -16.205 11.8961 -33.79628 -16.205 5.78119 -21.56339 -20 0 -10
    Line 38: 1 82 1 9.733 -29.469 .31 0 0 0 0 -.13866 0 1 .27739 logo-classic-space-planet.dat
Current Votes:

None

Official parents and subparts
Part Events:
Archived Part Events:
Jens Brühl [jb70]
Part Author
initially submitted the part.
2026-03-30 18:45:54
Jens Brühl [jb70]
Part Author
submitted a new version of the part.
2026-04-15 20:37:22
Adapted vertices to updated logo primitives.
Takeshi Takahashi [RainbowDolphin]
Senior Part Reviewer
posted a vote of Certify.
2026-05-07 13:46:03
Chris Böhnke [KnightOfTarenta]
Part Header Editor
posted a vote of Hold.
2026-05-07 14:34:00
Still some tiny gaps above the logo. Unificator used?
Chris Böhnke [KnightOfTarenta]
Part Header Editor
made the following comment.
2026-05-07 14:35:54
Should the borderless version (on white base part) be made too?
Jens Brühl [jb70]
Part Author
submitted a new version of the part.
2026-05-13 19:06:34
Extended to 5 decimals to match logo primitive vertices.
