Unofficial File parts/8097.dat
Part Attributes:
File Header:

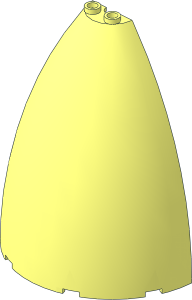

0 Panel Cone 4 x 8 x 8 Elliptic Parabolic
0 Name: 8097.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Brickowl 1608986
0 !HISTORY 2026-04-01 {LEGO Instructions App} Original part shape
0 !HISTORY 2026-04-01 [Philo] File preparation for LDraw Parts Tracker
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\8097s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\8097s01.dat
2 24 13 188 -76 -13 188 -76
2 24 -13 192 -76 13 192 -76
4 16 -13 188 -76 13 188 -76 13 192 -76 -13 192 -76
3 16 13 192 -76 0 192 -80 -13 192 -76
1 16 0 189.9 -63.212 1.5 0 0 0 0 1.9 0 -.788 0 box4-2p.dat
3 16 0 188 -63.3 13 188 -76 -13 188 -76
1 16 0 188 -70 1 0 0 0 -1 0 0 0 1 stud3.dat
5 24 0 188 -80 0 171.32 -79.6 -10.39 171.32 -78.92 10.39 171.32 -78.92
5 24 0 188 -63.3 0 192 -63.3 -8.5 192 -62.8 8.5 192 -62.8
5 24 0 43 -41.4 0 62.7 -50.6 13.1 62.7 -48.87 -13.1 62.7 -48.87
5 24 0 3 -17.4 0 23.9 -30.9 -8.01 23.9 -29.84 8.01 23.9 -29.84
5 24 0 104.88 -69.27 0 83.48 -62.85 -12.24 83.48 -61.51 12.24 83.48 -61.51
5 24 0 83.48 -62.85 0 62.71 -54.96 -12.24 83.48 -61.51 12.24 83.48 -61.51
5 24 0 148.8 -73.7 0 171.3 -75.6 -14.72 171.3 -73.99 14.72 171.3 -73.99
5 24 0 127 -70.2 0 148.8 -73.7 14.35 148.8 -72.13 -14.35 148.8 -72.13
5 24 0 104.9 -65.2 0 127 -70.2 13.66 127 -68.7 -13.66 127 -68.7
5 24 0 126.99 -74.33 0 104.88 -69.27 13.48 104.88 -67.79 -13.48 104.88 -67.79
5 24 0 148.78 -77.72 0 126.99 -74.33 14.47 126.99 -72.74 -14.47 126.99 -72.74
5 24 0 23.85 -35.48 0 0 -20 -9.19 23.85 -34.27 9.19 23.85 -34.27
5 24 0 171.32 -79.6 0 148.78 -77.72 -10.39 171.32 -78.92 10.39 171.32 -78.92
5 24 0 23.9 -30.9 0 43 -41.4 -10.72 43 -39.98 10.72 43 -39.98
5 24 0 83.5 -58.6 0 104.9 -65.2 -12.69 104.9 -63.81 12.69 104.9 -63.81
5 24 0 62.7 -50.6 0 83.5 -58.6 -11.41 83.5 -57.35 11.41 83.5 -57.35
5 24 0 171.3 -75.6 0 184 -76 -9.918 184 -75.3464 9.918 184 -75.3464
5 24 0 43 -45.9 0 23.85 -35.48 -9.19 23.85 -34.27 9.19 23.85 -34.27
5 24 0 192 -80 0 188 -80 10.44 188 -79.31 -10.44 188 -79.31
5 24 0 62.71 -54.96 0 43 -45.9 -11.89 43 -44.33 11.89 43 -44.33
Status:
Needs 2 More Votes (N)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
Official parents and subparts
Part Events:
2026-04-08 12:12:11
