Unofficial File parts/973p90.dat
Part Attributes:
Base Part: 973.dat
File Header:

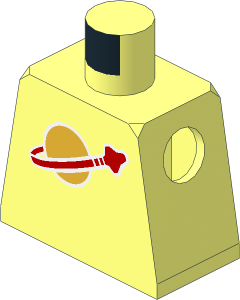

0 Minifig Torso with Classic Space Pattern
0 Name: 973p90.dat
0 Author: Chris Dee [cwdee]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Brickowl 544543, Set 6970
0 !HISTORY 2000-05-07 [PTadmin] Official Update 2000-01
0 !HISTORY 2000-11-05 [cwdee] Moved neck mark from s\973s01.dat
0 !HISTORY 2001-10-26 [PTadmin] Official Update 2001-01
0 !HISTORY 2002-07-15 [Holly-Wood] refined pattern
0 !HISTORY 2002-08-18 [PTadmin] Official Update 2002-04
0 !HISTORY 2007-07-29 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2013-08-07 [Steffen] BFCed, inlined subpart, changed gold color to 82
0 !HISTORY 2013-11-30 [MagFors] Removed T-junctions
0 !HISTORY 2014-06-21 [PTadmin] Official Update 2014-01
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
0 !HISTORY 2026-04-10 [jb70] Using Logo Primitive
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\973s01.dat
0 // Neck Mark
1 0 0 -4 0 4.243 0 -4.243 0 -8 0 -4.243 0 -4.243 1-4cyli.dat
0 // Plain Back
4 16 -19 29 10 19 29 10 19 32 10 -19 32 10
4 16 -14.345 2 10 14.345 2 10 19 29 10 -19 29 10
4 16 14.345 2 10 -14.345 2 10 -12 0 10 12 0 10
0 // Main Color
1 16 0 12 -10 .22 0 0 0 0 -.22 0 1 0 logo-classic-space-box.dat
1 15 0 12 -10 .22 0 0 0 0 -.22 0 1 0 logo-classic-space-border.dat
1 82 0 12 -10 .22 0 0 0 0 -.22 0 1 0 logo-classic-space-planet.dat
1 4 0 12 -10 .22 0 0 0 0 -.22 0 1 0 logo-classic-space-spaceship.dat
4 16 14.345 2 -10 12 0 -10 -12 0 -10 -14.345 2 -10
4 16 -19 32 -10 19 32 -10 19 29 -10 -19 29 -10
4 16 14.345 2 -10 -14.345 2 -10 -12.21 5.73 -10 7.172 5.73 -10
3 16 14.345 2 -10 7.172 5.73 -10 7.546 5.73 -10
3 16 14.345 2 -10 7.546 5.73 -10 12.21 5.73 -10
3 16 14.345 2 -10 12.21 5.73 -10 12.21 7.2502 -10
4 16 14.345 2 -10 12.21 7.2502 -10 12.21 18.27 -10 19 29 -10
3 16 12.21 18.27 -10 3.41 18.27 -10 19 29 -10
4 16 19 29 -10 3.41 18.27 -10 -2.64 18.27 -10 -19 29 -10
3 16 -2.64 18.27 -10 -8.69 18.27 -10 -19 29 -10
3 16 -19 29 -10 -8.69 18.27 -10 -12.21 18.27 -10
3 16 -19 29 -10 -12.21 18.27 -10 -12.21 15.432 -10
4 16 -12.21 15.432 -10 -12.21 5.73 -10 -14.345 2 -10 -19 29 -10
Status:
Needs 1 More Vote (CF)
This part has the following warnings
- Ensure correct Minifig category
Current Votes:
| User | Vote |
|---|---|
| KnightOfTarenta | Certify |
Official parents and subparts
Part Events:
Archived Part Events:
2026-04-10 17:20:15
2026-04-10 18:31:47
I used this scan of the 6x6 panel for creating the geometry with LD Pattern Creator. I kept the rotation angle from this part and centered it to the middle point of the surrounding logo box. For all other parts that I mapped to use the primitives, the rotation of the new logo primitive was very similar to the previous ldraw design. Scaling and translating the offset was enough to map it.
https://drive.google.com/file/d/1tVOkb6MAf34x0hNqrxr8UImi494x5QrO/view?usp=sharing
I think, the sticker 6074343j does not have a defined orientation, because it needs to be applied manually to the part, hopefully matching the original classic space logo.
https://drive.google.com/file/d/1tVOkb6MAf34x0hNqrxr8UImi494x5QrO/view?usp=sharing
I think, the sticker 6074343j does not have a defined orientation, because it needs to be applied manually to the part, hopefully matching the original classic space logo.
2026-04-12 02:27:55
I probably haven't seen the whole story behind this wave of redesigns, but be wary when assuming a seemingly "identical" logo hasn't changed over 10+ years...
2026-04-12 02:29:11
On a second note, now that it's being redesigned anyways, should the re-release version from ca. 2006-2012 be added (with a more centered logo)?
Adapted vertices to updated logo primitives.
Vertex mismatches to both logo and torso:
2 5 14.345 2 -10 14.354 2 -10
2 5 12.21 7.25 -10 12.21 7.25 -10
2 5 14.345 2 -10 14.354 2 -10
2 5 12.21 7.25 -10 12.21 7.25 -10
Fixed vertex mismatches
2026-05-26 15:16:08
Creative Commons Attribution License information
This part is copyright ©
Chris Dee
Licensed under
CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Willy Tschager, Steffen, Magnus Forsberg, Orion Pobursky, Jens Brühl
I'm working on the sticker 6074343j, but the logo prims doesn't fit.
