Unofficial File parts/6142617q.dat
Part Attributes:
File Header:

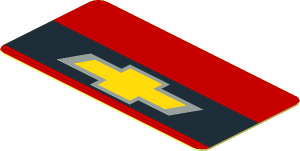

0 Sticker 0.9 x 1.8 with Chevrolet Logo on Black Stripe on Red Background
0 Name: 6142617q.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Bricklink 75874stk01a, Brickowl 960672, Camaro, Chevrolet, Drag
0 !KEYWORDS Race, Rebrickable 24758, Set 75874, Speed Champions, SS
0 !HISTORY 2024-09-30 [OrionP] Official Update 2024-08
0 !HISTORY 2026-04-17 [Sirio] Introduced stickerback and adapted top face
Show contents
0 // Stickerback
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\stickerback009x018.dat
0 // Logo primitives
1 0 0 -.25 -3.5 .76 0 0 0 1 0 0 0 .76 logo-chevrolet-icon.dat
1 0 0 -.25 -3.5 .76 0 0 0 1 0 0 0 .76 logo-chevrolet-icon-box.dat
0 // Primitives
1 4 -16.5 -.25 7.5 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 4 16.5 -.25 7.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 4 -16.5 -.25 -7.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 4 16.5 -.25 -7.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
0 // Top face
0 // Black faces
4 0 -18 -.25 1 -3.5007 -.25 .015 3.5007 -.25 .015 18 -.25 1
3 0 -18 -.25 1 -10.83 -.25 .015 -3.5007 -.25 .015
4 0 -18 -.25 1 -18 -.25 -7.5 -10.83 -.25 -5.541 -10.83 -.25 .015
3 0 18 -.25 1 3.5007 -.25 .015 10.83 -.25 .015
3 0 18 -.25 1 10.83 -.25 .015 10.83 -.25 -1.459
4 0 18 -.25 1 10.83 -.25 -1.459 10.83 -.25 -7.015 18 -.25 -7.5
3 0 -18 -.25 -7.5 -10.83 -.25 -7.015 -10.83 -.25 -5.541
3 0 -18 -.25 -7.5 -3.5007 -.25 -7.015 -10.83 -.25 -7.015
3 0 18 -.25 -7.5 10.83 -.25 -7.015 3.5007 -.25 -7.015
4 0 18 -.25 -7.5 3.5007 -.25 -7.015 -3.5007 -.25 -7.015 -18 -.25 -7.5
0 // Red faces
4 4 -18 -.25 7.5 18 -.25 7.5 16.5 -.25 9 -16.5 -.25 9
4 4 -18 -.25 7.5 -18 -.25 1 18 -.25 1 18 -.25 7.5
4 4 -18 -.25 -7.5 -16.5 -.25 -9 16.5 -.25 -9 18 -.25 -7.5
Status:
Needs 2 More Votes (F)
This part has the following automated holds from the Parts Tracker
-
Has uncertified subfiles
Current Votes:
None
