Unofficial File parts/6141875h.dat
Part Attributes:
File Header:

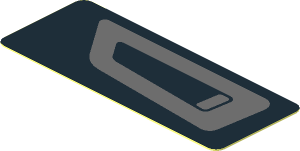

0 Sticker 0.8 x 2.0 with Dark Bluish Grey Air Vent on Black Background Right
0 Name: 6141875h.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Unofficial_Part
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Sticker
0 !KEYWORDS Bricklink 75875stk01, Brickowl 63567, F-150, Ford, Raptor
0 !KEYWORDS Rebrickable 24760, Set 75875, Speed Champions
0 !HISTORY 2022-12-20 [PTadmin] Official Update 2022-06
0 !HISTORY 2026-04-24 [Sirio] Introduced stickerback, adapted top face and modified geometry of air vent
Show contents
0 // Stickerback
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\stickerback008x020.dat
0 // Primitives
1 0 -18.5 -.25 6.5 -1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 0 18.5 -.25 6.5 1.5 0 0 0 1 0 0 0 1.5 1-4chrd.dat
1 0 -18.5 -.25 -6.5 -1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 0 18.5 -.25 -6.5 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 0 -13.5 -.25 5.35 0 0 -.8 0 1 0 .8 0 0 3-8ndis.dat
1 72 -13.5 -.25 5.35 0 0 -.8 0 1 0 .8 0 0 3-8chrd.dat
1 0 14.8 -.25 4.15 2 0 0 0 1 0 0 0 2 1-4ndis.dat
1 72 14.8 -.25 4.15 2 0 0 0 1 0 0 0 2 1-4chrd.dat
1 72 14.6 -.25 -3.75 1.5 0 0 0 1 0 0 0 -1.5 1-4chrd.dat
1 0 14.6 -.25 -3.75 1.5 0 0 0 1 0 0 0 -1.5 1-4ndis.dat
1 72 -8.2655 -.25 2.85 0 0 -.5 0 1 0 .5 0 0 3-8ndis.dat
1 0 -8.2655 -.25 2.85 0 0 -.5 0 1 0 .5 0 0 3-8chrd.dat
1 0 10.3231 -.25 2.25 -.5 0 0 0 1 0 0 0 .5 1-4ndis.dat
1 72 10.3231 -.25 2.25 -.5 0 0 0 1 0 0 0 .5 1-4chrd.dat
1 72 11.3271 -.25 2.35 0 0 1 0 1 0 1 0 0 3-16ndis.dat
1 0 11.3271 -.25 2.35 0 0 .5 0 1 0 .5 0 0 3-16ring1.dat
1 72 11.3271 -.25 2.35 0 0 .5 0 1 0 .5 0 0 3-16chrd.dat
1 72 10.0345 -.25 -.8 -.5 0 0 0 1 0 0 0 -.5 1-4chrd.dat
1 0 10.0345 -.25 -.8 -.5 0 0 0 1 0 0 0 -.5 1-4ndis.dat
1 72 11.0317 -.25 -.9734 0 0 .5 0 1 0 -.5 0 0 3-16chrd.dat
1 0 11.0317 -.25 -.9734 0 0 .5 0 1 0 -.5 0 0 3-16ring1.dat
1 72 11.0317 -.25 -.9734 0 0 1 0 1 0 -1 0 0 3-16ndis.dat
0 // Top face
0 // Inner black faces
4 0 9.8231 -.25 2.75 10.3231 -.25 2.75 11.3271 -.25 2.85 11.3271 -.25 3.35
4 0 9.8231 -.25 2.75 11.3271 -.25 3.35 -8.2655 -.25 3.35 -8.6191 -.25 2.4965
4 0 9.8231 -.25 2.75 -8.6191 -.25 2.4965 -6.7956 -.25 .0442 9.8231 -.25 2.25
4 0 -6.7956 -.25 .0442 9.9326 -.25 1.2035 9.9 -.25 1.729 9.8231 -.25 2.25
4 0 -6.7956 -.25 .0442 -6.4035 -.25 -.3495 9.9098 -.25 .6774 9.9326 -.25 1.2035
3 0 -6.4035 -.25 -.3495 9.8317 -.25 .1566 9.9098 -.25 .6774
4 0 -6.4035 -.25 -.3495 9.5345 -.25 -.8 9.6994 -.25 -.3531 9.8317 -.25 .1566
4 0 9.5345 -.25 -1.3 9.5345 -.25 -.8 -6.4035 -.25 -.3495 -5.9166 -.25 -.6171
4 0 9.5345 -.25 -1.3 -5.9166 -.25 -.6171 -5.3741 -.25 -.7371 11.0317 -.25 -1.9734
4 0 9.5345 -.25 -1.3 11.0317 -.25 -1.9734 11.0317 -.25 -1.4734 10.0345 -.25 -1.3
4 0 11.9194 -.25 1.9232 12.402 -.25 2.0524 12.251 -.25 2.7327 11.7891 -.25 2.5414
4 0 11.9194 -.25 1.9232 11.9779 -.25 1.2942 12.4731 -.25 1.3591 12.402 -.25 2.0524
4 0 11.964 -.25 .6626 12.4633 -.25 .6623 12.4731 -.25 1.3591 11.9779 -.25 1.2942
4 0 11.964 -.25 .6626 11.8777 -.25 .0368 12.3728 -.25 -.0287 12.4633 -.25 .6623
4 0 11.7202 -.25 -.575 12.2028 -.25 -.7045 12.3728 -.25 -.0287 11.8777 -.25 .0368
4 0 11.7202 -.25 -.575 11.4937 -.25 -1.1648 11.9556 -.25 -1.3561 12.2028 -.25 -.7045
0 // Outer black faces
4 0 -18.5 -.25 8 -20 -.25 6.5 -14.3 -.25 5.35 -14.3 -.25 6.15
3 0 -18.5 -.25 8 -14.3 -.25 6.15 -13.5 -.25 6.15
4 0 -18.5 -.25 8 -13.5 -.25 6.15 14.8 -.25 6.15 18.5 -.25 8
3 0 18.5 -.25 8 14.8 -.25 6.15 16.8 -.25 6.15
4 0 18.5 -.25 8 16.8 -.25 6.15 16.8 -.25 4.15 20 -.25 6.5
4 0 -20 -.25 -6.5 -14.3 -.25 4.55 -14.3 -.25 5.35 -20 -.25 6.5
4 0 -20 -.25 -6.5 -9.2 -.25 -1.75 -14.0657 -.25 4.7843 -14.3 -.25 4.55
3 0 -20 -.25 -6.5 -8.4812 -.25 -2.5248 -9.2 -.25 -1.75
3 0 -20 -.25 -6.5 -7.6146 -.25 -3.1297 -8.4812 -.25 -2.5248
4 0 -20 -.25 -6.5 -18.5 -.25 -8 -6.6394 -.25 -3.5372 -7.6146 -.25 -3.1297
3 0 -18.5 -.25 -8 -5.6 -.25 -3.7286 -6.6394 -.25 -3.5372
4 0 -18.5 -.25 -8 18.5 -.25 -8 14.6 -.25 -5.25 -5.6 -.25 -3.7286
4 0 20 -.25 -6.5 20 -.25 6.5 16.8 -.25 4.15 16.1 -.25 -3.75
4 0 20 -.25 -6.5 16.1 -.25 -3.75 16.1 -.25 -5.25 18.5 -.25 -8
3 0 18.5 -.25 -8 16.1 -.25 -5.25 14.6 -.25 -5.25
0 // Inner dark grey faces
4 72 9.8231 -.25 2.25 11.7891 -.25 2.5414 11.3271 -.25 2.85 10.3231 -.25 2.75
4 72 9.8231 -.25 2.25 9.9 -.25 1.729 11.9194 -.25 1.9232 11.7891 -.25 2.5414
4 72 9.9326 -.25 1.2035 11.9779 -.25 1.2942 11.9194 -.25 1.9232 9.9 -.25 1.729
4 72 9.9326 -.25 1.2035 9.9098 -.25 .6774 11.964 -.25 .6626 11.9779 -.25 1.2942
4 72 9.8317 -.25 .1566 11.8777 -.25 .0368 11.964 -.25 .6626 9.9098 -.25 .6774
4 72 9.8317 -.25 .1566 9.6994 -.25 -.3531 11.7202 -.25 -.575 11.8777 -.25 .0368
4 72 9.5345 -.25 -.8 11.4937 -.25 -1.1648 11.7202 -.25 -.575 9.6994 -.25 -.3531
4 72 9.5345 -.25 -.8 10.0345 -.25 -1.3 11.0317 -.25 -1.4734 11.4937 -.25 -1.1648
0 // Outer dark grey faces
4 72 -13.5 -.25 6.15 -14.0657 -.25 4.7843 -8.7655 -.25 2.85 -8.7655 -.25 3.35
3 72 -13.5 -.25 6.15 -8.7655 -.25 3.35 -8.2655 -.25 3.35
4 72 -13.5 -.25 6.15 -8.2655 -.25 3.35 11.3271 -.25 3.35 14.8 -.25 6.15
3 72 14.8 -.25 6.15 11.3271 -.25 3.35 12.3271 -.25 3.35
4 72 14.8 -.25 6.15 12.3271 -.25 3.35 12.251 -.25 2.7327 16.8 -.25 4.15
3 72 -14.0657 -.25 4.7843 -8.7655 -.25 2.35 -8.7655 -.25 2.85
4 72 -14.0657 -.25 4.7843 -9.2 -.25 -1.75 -6.7956 -.25 .0442 -8.7655 -.25 2.35
3 72 16.8 -.25 4.15 12.251 -.25 2.7327 12.402 -.25 2.0524
3 72 16.8 -.25 4.15 12.402 -.25 2.0524 12.4731 -.25 1.3591
3 72 16.8 -.25 4.15 12.4731 -.25 1.3591 12.4633 -.25 .6623
4 72 16.8 -.25 4.15 12.4633 -.25 .6623 12.3728 -.25 -.0287 16.1 -.25 -3.75
3 72 -6.7956 -.25 .0442 -8.6191 -.25 2.4965 -8.7655 -.25 2.35
4 72 -6.7956 -.25 .0442 -9.2 -.25 -1.75 -8.4812 -.25 -2.5248 -6.4035 -.25 -.3495
4 72 -5.9166 -.25 -.6171 -6.4035 -.25 -.3495 -8.4812 -.25 -2.5248 -7.6146 -.25 -3.1297
4 72 -5.9166 -.25 -.6171 -7.6146 -.25 -3.1297 -6.6394 -.25 -3.5372 -5.3741 -.25 -.7371
4 72 11.0317 -.25 -1.9734 -5.3741 -.25 -.7371 -6.6394 -.25 -3.5372 -5.6 -.25 -3.7286
4 72 11.0317 -.25 -1.9734 -5.6 -.25 -3.7286 14.6 -.25 -5.25 12.0317 -.25 -1.9734
4 72 14.6 -.25 -5.25 16.1 -.25 -3.75 12.3728 -.25 -.0287 12.2028 -.25 -.7045
4 72 14.6 -.25 -5.25 12.2028 -.25 -.7045 11.9556 -.25 -1.3561 12.0317 -.25 -1.9734
Status:
Needs 2 More Votes (F)
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
Massimo Maso [Sirio]
initially submitted the part.
2026-04-23 23:48:31
Takeshi Takahashi [RainbowDolphin]
posted a vote of Certify
2026-05-27 14:09:57
Chris Böhnke [KnightOfTarenta]
made the following comment.
2026-05-27 17:39:55
The small grey box in the inside should actually be curved (same goes for the border covering it).
Magnus Forsberg [MagFors]
posted a vote of Certify
2026-08-27 21:02:11
Magnus Forsberg [MagFors]
posted a vote of Hold
2026-08-29 17:01:06
I agree. The little shape inside the frame is curved.
Massimo Maso [Sirio]
submitted a new version of the part (all votes reset).
2026-09-07 22:32:25
Changed geometry of airvent.
