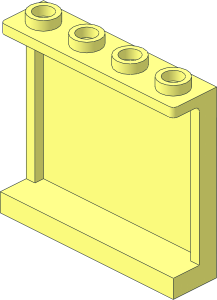

0 ~Panel 1 x 4 x 3 Reinforced without Front Face
0 Name: s\60581s01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2009-10-13 {LEGO Universe Team} Original part shape
0 !HISTORY 2019-01-25 [Philo] Subparted from Rolf Osterthun initial design
0 !HISTORY 2019-09-09 [PTadmin] Official Update 2019-02
0 !HISTORY 2026-04-28 [Blechtaler] adapted from 87544s01 (with rounded top corners)
Show contents
0 // bottom
1 16 0 68 0 1 0 0 0 -1 0 0 0 1 stug3-1x3.dat
0 BFC INVERTNEXT
1 16 0 72 0 36 0 0 0 -4 0 0 0 6 box5.dat
1 16 0 72 0 40 0 0 0 1 0 0 0 -10 recte3.dat
1 16 0 64 -4 40 0 0 0 1 0 0 0 -6 recte3.dat
1 16 0 68 -10 0 0 40 4 0 0 0 1 0 rect2p.dat
4 16 40 72 10 36 72 6 -36 72 6 -40 72 10
4 16 -40 72 10 -36 72 6 -36 72 -6 -40 72 -10
4 16 -40 72 -10 -36 72 -6 36 72 -6 40 72 -10
4 16 40 72 -10 36 72 -6 36 72 6 40 72 10
4 16 -40 72 10 -40 72 -10 -40 64 -10 -40 64 2
4 16 40 72 -10 40 72 10 40 64 2 40 64 -10
0 // inside
0 BFC INVERTNEXT
1 16 0 34 2 36 0 0 0 0 30 0 4.25 0 box3u4a.dat
1 16 0 4 1 0 0 36 0 -1 0 1 0 0 rect2p.dat
3 16 -40 64 -10 -36 64 2 -40 64 2
3 16 40 64 2 36 64 2 40 64 -10
4 16 -40 64 -10 40 64 -10 36 64 2 -36 64 2
4 16 -36 64 2 -36 64 6.25 -36 4 6.25 -36 6 2
4 16 36 6 2 36 4 6.25 36 64 6.25 36 64 2
3 16 -36 4 6.25 -36 4 2 -36 6 2
3 16 36 6 2 36 4 2 36 4 6.25
0 // reinforcements
0 BFC INVERTNEXT
1 16 -40 6 0 0 4 0 -2 0 0 0 0 2 1-4cylo.dat
1 16 -40 6 0 0 1 0 -2 0 0 0 0 2 1-4ndis.dat
1 16 -36 6 0 0 -1 0 -2 0 0 0 0 2 1-4ndis.dat
0 BFC INVERTNEXT
1 16 36 6 0 0 4 0 -2 0 0 0 0 2 1-4cylo.dat
1 16 36 6 0 0 1 0 -2 0 0 0 0 2 1-4ndis.dat
1 16 40 6 0 0 -1 0 -2 0 0 0 0 2 1-4ndis.dat
1 16 -38 35 2 2 0 0 0 0 29 0 1 0 rect3.dat
1 16 38 35 2 2 0 0 0 0 29 0 1 0 rect3.dat
1 16 0 36 10 40 0 0 0 0 36 0 1 0 recte3.dat
4 16 -40 72 10 -40 64 2 -40 6 2 -40 0 10
4 16 40 64 2 40 72 10 40 0 10 40 6 2
3 16 -40 6 2 -40 4 2 -40 0 10
3 16 -40 0 10 -40 4 2 -40 4 0
3 16 40 0 10 40 4 2 40 6 2
3 16 40 4 0 40 4 2 40 0 10
0 // top
1 16 -38 0 -8 -2 0 0 0 4 0 0 0 -2 1-4cylo.dat
1 16 -38 0 -8 -2 0 0 0 1 0 0 0 -2 1-4chrd.dat
1 16 -38 4 -8 -2 0 0 0 -1 0 0 0 -2 1-4chrd.dat
1 16 38 0 -8 2 0 0 0 4 0 0 0 -2 1-4cylo.dat
1 16 38 0 -8 2 0 0 0 1 0 0 0 -2 1-4chrd.dat
1 16 38 4 -8 2 0 0 0 -1 0 0 0 -2 1-4chrd.dat
1 16 0 2 -10 38 0 0 0 0 2 0 1 0 rect2p.dat
1 16 0 0 1 40 0 0 0 1 0 0 0 9 rect3.dat
4 16 -40 4 0 -36 4 0 -38 4 -10 -40 4 -8
4 16 40 4 -8 38 4 -10 36 4 0 40 4 0
4 16 36 4 0 38 4 -10 -38 4 -10 -36 4 0
2 24 -40 4 -8 -40 4 0
2 24 40 4 -8 40 4 0
4 16 -40 4 0 -40 4 -8 -40 0 -8 -40 0 10
4 16 40 4 -8 40 4 0 40 0 10 40 0 -8
4 16 38 0 -10 40 0 -8 -40 0 -8 -38 0 -10
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug2-1x4.dat
Status:
Errors Found (HF)
Current Votes:
| User | Vote |
|---|---|
| Blechtaler | Hold |
Official parents and subparts
Part Events:
Archived Part Events:
2026-04-28 21:03:44
Header Edits
description:
~Panel 1 x 4 x 3 with Side Flanges without Front
to
~Panel 1 x 4 x 3 with Side Flanges without Front Face
2026-04-28 22:48:03
Header Edits
description:
~Panel 1 x 4 x 3 with Side Flanges without Front Face
to
~Panel 1 x 4 x 3 Reinforced without Front Face
corrected author to Philo (was bugged)
2026-05-09 20:45:29
2026-05-10 02:56:35
2026-05-11 16:22:47
(should be in the same release as all reworked sticker shortcuts)
This need to be changed instead of all the shortcuts. Somewhere someone have made model with a different sticker. The geometry cant be changed like this, move the inner wall.
2026-05-12 08:43:14
no, the inside at z=6 is now the same as all other panels (this one was off)
it now also has the same usual wall thickness of 4 LDU
it is now much more in line to the other panels
4x2 s\14718s01.dat
2x2 s\87552s01.dat
2x3 s\87544s01.dat
it now also has the same usual wall thickness of 4 LDU
it is now much more in line to the other panels
4x2 s\14718s01.dat
2x2 s\87552s01.dat
2x3 s\87544s01.dat
2026-05-12 15:03:32
It doesn't matter. You have changed the geometry of a official file.
Indeed Magnus is right, I did not had this in mind when reviewing but, as per the specs:
"Occasionally a part is included with geometry that is not quite correct or the part number itself is incorrect. In this instance, in order to preserve backward compatibility, when a corrected part is made, it's part number will follow these rules and the non-alpha suffix part will be made obsolete."
If you want to update geometry of 60581 which is already official you must submit a new 60581a with updated patterns 60581apxx and shortcuts 60581adxx and obsolete 60581 as well as already official patterns 60581pxx and shortcuts 60581dxx
"Occasionally a part is included with geometry that is not quite correct or the part number itself is incorrect. In this instance, in order to preserve backward compatibility, when a corrected part is made, it's part number will follow these rules and the non-alpha suffix part will be made obsolete."
If you want to update geometry of 60581 which is already official you must submit a new 60581a with updated patterns 60581apxx and shortcuts 60581adxx and obsolete 60581 as well as already official patterns 60581pxx and shortcuts 60581dxx
2026-05-13 06:41:30
Only patterns and shortcuts that are not yet official can be renamed and updated
2026-05-13 07:35:01
Updating to round corners won't impact compatibility. Let's keep things simple and keep the original wall thickness so we don't have to mess up with those pesky obsoletizations that cause major compatibility issues with inventory sources.
2026-05-13 08:47:51
I am with philo, obsoleting this due to the wall thickness is not worth the impact this has on the library and compatibility
2026-05-14 21:45:13
Please move the backwall back to the old position.
inside back to 6.25
although this is now still the wrong position, all other panels have 4 LDU wall thickness (even on this part all other surfaces are 4 ldu apart)
2026-05-30 08:08:45
That is not a valid reason for a Hold vote.
2026-06-13 15:55:25
That is not a valid reason for a Hold vote.
Creative Commons Attribution License information
This part is copyright ©
Philippe Hurbain
Licensed under
CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Rene Rechthaler
all have the top studs included in the subpart (seems to be a relic from the old one which had both variants)
