Unofficial File parts/s/87544s01.dat
File Header:

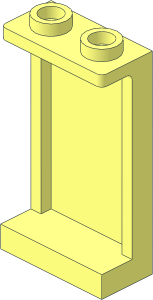

0 ~Panel 1 x 2 x 3 Reinforced without Front Face
0 Name: s\87544s01.dat
0 Author: Rene Rechthaler [Blechtaler]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03
0 !HISTORY 2011-08-01 [tchang] Add rounded corners on top, more primitives
0 !HISTORY 2011-12-29 [PTadmin] Official Update 2011-02
0 !HISTORY 2026-04-28 [Blechtaler] complete rework based on 87552s01, original by [Brickaneer]
Show contents
0 // bottom
1 16 0 68 0 1 0 0 0 -1 0 0 0 1 stud3.dat
0 BFC INVERTNEXT
1 16 0 72 0 16 0 0 0 -4 0 0 0 6 box5.dat
1 16 0 72 0 20 0 0 0 1 0 0 0 -10 recte3.dat
1 16 0 64 -4 20 0 0 0 1 0 0 0 -6 recte3.dat
1 16 0 68 -10 0 0 20 4 0 0 0 1 0 rect2p.dat
4 16 20 72 10 16 72 6 -16 72 6 -20 72 10
4 16 -20 72 10 -16 72 6 -16 72 -6 -20 72 -10
4 16 -20 72 -10 -16 72 -6 16 72 -6 20 72 -10
4 16 20 72 -10 16 72 -6 16 72 6 20 72 10
4 16 -20 72 10 -20 72 -10 -20 64 -10 -20 64 2
4 16 20 72 -10 20 72 10 20 64 2 20 64 -10
0 // inside
0 BFC INVERTNEXT
1 16 0 34 2 16 0 0 0 0 30 0 4 0 box3u4a.dat
1 16 0 4 1 0 0 16 0 -1 0 1 0 0 rect2p.dat
3 16 -20 64 -10 -16 64 2 -20 64 2
3 16 20 64 2 16 64 2 20 64 -10
4 16 -20 64 -10 20 64 -10 16 64 2 -16 64 2
4 16 -16 64 2 -16 64 6 -16 4 6 -16 6 2
4 16 16 6 2 16 4 6 16 64 6 16 64 2
3 16 -16 4 6 -16 4 2 -16 6 2
3 16 16 6 2 16 4 2 16 4 6
0 // reinforcements
0 BFC INVERTNEXT
1 16 -20 6 0 0 4 0 -2 0 0 0 0 2 1-4cylo.dat
1 16 -20 6 0 0 1 0 -2 0 0 0 0 2 1-4ndis.dat
1 16 -16 6 0 0 -1 0 -2 0 0 0 0 2 1-4ndis.dat
0 BFC INVERTNEXT
1 16 16 6 0 0 4 0 -2 0 0 0 0 2 1-4cylo.dat
1 16 16 6 0 0 1 0 -2 0 0 0 0 2 1-4ndis.dat
1 16 20 6 0 0 -1 0 -2 0 0 0 0 2 1-4ndis.dat
1 16 -18 35 2 2 0 0 0 0 29 0 1 0 rect3.dat
1 16 18 35 2 2 0 0 0 0 29 0 1 0 rect3.dat
1 16 0 36 10 20 0 0 0 0 36 0 1 0 recte3.dat
4 16 -20 72 10 -20 64 2 -20 6 2 -20 0 10
4 16 20 64 2 20 72 10 20 0 10 20 6 2
3 16 -20 6 2 -20 4 2 -20 0 10
3 16 -20 0 10 -20 4 2 -20 4 0
3 16 20 0 10 20 4 2 20 6 2
3 16 20 4 0 20 4 2 20 0 10
0 // top
1 16 -18 0 -8 -2 0 0 0 4 0 0 0 -2 1-4cylo.dat
1 16 -18 0 -8 -2 0 0 0 1 0 0 0 -2 1-4chrd.dat
1 16 -18 4 -8 -2 0 0 0 -1 0 0 0 -2 1-4chrd.dat
1 16 18 0 -8 2 0 0 0 4 0 0 0 -2 1-4cylo.dat
1 16 18 0 -8 2 0 0 0 1 0 0 0 -2 1-4chrd.dat
1 16 18 4 -8 2 0 0 0 -1 0 0 0 -2 1-4chrd.dat
1 16 0 2 -10 18 0 0 0 0 2 0 1 0 rect2p.dat
1 16 0 0 1 20 0 0 0 1 0 0 0 9 rect3.dat
4 16 -20 4 0 -16 4 0 -18 4 -10 -20 4 -8
4 16 20 4 -8 18 4 -10 16 4 0 20 4 0
4 16 16 4 0 18 4 -10 -18 4 -10 -16 4 0
2 24 -20 4 -8 -20 4 0
2 24 20 4 -8 20 4 0
4 16 -20 4 0 -20 4 -8 -20 0 -8 -20 0 10
4 16 20 4 -8 20 4 0 20 0 10 20 0 -8
4 16 18 0 -10 20 0 -8 -20 0 -8 -18 0 -10
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug2-1x2.dat
Status:
Needs 2 More Votes (F)
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
Please do a complete rewrite.
2026-04-28 15:38:19
code is already copied in from 87552s01 and stretched, does that count? they were already very similar before (I guess the tchang edit from 2011 was the same, derived from 87552s01 or vice versa)
2026-04-28 18:20:46
It doesn't matter what has been done previously. You need to rewrite the part.
took author and license
2026-04-28 21:01:12
Header Edits
description:
~Panel 1 x 2 x 3 without Front Face and Studs
to
~Panel 1 x 2 x 3 without Front Face
2026-04-28 22:48:44
Header Edits
description:
~Panel 1 x 2 x 3 without Front Face
to
~Panel 1 x 2 x 3 Reinforced without Front Face
Creative Commons Attribution License information
This part is copyright ©
Rene Rechthaler
Licensed under
CC BY 4.0
Edits:
LDraw.org Parts Tracker,
J.C. Tchang
all have the top studs included in the subpart (seems to be a relic from the old one which had both variants)
