Unofficial File parts/s/87552s01.dat
File Header:

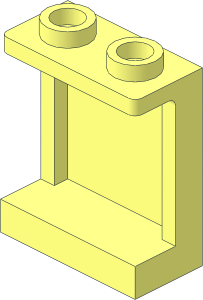

0 ~Panel 1 x 2 x 2 Reinforced without Front Face or Studs
0 Name: s\87552s01.dat
0 Author: J.C. Tchang [tchang]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2011-12-29 [PTadmin] Official Update 2011-02
0 !HISTORY 2026-04-28 [Blechtaler] moved studs here
Show contents
0 // bottom
1 16 0 44 0 1 0 0 0 -1 0 0 0 1 stud3.dat
0 BFC INVERTNEXT
1 16 0 48 0 16 0 0 0 -4 0 0 0 6 box5.dat
1 16 0 48 0 20 0 0 0 1 0 0 0 -10 recte3.dat
1 16 0 40 -4 20 0 0 0 1 0 0 0 -6 recte3.dat
1 16 0 44 -10 0 0 20 4 0 0 0 1 0 rect2p.dat
4 16 20 48 10 16 48 6 -16 48 6 -20 48 10
4 16 -20 48 10 -16 48 6 -16 48 -6 -20 48 -10
4 16 -20 48 -10 -16 48 -6 16 48 -6 20 48 -10
4 16 20 48 -10 16 48 -6 16 48 6 20 48 10
4 16 -20 48 10 -20 48 -10 -20 40 -10 -20 40 2
4 16 20 48 -10 20 48 10 20 40 2 20 40 -10
0 // inside
0 BFC INVERTNEXT
1 16 0 22 2 16 0 0 0 0 18 0 4 0 box3u4a.dat
1 16 0 4 1 0 0 16 0 -1 0 1 0 0 rect2p.dat
3 16 -20 40 -10 -16 40 2 -20 40 2
3 16 20 40 2 16 40 2 20 40 -10
4 16 -20 40 -10 20 40 -10 16 40 2 -16 40 2
4 16 -16 40 2 -16 40 6 -16 4 6 -16 6 2
4 16 16 6 2 16 4 6 16 40 6 16 40 2
3 16 -16 4 6 -16 4 2 -16 6 2
3 16 16 6 2 16 4 2 16 4 6
0 // reinforcements
0 BFC INVERTNEXT
1 16 -20 6 0 0 4 0 -2 0 0 0 0 2 1-4cylo.dat
1 16 -20 6 0 0 1 0 -2 0 0 0 0 2 1-4ndis.dat
1 16 -16 6 0 0 -1 0 -2 0 0 0 0 2 1-4ndis.dat
0 BFC INVERTNEXT
1 16 16 6 0 0 4 0 -2 0 0 0 0 2 1-4cylo.dat
1 16 16 6 0 0 1 0 -2 0 0 0 0 2 1-4ndis.dat
1 16 20 6 0 0 -1 0 -2 0 0 0 0 2 1-4ndis.dat
1 16 -18 23 2 2 0 0 0 0 17 0 1 0 rect3.dat
1 16 18 23 2 2 0 0 0 0 17 0 1 0 rect3.dat
1 16 0 24 10 20 0 0 0 0 24 0 1 0 recte3.dat
4 16 -20 48 10 -20 40 2 -20 6 2 -20 0 10
4 16 20 40 2 20 48 10 20 0 10 20 6 2
3 16 -20 6 2 -20 4 2 -20 0 10
3 16 -20 0 10 -20 4 2 -20 4 0
3 16 20 0 10 20 4 2 20 6 2
3 16 20 4 0 20 4 2 20 0 10
0 // top
1 16 -18 0 -8 -2 0 0 0 4 0 0 0 -2 1-4cylo.dat
1 16 -18 0 -8 -2 0 0 0 1 0 0 0 -2 1-4chrd.dat
1 16 -18 4 -8 -2 0 0 0 -1 0 0 0 -2 1-4chrd.dat
1 16 18 0 -8 2 0 0 0 4 0 0 0 -2 1-4cylo.dat
1 16 18 0 -8 2 0 0 0 1 0 0 0 -2 1-4chrd.dat
1 16 18 4 -8 2 0 0 0 -1 0 0 0 -2 1-4chrd.dat
1 16 0 2 -10 18 0 0 0 0 2 0 1 0 rect2p.dat
1 16 0 0 1 20 0 0 0 1 0 0 0 9 rect3.dat
4 16 -20 4 0 -16 4 0 -18 4 -10 -20 4 -8
4 16 20 4 -8 18 4 -10 16 4 0 20 4 0
4 16 16 4 0 18 4 -10 -18 4 -10 -16 4 0
2 24 -20 4 -8 -20 4 0
2 24 20 4 -8 20 4 0
4 16 -20 4 0 -20 4 -8 -20 0 -8 -20 0 10
4 16 20 4 -8 20 4 0 20 0 10 20 0 -8
4 16 18 0 -10 20 0 -8 -20 0 -8 -18 0 -10
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug2-1x2.dat
Status:
Needs 2 More Votes (F)
Current Votes:
None
Official parents and subparts
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright ©
J.C. Tchang
Licensed under
CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Rene Rechthaler
all have the top studs included in the subpart (seems to be a relic from the old one which had both variants)
