Unofficial File parts/s/8181s01.dat
File Header:

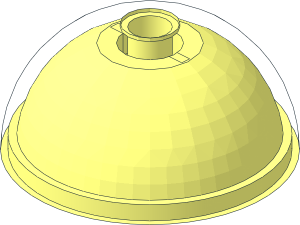

0 ~Technic Dome 4 x 4 x 2 with Pin Hole without Patternable Surfaces
0 Name: s\8181s01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
Show contents
1 16 0 -30 0 1 0 0 0 -1 0 0 0 1 connhol3.dat
1 16 0 -38 0 2 0 0 0 1 0 0 0 2 4-4ring3.dat
1 16 0 -20 0 9 0 0 0 -13 0 0 0 9 4-4cylo.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\8181s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\8181s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\8181s02.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\8181s02.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\8181s02.dat
1 16 0 0 0 0 0 1 0 1 0 1 0 0 s\8181s02.dat
1 16 0 0 0 0 0 -1 0 1 0 -1 0 0 s\8181s02.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\8181s02.dat
1 16 12 -29.5 0 0 -.125 1.375 0 2 -1.5 -1.5 0 0 box2-5.dat
3 16 8.7017 -26 1.5 10.5 -26 1.5 9 -26 0
4 16 10.5 -26 1.5 10.5 -26 -1.5 8.7017 -26 -1.5 9 -26 0
4 16 8.7017 -26 -1.5 10.5 -26 -1.5 13.25 -29 -1.5 13.5 -33 -1.5
3 16 8.7017 -33 -1.5 8.7017 -26 -1.5 13.5 -33 -1.5
3 16 8.7017 -26 1.5 8.7017 -33 1.5 13.5 -33 1.5
4 16 13.25 -29 1.5 10.5 -26 1.5 8.7017 -26 1.5 13.5 -33 1.5
2 24 9 -26 0 8.7017 -26 1.5
2 24 8.7017 -26 -1.5 9 -26 0
2 24 8.7017 -26 1.5 8.7017 -33 1.5
2 24 8.7017 -33 1.5 13.5 -33 1.5
2 24 10.5 -26 1.5 8.7017 -26 1.5
2 24 8.7017 -26 -1.5 10.5 -26 -1.5
2 24 8.7017 -26 -1.5 8.7017 -33 -1.5
2 24 8.7017 -33 -1.5 13.5 -33 -1.5
1 16 -12 -29.5 0 0 .125 -1.375 0 2 -1.5 -1.5 0 0 box2-5.dat
3 16 -10.5 -26 1.5 -8.7017 -26 1.5 -9 -26 0
4 16 -8.7017 -26 -1.5 -10.5 -26 -1.5 -10.5 -26 1.5 -9 -26 0
4 16 -13.25 -29 -1.5 -10.5 -26 -1.5 -8.7017 -26 -1.5 -13.5 -33 -1.5
3 16 -8.7017 -26 -1.5 -8.7017 -33 -1.5 -13.5 -33 -1.5
3 16 -8.7017 -33 1.5 -8.7017 -26 1.5 -13.5 -33 1.5
4 16 -8.7017 -26 1.5 -10.5 -26 1.5 -13.25 -29 1.5 -13.5 -33 1.5
2 24 -8.7017 -26 1.5 -9 -26 0
2 24 -9 -26 0 -8.7017 -26 -1.5
2 24 -8.7017 -33 1.5 -8.7017 -26 1.5
2 24 -13.5 -33 1.5 -8.7017 -33 1.5
2 24 -8.7017 -26 1.5 -10.5 -26 1.5
2 24 -10.5 -26 -1.5 -8.7017 -26 -1.5
2 24 -8.7017 -33 -1.5 -8.7017 -26 -1.5
2 24 -13.5 -33 -1.5 -8.7017 -33 -1.5
Status:
Needs 1 More Vote (CN)
This part has the following automated holds from the Parts Tracker
- No path of certified files to a certified or official parent in the parts folder
-
Has Uncertified Subfiles
Current Votes:
| User | Vote |
|---|---|
| Philo | Certify |
Official parents and subparts
Part Events:
Gerald Lasser [GeraldLasser]
initially submitted the part.
2026-05-02 14:54:28
Gerald Lasser [GeraldLasser]
made the following comment.
2026-05-02 14:54:47
I need to add two supports at the peghole
Gerald Lasser [GeraldLasser]
submitted a new version of the part (all votes reset).
2026-05-02 15:28:03
fillets added
Gerald Lasser [GeraldLasser]
submitted a new version of the part (all votes reset).
2026-05-02 23:30:45
reduced vertices on theouter and inner surfaces
Philippe Hurbain [Philo]
posted a vote of Certify
2026-05-03 13:58:17
