File Detail parts/s/7246s02.dat

Unofficial File parts/s/7246s02.dat

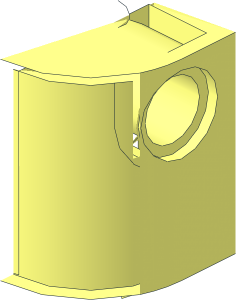

~Brick Round 2 x 2 x 2 Half Cylinder Extended Robot Body with 4 Studs on Back - Half

File Header:

0 ~Brick Round  2 x  2 x  2 Half Cylinder Extended Robot Body with 4 Studs on Back - Half
0 Name: s\7246s02.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Unofficial_Subpart
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

Show contents

4 16 2 18 12 2 2 12 20 0 12 20 40 12
2 24 2 18 12 2 18 0
0 BFC INVERTNEXT
1 16 2 10 0 0 16 0 6 0 0 0 0 6 4-4cylo.dat
1 16 2 10 0 0 1 0 6 0 0 0 0 6 2-4ndis.dat
1 16 2 10 0 0 1 0 2 0 0 0 0 -2 2-4ring3.dat
4 16 2 16 0 2 16 6 2 18 12 2 18 0
4 16 2 18 12 2 16 6 2 4 6 2 2 12
4 16 2 2 0 2 2 12 2 4 6 2 4 0
1 16 18 10 0 0 -1 0 2 0 0 0 0 -2 4-4ring3.dat
0 BFC INVERTNEXT
1 16 18 10 0 0 2 0 8 0 0 0 0 8 2-4cylo.dat
1 16 20 10 0 0 -1 0 8 0 0 0 0 8 2-4ndis.dat
4 16 20 0 12 20 2 8 20 18 8 20 40 12
2 24 20 0 0 20 0 12
2 24 20 40 0 20 40 12
4 16 20 0 12 20 0 0 20 2 0 20 2 8
4 16 20 18 8 20 18 0 20 40 0 20 40 12
1 16 0 0 0 0 0 20 0 1 0 -20 0 0 3-16chrd.dat
1 16 0 0 0 0 0 20 0 1 0 -20 0 0 3-16edge.dat
1 16 0 40 0 0 0 20 0 1 0 -20 0 0 3-16edge.dat
2 24 18.53 10 -7.5 18.72 6.94 -6.93
2 24 19.27 4.34 -5.3 19.78 2.61 -2.87
2 24 18.72 6.94 -6.93 19.27 4.34 -5.3
2 24 19.78 2.61 -2.87 20 2 0
2 24 19.27 0 -5.3 19.78 0 -2.87
2 24 18.478 0 -7.654 19.27 0 -5.3
2 24 19.78 0 -2.87 20 0 0
2 24 18 10 -7.5 18 6.94 -6.93
2 24 18 4.34 -5.3 18 2.61 -2.87
2 24 18 6.94 -6.93 18 4.34 -5.3
2 24 18 2.61 -2.87 18 2 0
4 16 19.78 2.61 -2.87 18 2.61 -2.87 18 2 0 20 2 0
4 16 18 2.61 -2.87 19.78 2.61 -2.87 19.27 4.34 -5.3 18 4.34 -5.3
4 16 18 6.94 -6.93 18 4.34 -5.3 19.27 4.34 -5.3 18.72 6.94 -6.93
4 16 18 10 -7.5 18 6.94 -6.93 18.72 6.94 -6.93 18.53 10 -7.5
4 16 20 0 0 19.78 0 -2.87 19.78 2.61 -2.87 20 2 0
4 16 19.78 0 -2.87 19.27 0 -5.3 19.27 4.34 -5.3 19.78 2.61 -2.87
4 16 19.27 4.34 -5.3 19.27 0 -5.3 18.478 0 -7.654 18.72 6.94 -6.93
3 16 18.53 10 -7.5 18.72 6.94 -6.93 18.478 0 -7.654
3 16 18.53 10 -7.5 18.478 0 -7.654 18.478 40 -7.654
2 24 18.72 13.06 -6.93 18.53 10 -7.5
2 24 19.78 17.39 -2.87 19.27 15.66 -5.3
2 24 19.27 15.66 -5.3 18.72 13.06 -6.93
2 24 20 18 0 19.78 17.39 -2.87
2 24 18 13.06 -6.93 18 10 -7.5
2 24 18 17.39 -2.87 18 15.66 -5.3
2 24 18 15.66 -5.3 18 13.06 -6.93
2 24 18 18 0 18 17.39 -2.87
4 16 18 18 0 18 17.39 -2.87 19.78 17.39 -2.87 20 18 0
4 16 19.27 15.66 -5.3 19.78 17.39 -2.87 18 17.39 -2.87 18 15.66 -5.3
4 16 19.27 15.66 -5.3 18 15.66 -5.3 18 13.06 -6.93 18.72 13.06 -6.93
4 16 18.72 13.06 -6.93 18 13.06 -6.93 18 10 -7.5 18.53 10 -7.5
4 16 19.78 17.39 -2.87 19.78 40 -2.87 20 40 0 20 18 0
4 16 19.27 15.66 -5.3 19.27 40 -5.3 19.78 40 -2.87 19.78 17.39 -2.87
4 16 18.478 40 -7.654 19.27 40 -5.3 19.27 15.66 -5.3 18.72 13.06 -6.93
3 16 18.72 13.06 -6.93 18.53 10 -7.5 18.478 40 -7.654
2 24 18.478 40 -7.654 19.27 40 -5.3
2 24 19.27 40 -5.3 19.78 40 -2.87
2 24 19.78 40 -2.87 20 40 0
5 24 19.27 4.34 -5.3 18 4.34 -5.3 18 2.61 -2.87 18.72 6.94 -6.93
5 24 18 13.06 -6.93 18.72 13.06 -6.93 19.27 15.66 -5.3 18 10 -7.5
5 24 19.27 40 -5.3 19.27 15.66 -5.3 19.78 40 -2.87 18.72 13.06 -6.93
5 24 19.78 17.39 -2.87 19.78 40 -2.87 20 40 0 19.27 15.66 -5.3
5 24 18 17.39 -2.87 19.78 17.39 -2.87 20 18 0 18 15.66 -5.3
5 24 18.53 10 -7.5 18 10 -7.5 18 6.94 -6.93 18.72 13.06 -6.93
5 24 19.27 0 -5.3 19.27 4.34 -5.3 19.78 2.61 -2.87 18.478 0 -7.654
5 24 19.27 15.66 -5.3 18 15.66 -5.3 19.78 17.39 -2.87 18 13.06 -6.93
5 24 20 0 0 20 2 0 20 2 8 19.78 0 -2.87
5 24 20 18 0 20 40 0 20 40 12 19.78 17.39 -2.87
5 24 18 2.61 -2.87 19.78 2.61 -2.87 18 2 0 19.27 4.34 -5.3
5 24 19.78 2.61 -2.87 19.78 0 -2.87 20 2 0 19.27 0 -5.3
5 24 18 6.94 -6.93 18.72 6.94 -6.93 18 4.34 -5.3 18.53 10 -7.5
2 24 4.24 0 8.6 17 0 8.6
1 16 17 10 0 0 -1 0 -10 0 0 0 0 10 3-16edge.dat
1 16 4.2426 10 0 0 -1 0 -9.2388 0 3.82683 3.82683 0 9.2388 1-8edge.dat
1 16 17 10 0 0 -12.7574 0 -10 0 0 0 0 10 3-16cyli.dat
1 16 0 0 0 0 0 6 0 1 0 6 0 0 1-8edge.dat
1 16 0 0 0 0 0 6 0 1.5 0 -6 0 0 1-8cyls2.dat
2 24 5.54 .46 2.3 6 0 0
2 24 4.52 .76 3.83 5.54 .46 2.3
2 24 4.52 .76 3.83 4.2426 1.0607 4.2426
2 24 4.2426 0 4.2426 4.2426 1.0607 4.2426
2 24 4.24 5.22 8.6 17 5.22 8.6
2 24 4.24 0 8.6 4.24 5.22 8.6
2 24 17 0 8.6 17 5.22 8.6
4 16 17 5.22 8.6 17 0 8.6 4.24 0 8.6 4.24 5.22 8.6
2 24 4.2426 0 4.2426 4.24 0 8.6
4 16 4.24 5.22 8.6 4.24 0 8.6 4.2426 0 4.2426 4.2426 1.0607 4.2426
3 16 17 5.22 8.6 17 0 0 17 0 8.6
2 24 17 0 0 17 0 8.6
4 16 17 0 8.6 17 0 0 20 0 0 20 0 12
4 16 4.2426 0 0 0 0 -20 18.478 0 -7.654 17 0 0
4 16 18.478 0 -7.654 19.27 0 -5.3 19.78 0 -2.87 17 0 0
3 16 19.78 0 -2.87 20 0 0 17 0 0
1 16 0 21 0 0 0 8 0 -5.7 0 8 0 0 1-4cyls2.dat
2 24 8 21 0 7.39 20.32 -3.06
2 24 5.66 18.6 -5.66 4.6 18.07 -6.36
2 24 4.6 18.07 -6.36 3.06 16.36 -7.39
2 24 7.14 20.24 -3.44 7.39 20.32 -3.06
2 24 7.14 20.24 -3.44 5.66 18.6 -5.66
2 24 0 15.3 -8 3.06 16.36 -7.39
1 16 0 21 0 0 0 8 0 -2.6 0 -8 0 0 1-4cyls2.dat
2 24 7.39 20.51 3.06 8 21 0
2 24 3.06 18.84 7.39 5.66 19.77 5.66
2 24 5.66 19.77 5.66 6.24 20.24 4.78
2 24 6.24 20.24 4.78 7.39 20.51 3.06
2 24 3.06 40 8.6 17.14 40 8.6
2 24 3.06 40 8.6 3.0616 40 7.3912
2 24 3.06 18.2 8.6 17.14 18.2 8.6
2 24 3.06 18.2 8.6 3.06 18.84 7.39
2 24 3.06 40 8.6 3.06 18.2 8.6
2 24 17.14 18.2 8.6 17.14 40 8.6
4 16 17.14 40 8.6 17.14 18.2 8.6 3.06 18.2 8.6 3.06 40 8.6
4 16 3.06 18.2 8.6 3.06 18.84 7.39 3.0616 40 7.3912 3.06 40 8.6
2 24 3.06 18.84 7.39 3.0616 40 7.3912
2 24 17.1429 40 0 17.14 40 8.6
4 16 20 40 0 17.1429 40 0 17.14 40 8.6 20 40 12
3 16 4.24 0 8.6 17 0 8.6 20 0 12
3 16 17.14 40 8.6 3.06 40 8.6 20 40 12
0 BFC INVERTNEXT
1 16 0 3 0 0 0 17.14286 0 37 0 -17.14286 0 0 3-16cylo.dat
1 16 0 3 0 0 0 17.14286 0 -1 0 -17.14286 0 0 3-16chrd.dat
0 BFC INVERTNEXT
1 16 0 40 0 17.14286 0 0 0 -23 0 0 0 -17.14286 1-16cyli.dat
1 16 0 40 0 17.14286 0 0 0 -1 0 0 0 -17.14286 1-16edge.dat
1 16 0 40 0 0 0 2.85714 0 -1 0 -2.85714 0 0 3-16ring6.dat
1 16 0 40 0 17.14286 0 0 0 -1 0 0 0 -17.14286 1-16tang.dat
4 16 18.478 40 -7.654 15.8383 40 -6.5606 17.1429 40 -3.4097 19.27 40 -5.3
4 16 19.78 40 -2.87 17.1429 40 -3.4097 17.1429 40 0 20 40 0
3 16 19.27 40 -5.3 17.1429 40 -3.4097 19.78 40 -2.87
2 24 14.21 11 -9 14.67 14.83 -8.32
2 24 14.67 14.83 -8.32 15.84 17.74 -6.56
2 24 16.46 20.24 -3.44 15.88 18.07 -6.36
2 24 16.46 20.24 -3.44 17.14 21 0
2 24 15.84 17.74 -6.56 15.88 18.07 -6.36
2 24 14.21 3 -9 14.21 11 -9
4 16 17.14 40 8.6 17.1429 40 0 17.1429 17 0 17.14 18.2 8.6
1 16 0 40 0 0 0 8 0 1 0 8 0 0 1-16edge.dat
2 24 19.6 40 -1 19.6 40 1
4 16 19.6 40 -1 7.8 47.8 -1 7.8 47.8 1 19.6 40 1
2 24 19.6 40 1 7.8 47.8 1
2 24 19.6 40 -1 7.8 47.8 -1
2 24 7.8 47.8 1 8 47.67 0
2 24 7.8 47.8 -1 8 47.67 0
2 24 7.8 20.84 1 17.14 20.84 1
2 24 7.8 20.78 -1 16.94 20.78 -1
4 16 7.8 20.84 1 17.14 20.84 1 19.6 40 1 7.8 47.8 1
4 16 19.6 40 -1 16.94 20.78 -1 7.8 20.78 -1 7.8 47.8 -1
2 24 7.8 20.78 -1 7.8 47.8 -1
2 24 7.8 47.8 1 7.8 20.84 1
2 24 19.6 40 -1 16.94 40 -1
2 24 19.6 40 1 17.14 40 1
2 24 16.94 20.78 -1 16.94 40 -1
2 24 17.14 40 1 17.14 20.84 1
2 24 1 39.8 -7.8 0 39.8 -8
2 24 1 39.8 -16.94 0 39.8 -17.14
2 24 1 39.8 -16.94 1 39.8 -7.8
2 24 1 3 -16.94 0 3 -17.1429
4 16 1 39.8 -7.8 1 3 -7.8 1 3 -16.94 1 39.8 -16.94
2 24 1 15.68 -7.8 1 14.83 -8.32
2 24 1 14.83 -8.32 1 11 -9
2 24 1 11 -9 1 3 -9
2 24 1 3 -16.94 1 3 -9
2 24 1 39.8 -16.94 1 3 -16.94
2 24 1 15.68 -7.8 1 39.8 -7.8
5 24 18.478 0 -7.654 18.478 40 -7.654 19.27 40 -5.3 14.142 40 -14.142

Status:

Needs 2 More Votes (N)

This part has the following warnings

Decimal precision exceeds library recommendation

Line 84: 1 16 4.2426 10 0 0 -1 0 -9.2388 0 3.82683 3.82683 0 9.2388 1-8edge.dat

Line 130: 1 16 0 3 0 0 0 17.14286 0 37 0 -17.14286 0 0 3-16cylo.dat

Line 131: 1 16 0 3 0 0 0 17.14286 0 -1 0 -17.14286 0 0 3-16chrd.dat

Line 133: 1 16 0 40 0 17.14286 0 0 0 -23 0 0 0 -17.14286 1-16cyli.dat

Line 134: 1 16 0 40 0 17.14286 0 0 0 -1 0 0 0 -17.14286 1-16edge.dat

Line 135: 1 16 0 40 0 0 0 2.85714 0 -1 0 -2.85714 0 0 3-16ring6.dat

Line 136: 1 16 0 40 0 17.14286 0 0 0 -1 0 0 0 -17.14286 1-16tang.dat
Number in description may need a leading space

This part has the following automated holds from the Parts Tracker

No path of certified files to a certified or official parent in the parts folder

Current Votes:

None

Official parents and subparts

Part Events:

Philippe Hurbain [Philo]

initially submitted the part.

2026-05-03 06:03:29

Magnus Forsberg [MagFors]

posted a vote of Hold.

2026-05-03 06:36:39

Gaps here:
0 !LPE VERTEX 18.48 40 -7.65
need to be 8.478 40 -7.654
and the same on the top surface
0 !LPE VERTEX 18.48 0 -7.65
need to be 8.478 0 -7.654

Philippe Hurbain [Philo]

submitted a new version of the part.

2026-05-03 07:12:58

Arghl! an excessive last minute rounding...
